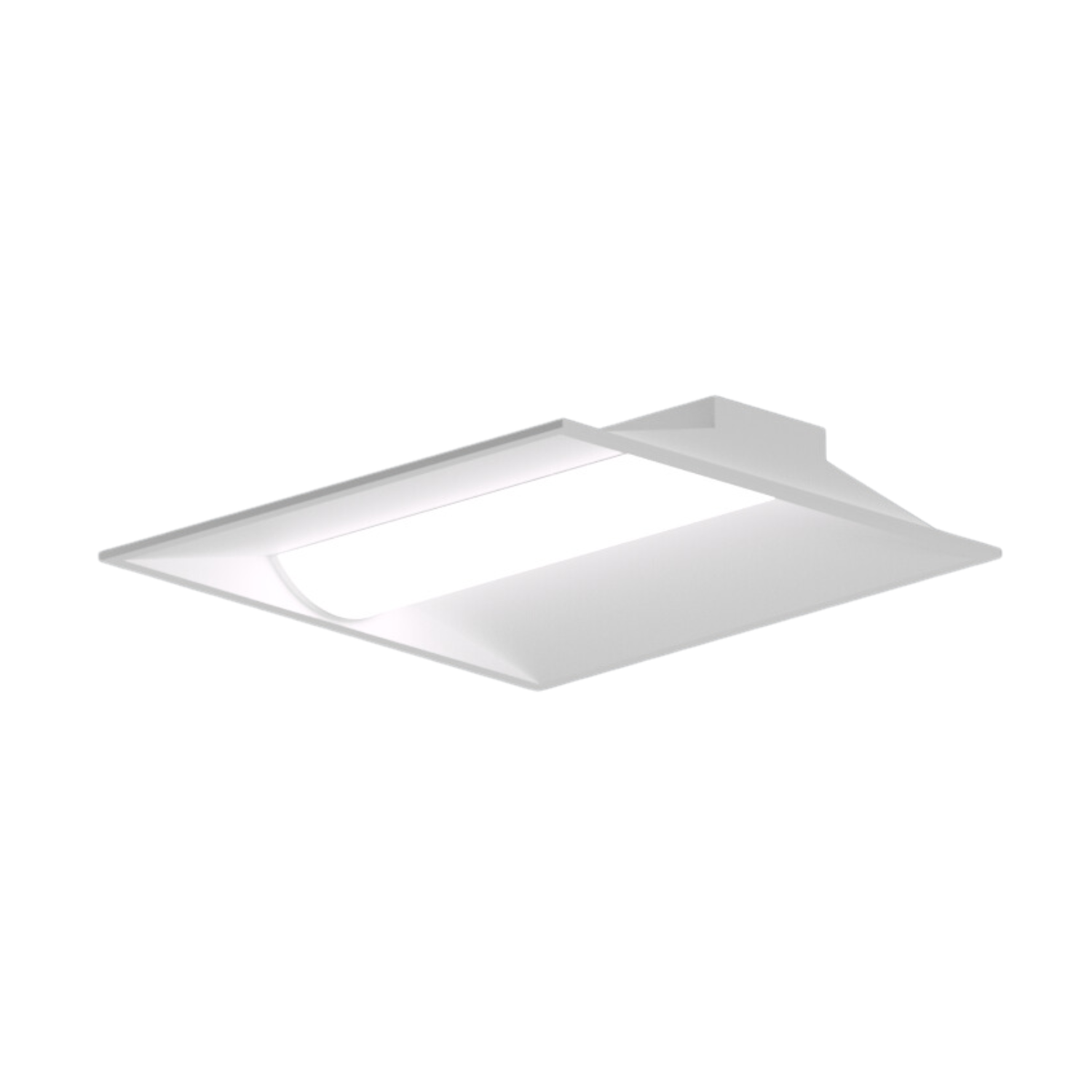

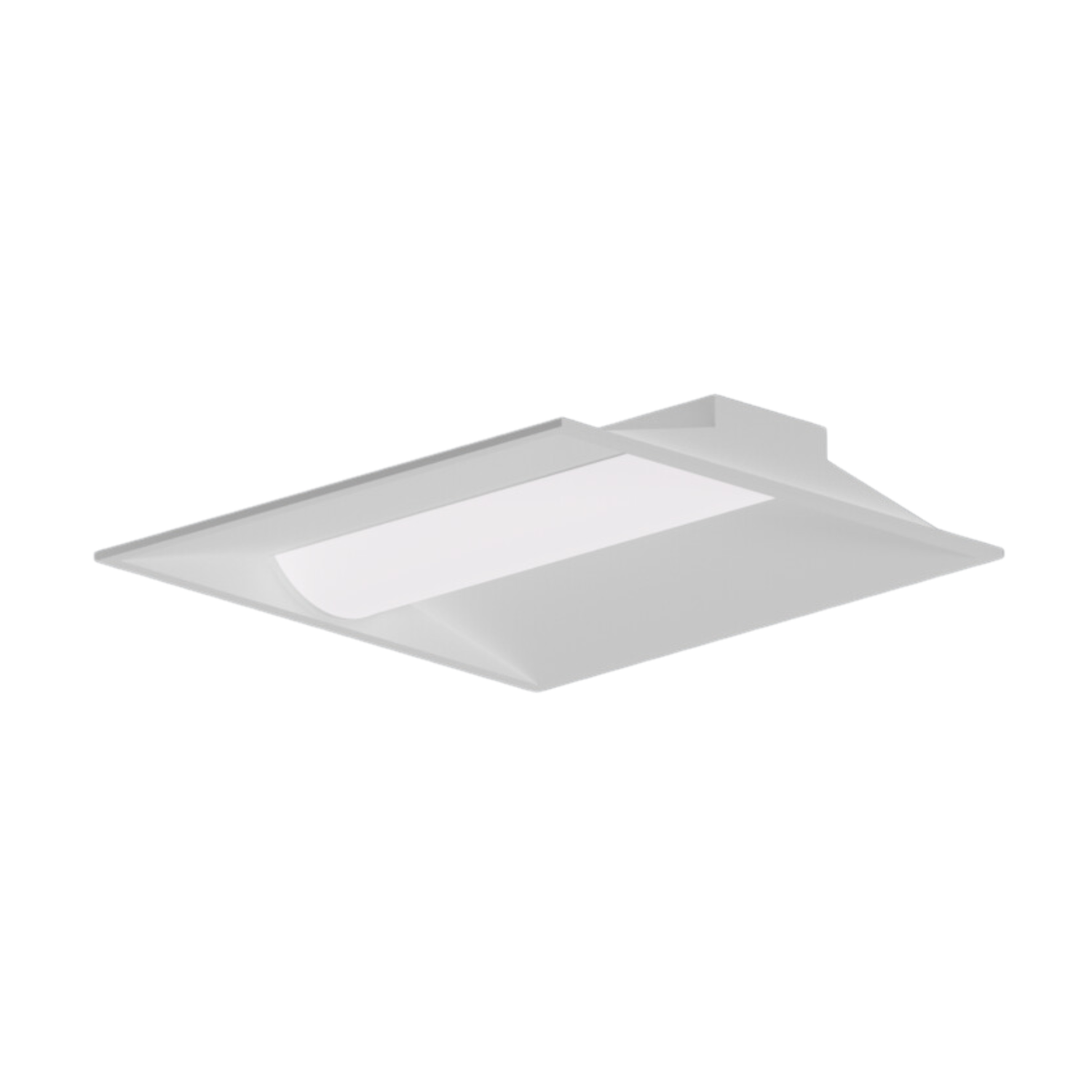

Soho-1 - Recessed Modular LED Panel (22-46W)

Datasheet Download

IES Files on request

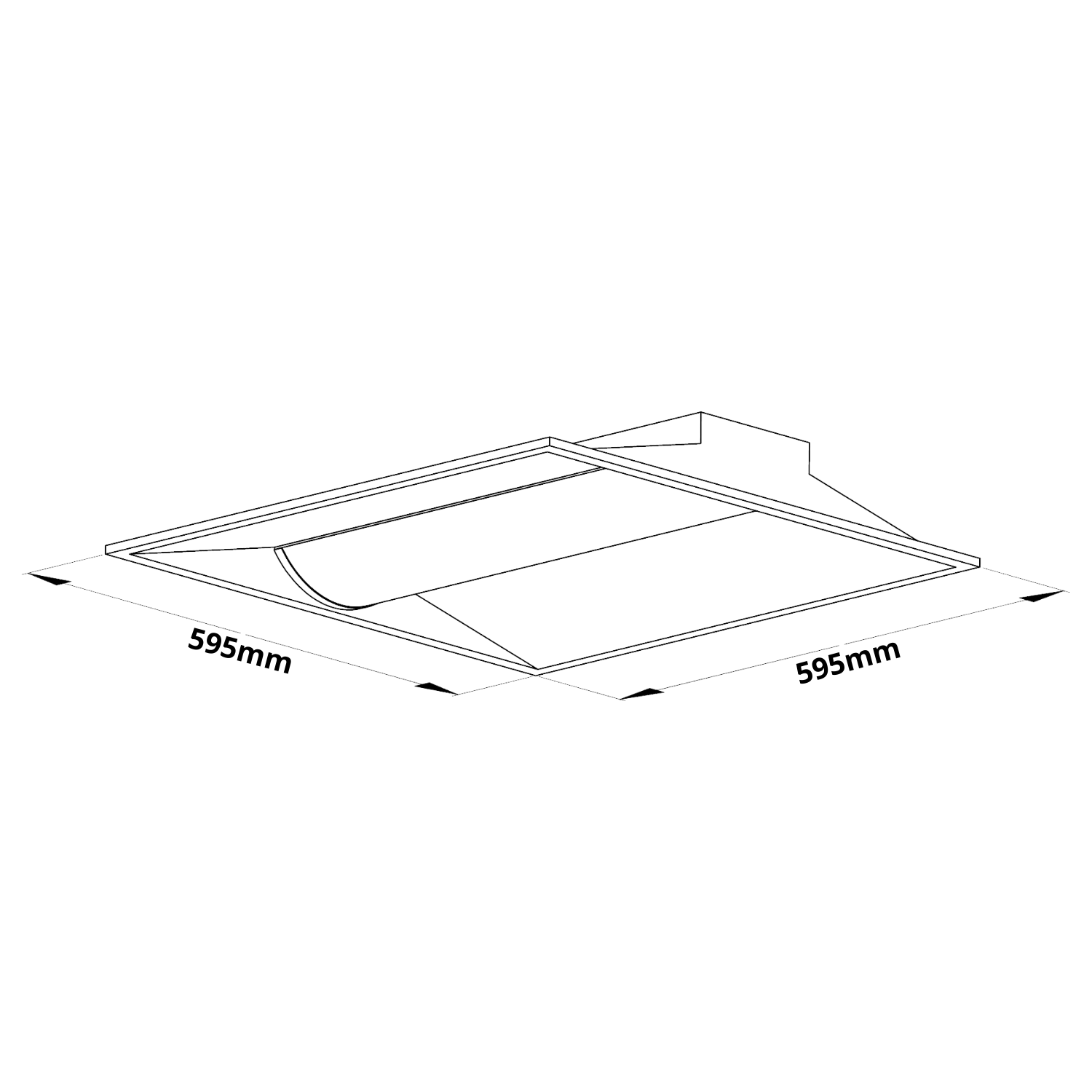

Mounting/Dimensions:

Drop-in ceiling
Length: 595mm
Width: 595mm

Performance/ Specifications:

Nominal Wattage: 22 - 46W
Nominal Lumens: 3,900 - 7,940lm
System Wattage: 24 - 50W
System Lumens: 3,120 - 6,350lm
CRI: ≥ 80
CCT: 3000K / 4000K / Tunable White / Other
MacAdams: ≤ 3 Step
Distributions: Diffused / Wide
IP: 20
Lumen Maintenance: L80/B10 @ 50 000hrs

Finish Option:

White/other

Additional Features:

Emergency: Remote 3hr EME kit
Control: DALI
Warranty: 5 Year (T’s & C’s apply)
