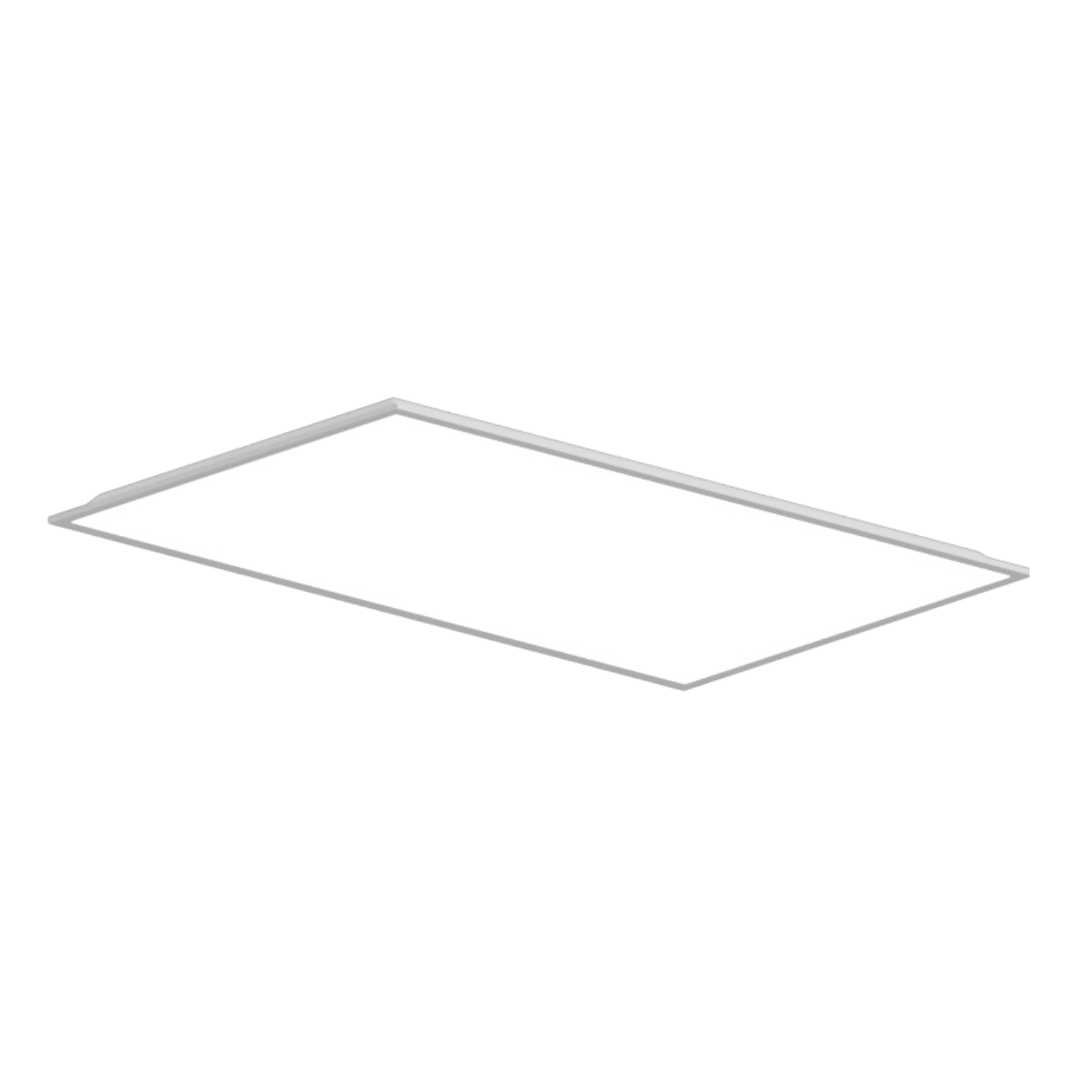

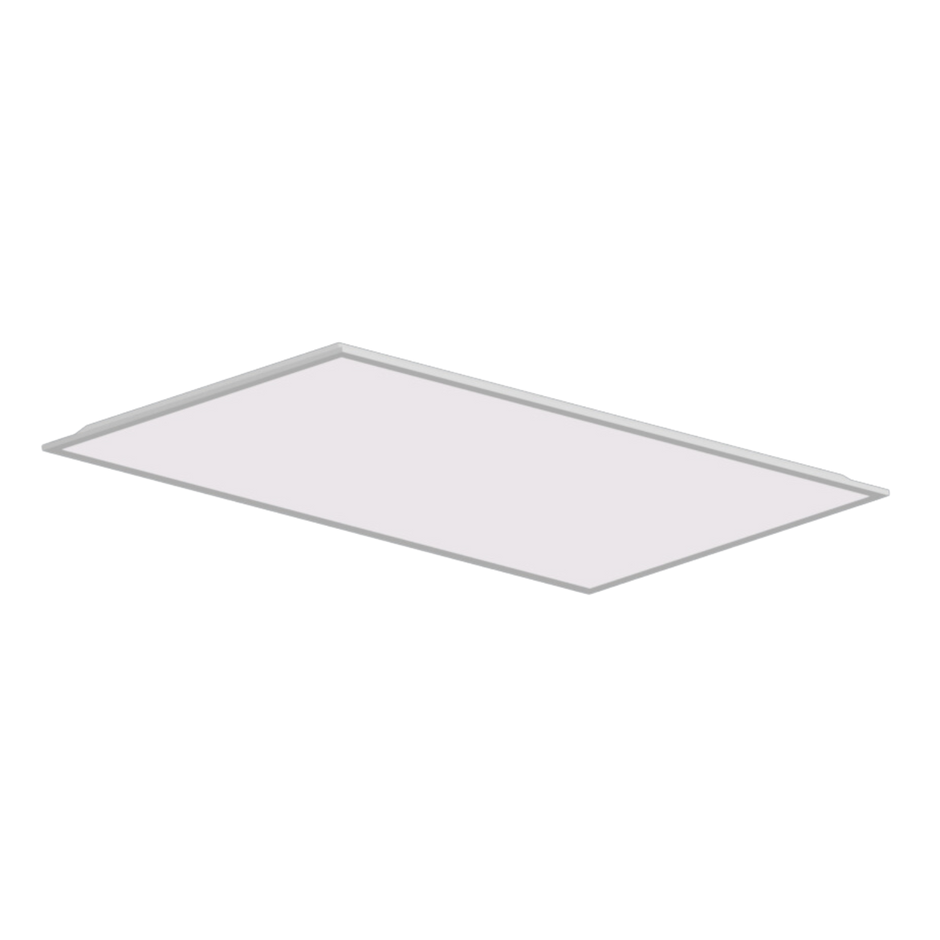

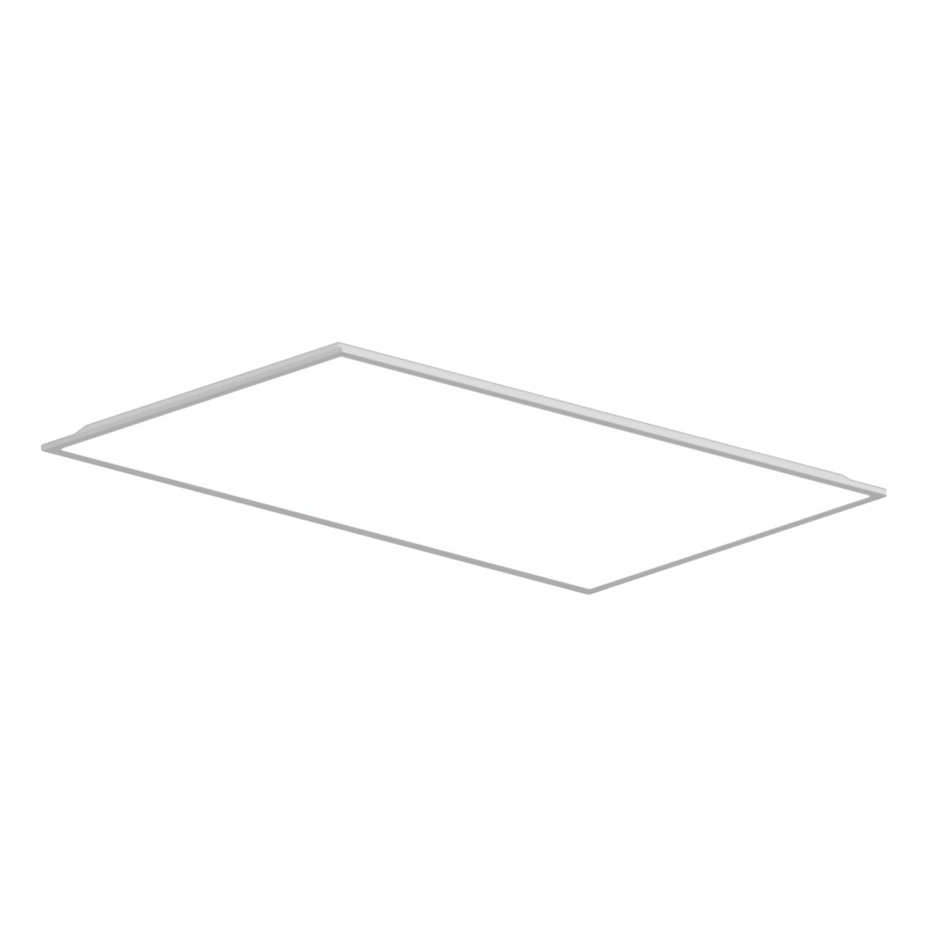

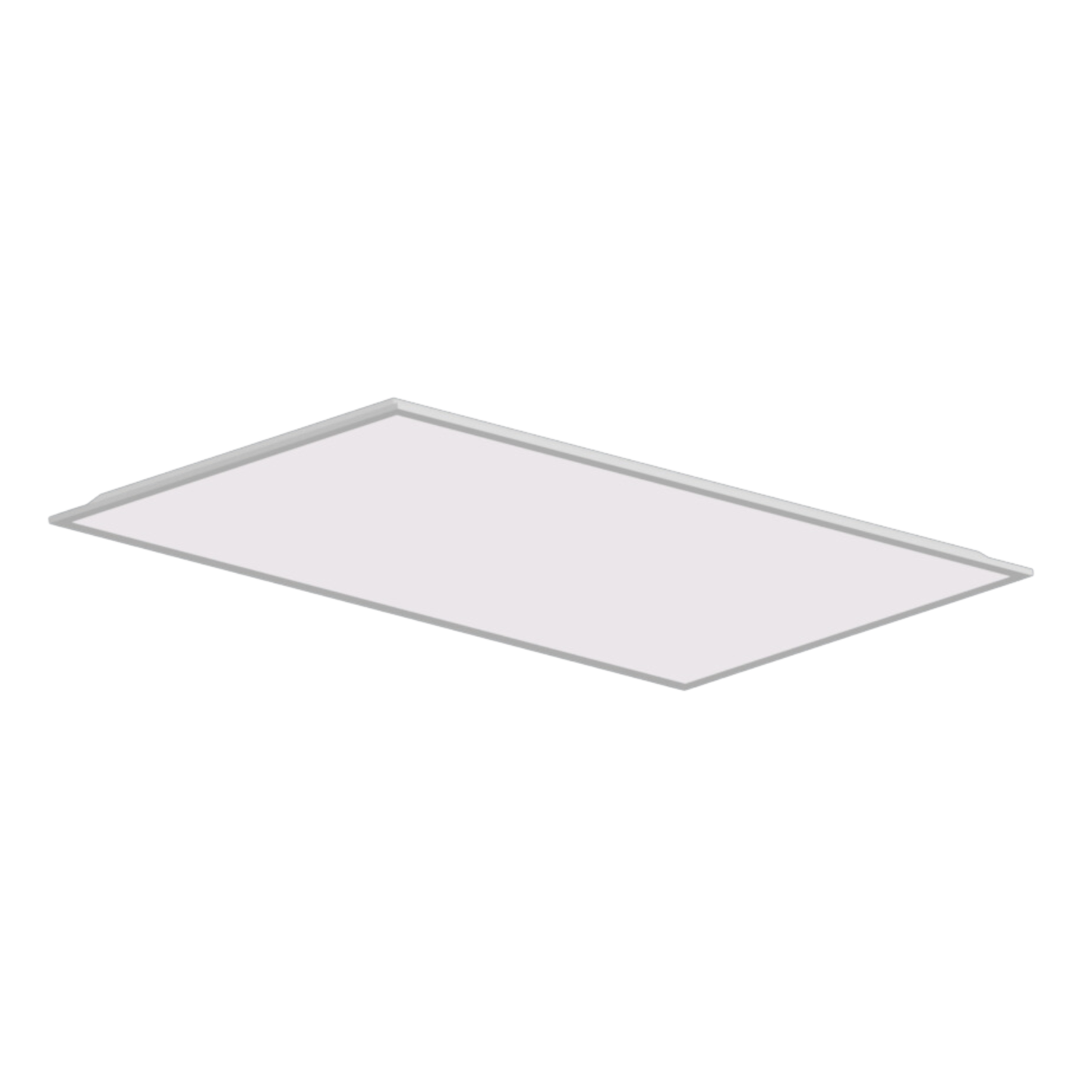

EOS 1200 X 600 Back-lit LED Panel (40W)

Datasheet Download

IES Files on request

Mounting/Dimensions:

Drop-in ceiling

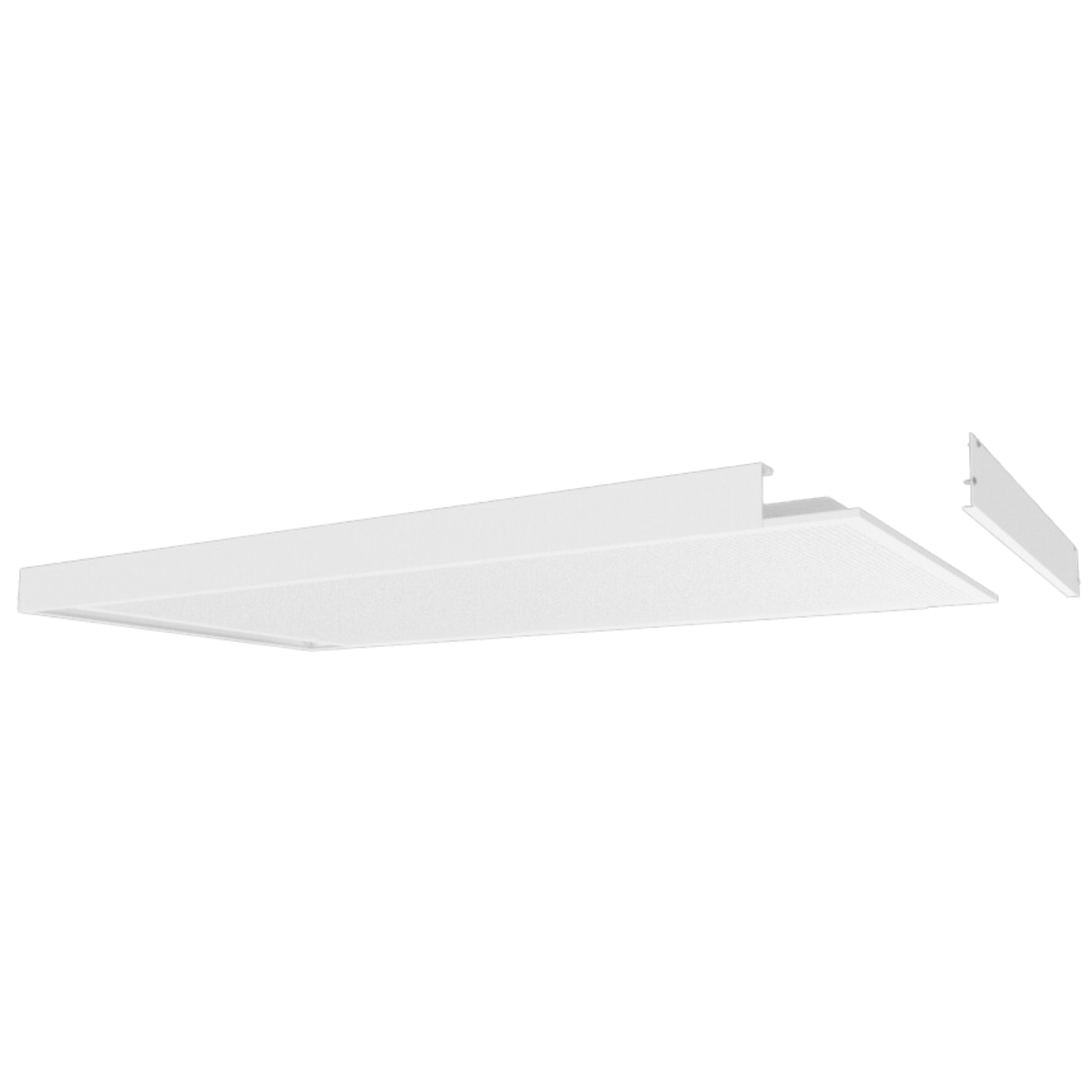

Surface mounted (Surface mounted frame needed)
Suspended (Surface mounted frame & Suspension kit needed)

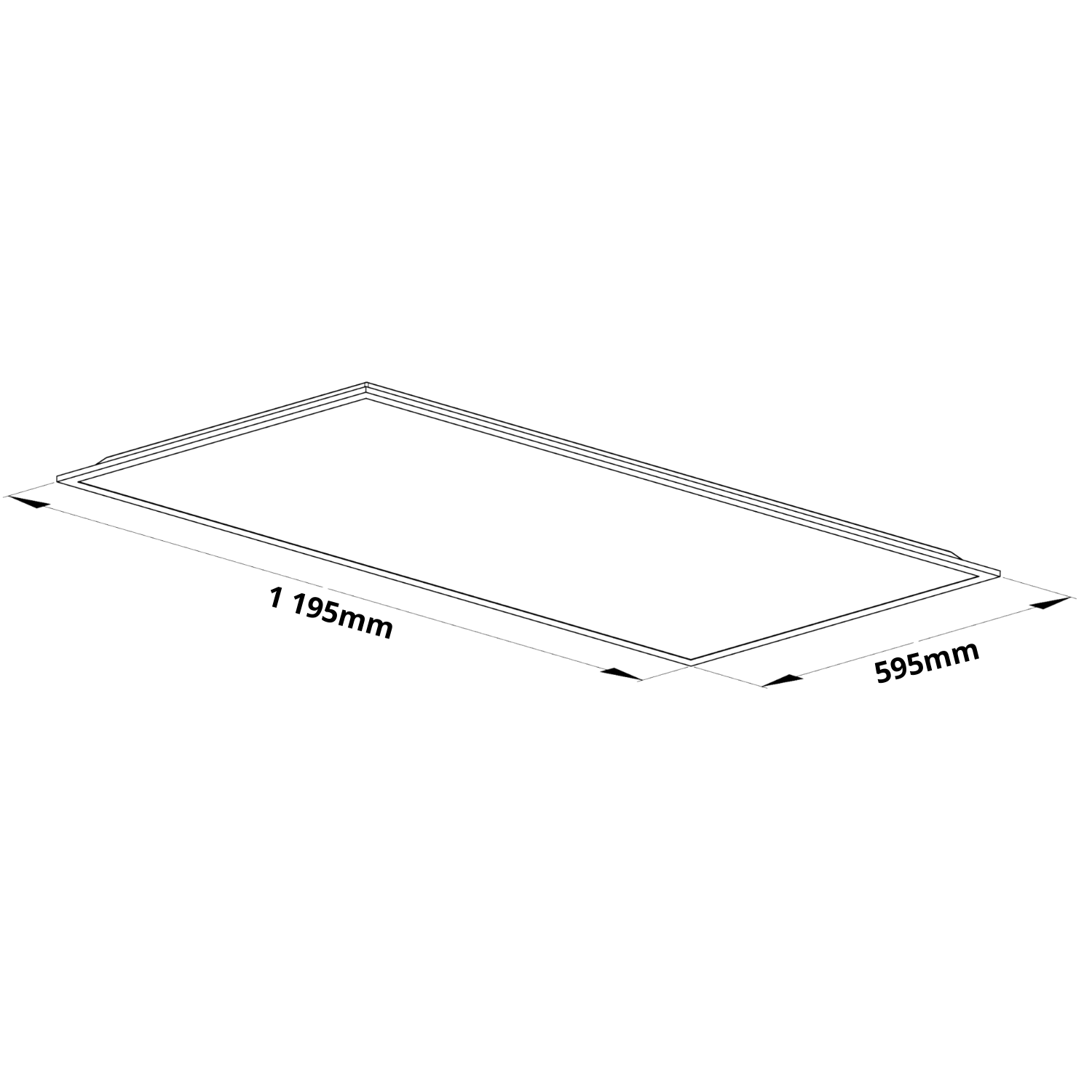

Length: 1195mm
Width: 595mm

Performance/ Specifications:

System Wattage: 40W
System Lumens: 5,600lm
CRI: ≥ 80
CCT: 4000K / 5000K
MacAdams: ≤ 5 Step
Distributions: UGR ≤ 19 Diffused
IP: 20
Lumen Maintenance: L80/B10 @ 50 000hrs

Finish Option:

White

Additional Features:

Emergency: Remote 3hr EME kit
Control: DALI
Warranty: 5 Year (T’s & C’s apply)
