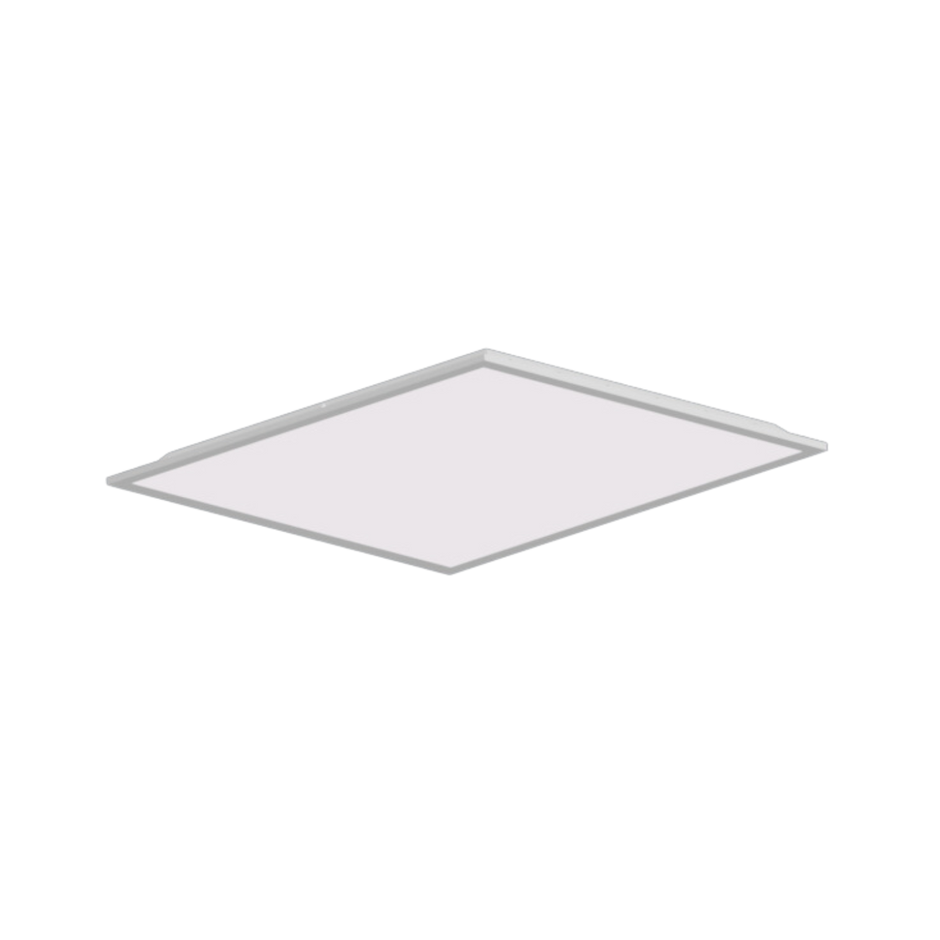

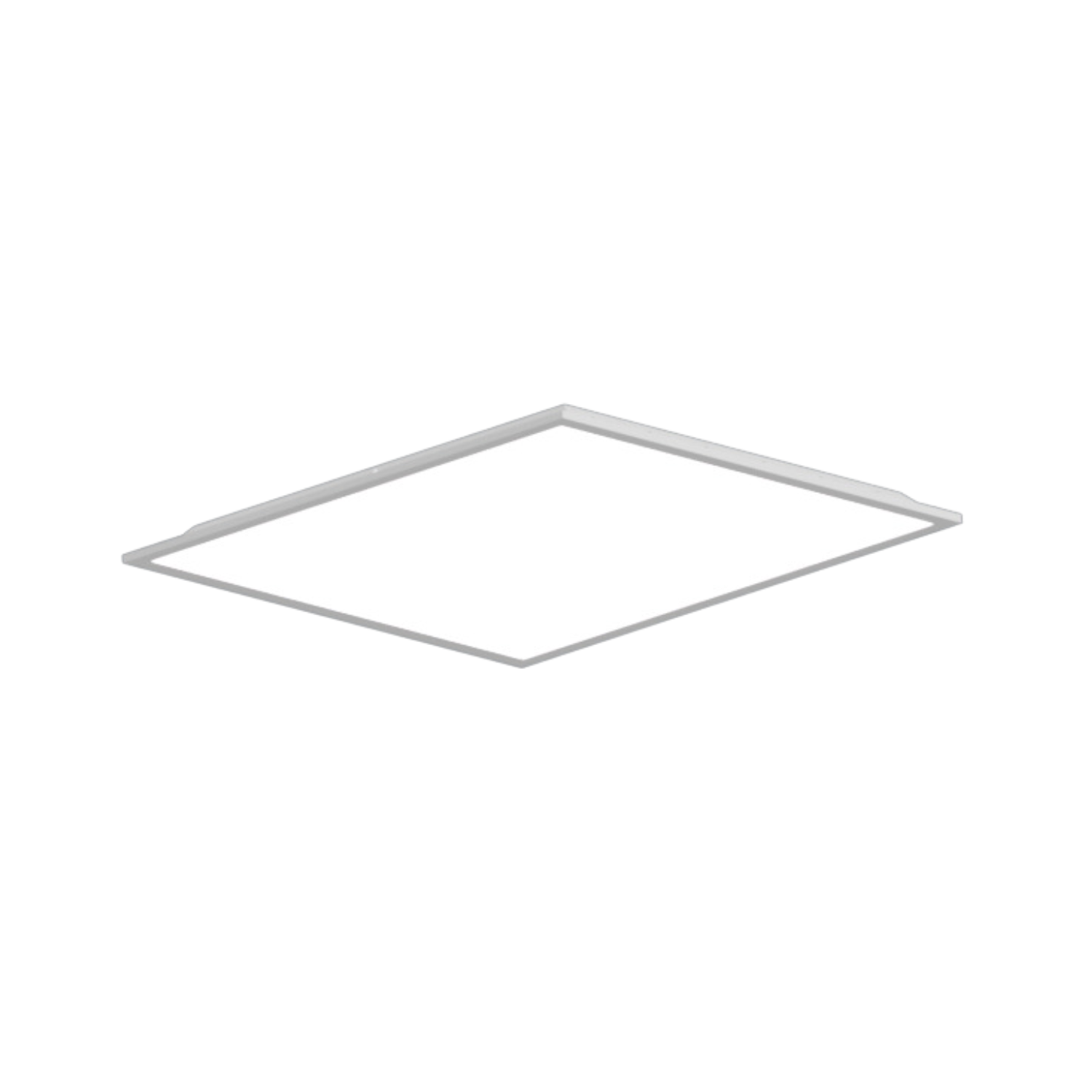

EOS 600 X 600 Back-lit LED Panel (28W)

Datasheet Download

IES Files on request

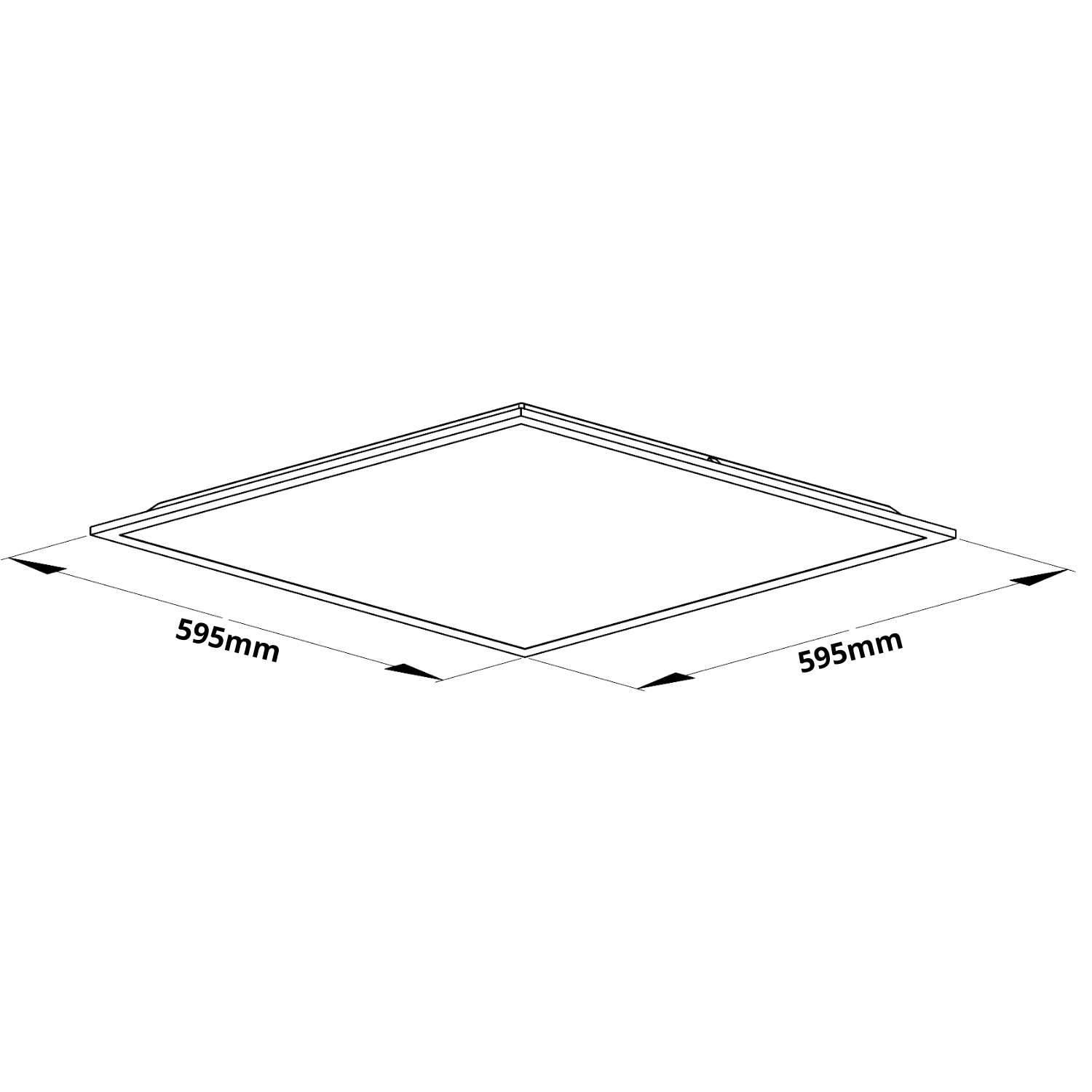

Mounting/Dimensions:

Drop-in ceiling

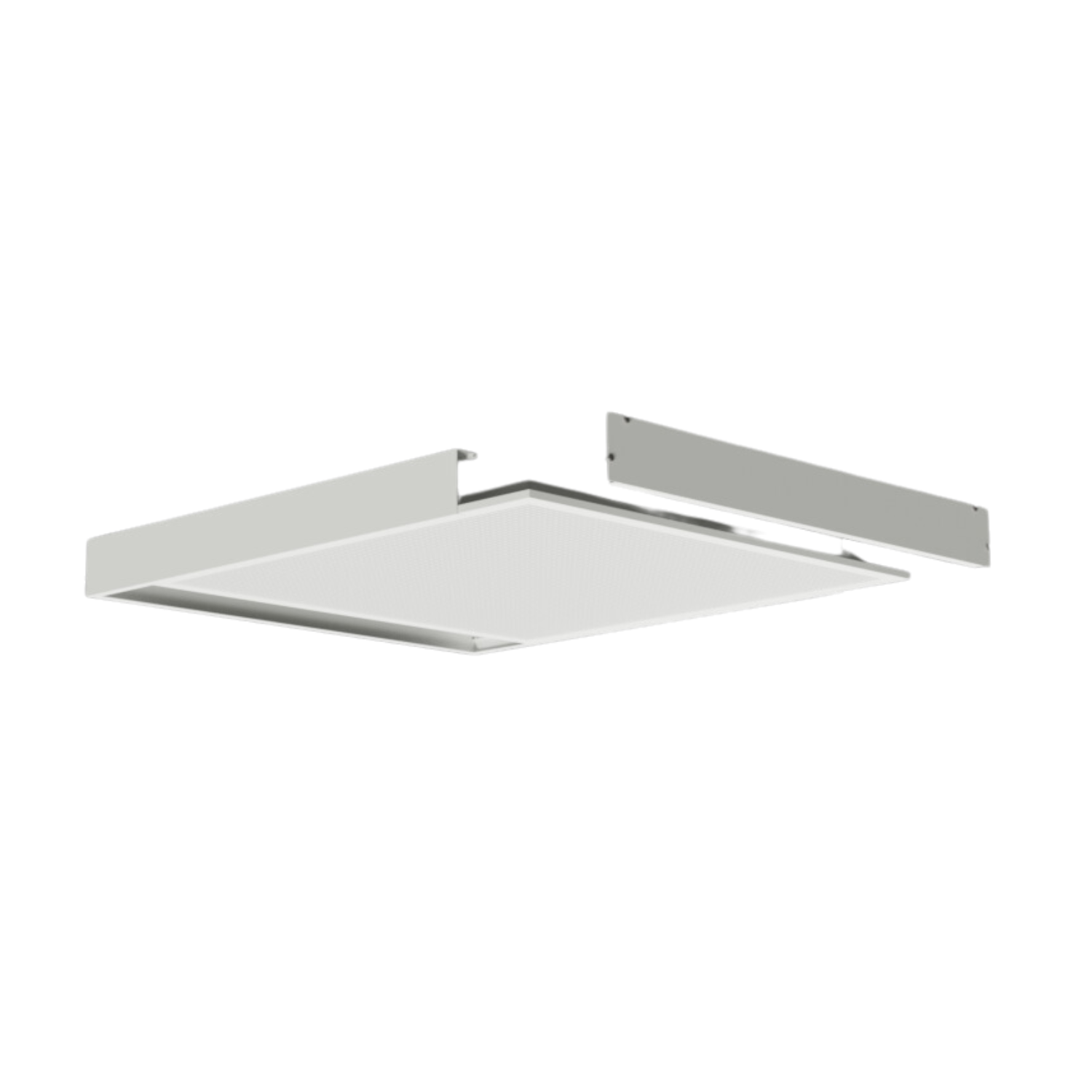

Surface mounted (Surface mounted frame needed)
Suspended (Surface mounted frame & Suspension kit needed)
Length: 595mm
Width: 595mm

Performance/ Specifications:

System Wattage: 28 W
System Lumens: 3,920lm
CRI: ≥ 80
CCT: 4000K / 5000K
MacAdams: ≤ 5 Step
Distributions: UGR ≤ 19 Diffused
IP: 20
Lumen Maintenance: L80/B10 @ 50 000hrs

Finish Option:

White

Additional Features:

Emergency: Remote 3hr EME kit
Control: DALI
Warranty: 5 Year (T’s & C’s apply)
