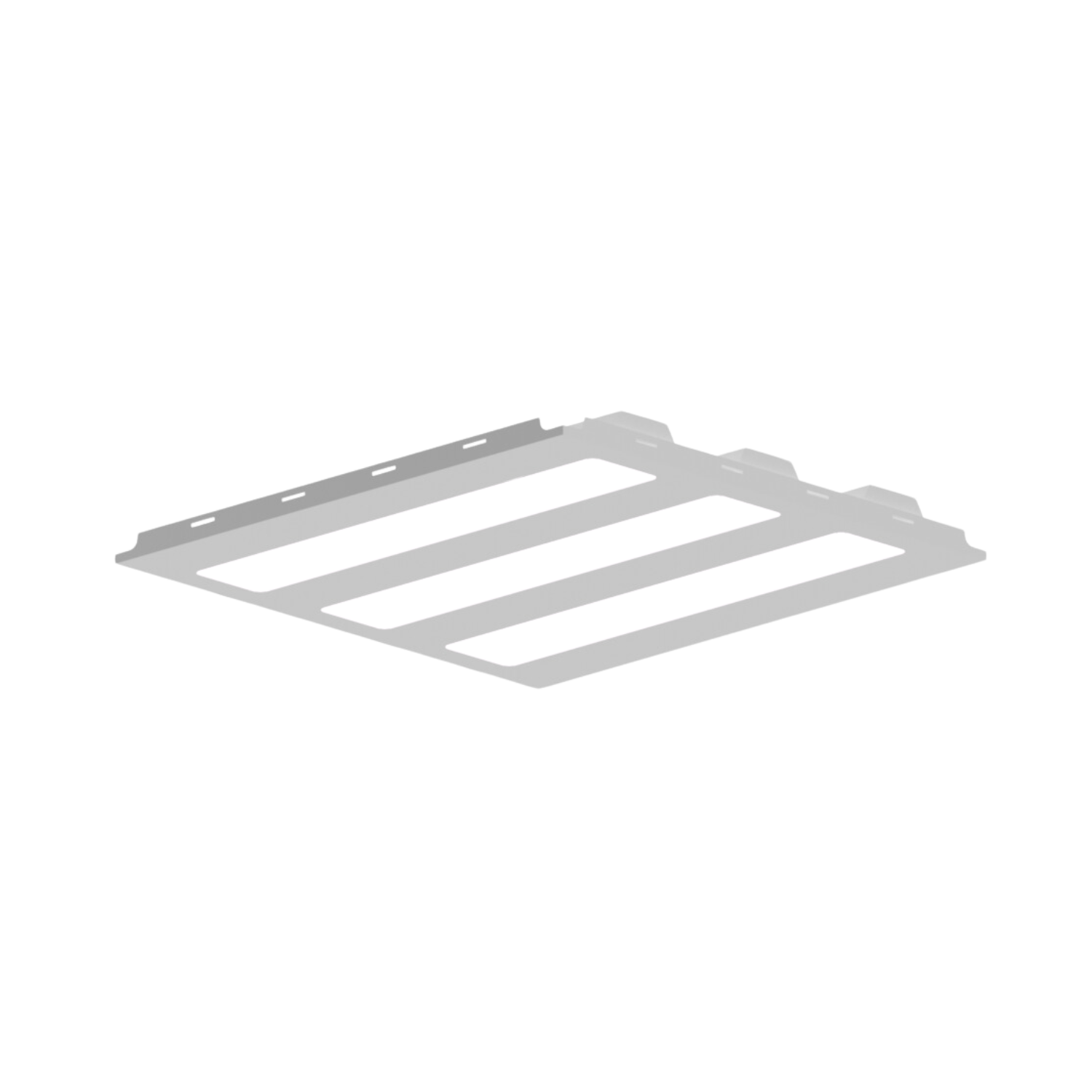

3CR - Recessed Modular LED Panel (33-68W)

Datasheet Download

IES Files on request

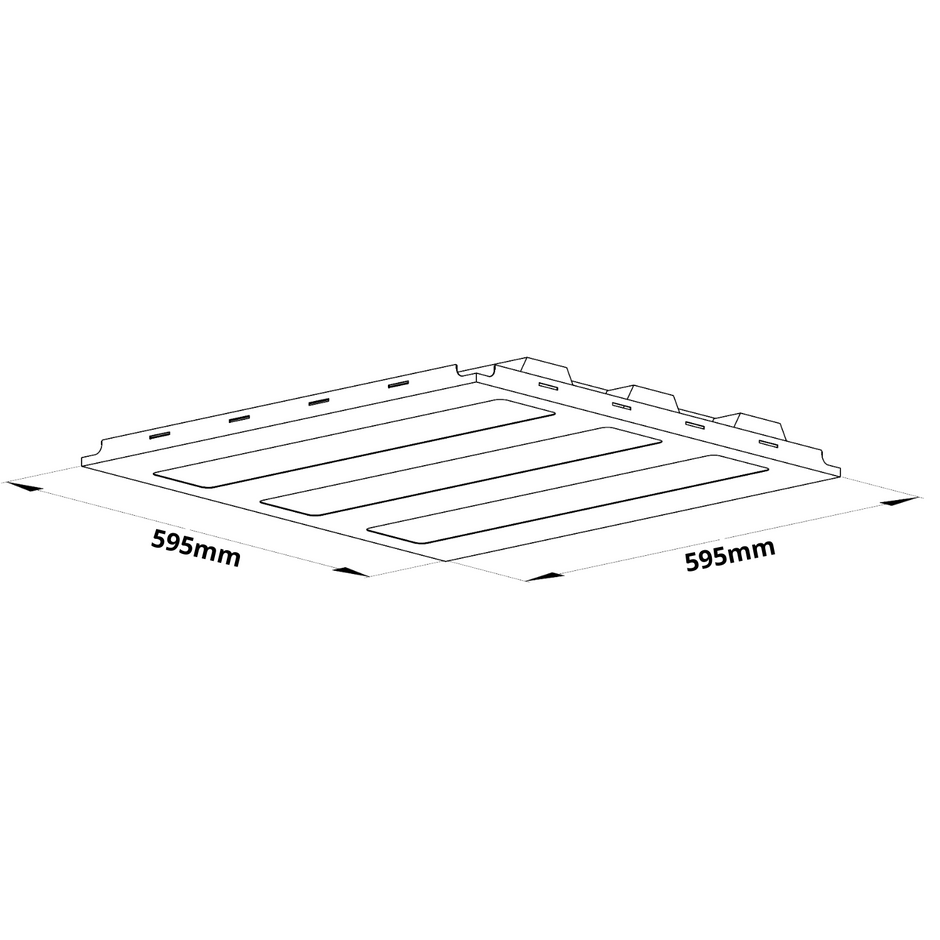

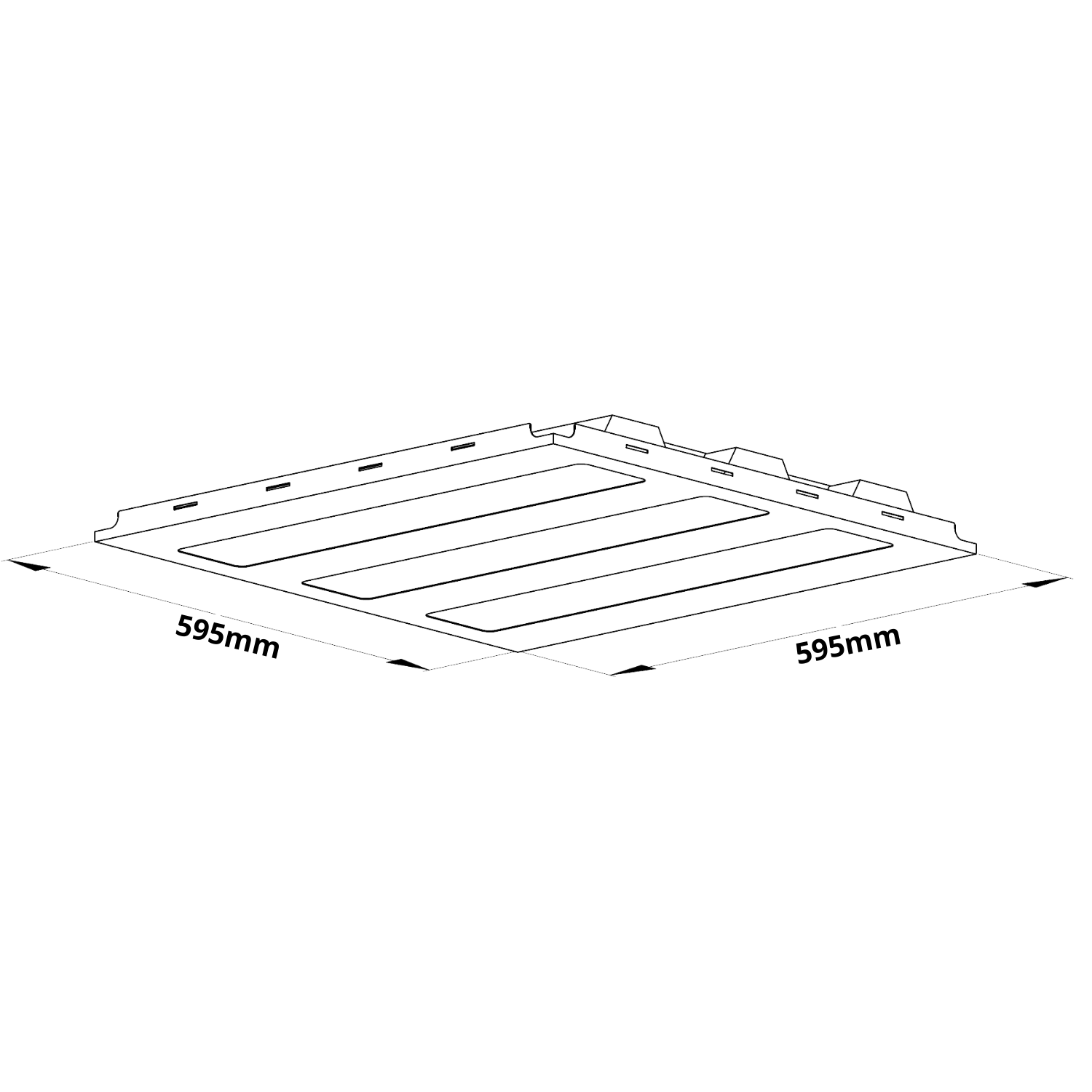

Mounting/Dimensions:

Drop-in ceiling
Length: 595mm
Width: 595mm


Performance/ Specifications:

Nominal Wattage: 33 - 68W
Nominal Lumens: 5,815 - 11,900lm
System Wattage: 36 - 75W
System Lumens: 3,780 - 7,740lm
CRI: ≥ 80
CCT: 3000K / 4000K / Tunable White / Other
MacAdams: ≤ 3 Step
Distributions: Diffused / Wide
IP: 20
Lumen Maintenance: L80/B10 @ 50 000hrs


Finish Option:

White/other


Additional Features:

Emergency: Remote 3hr EME kit
Control: DALI
Warranty: 5 Year (T’s & C’s apply)
