O-Bay LED High Bay (100-200W_

Datasheet Download

IES Files on request

Mounting/Dimensions:

Suspended

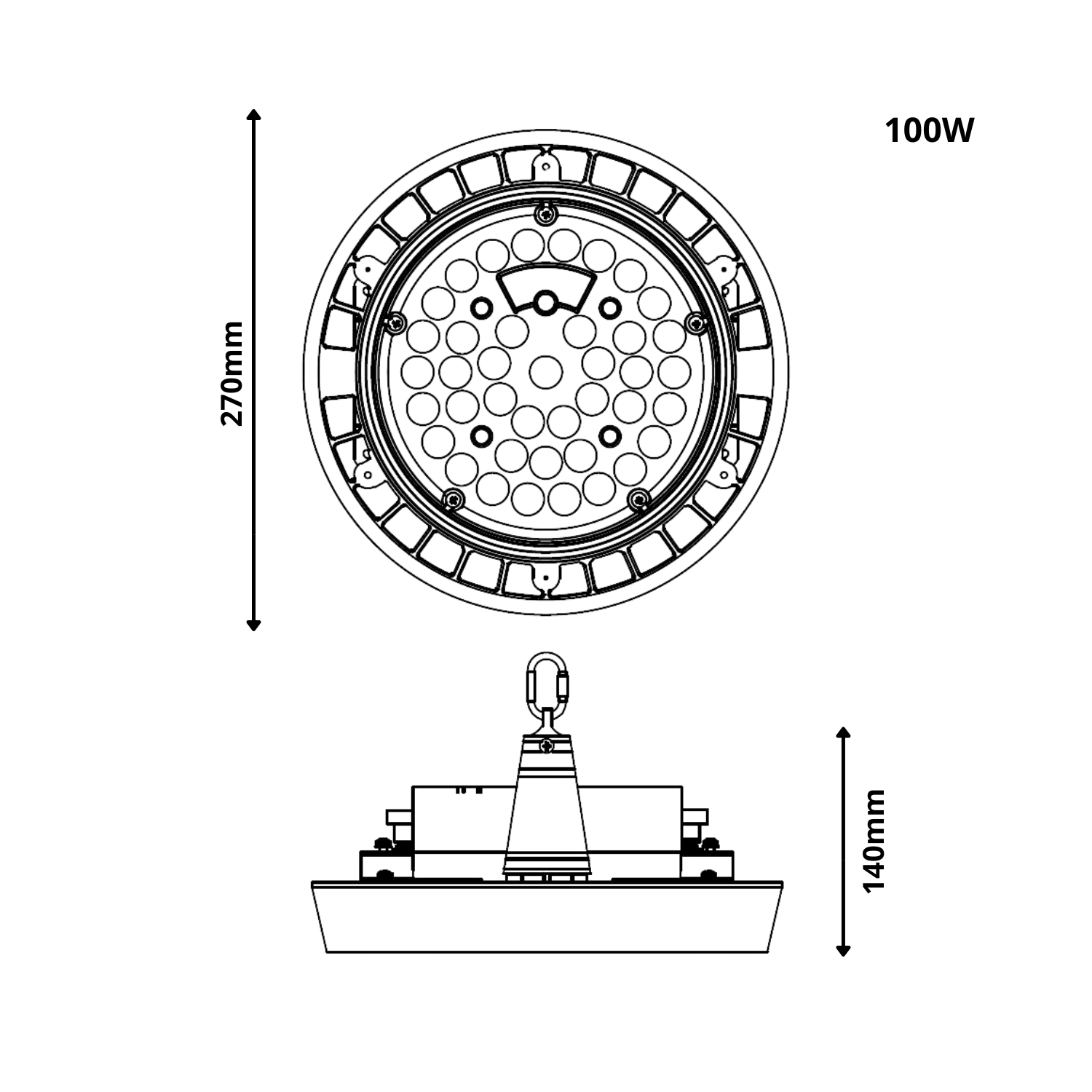

100W: Height: 140mm/ Diameter: 270mm

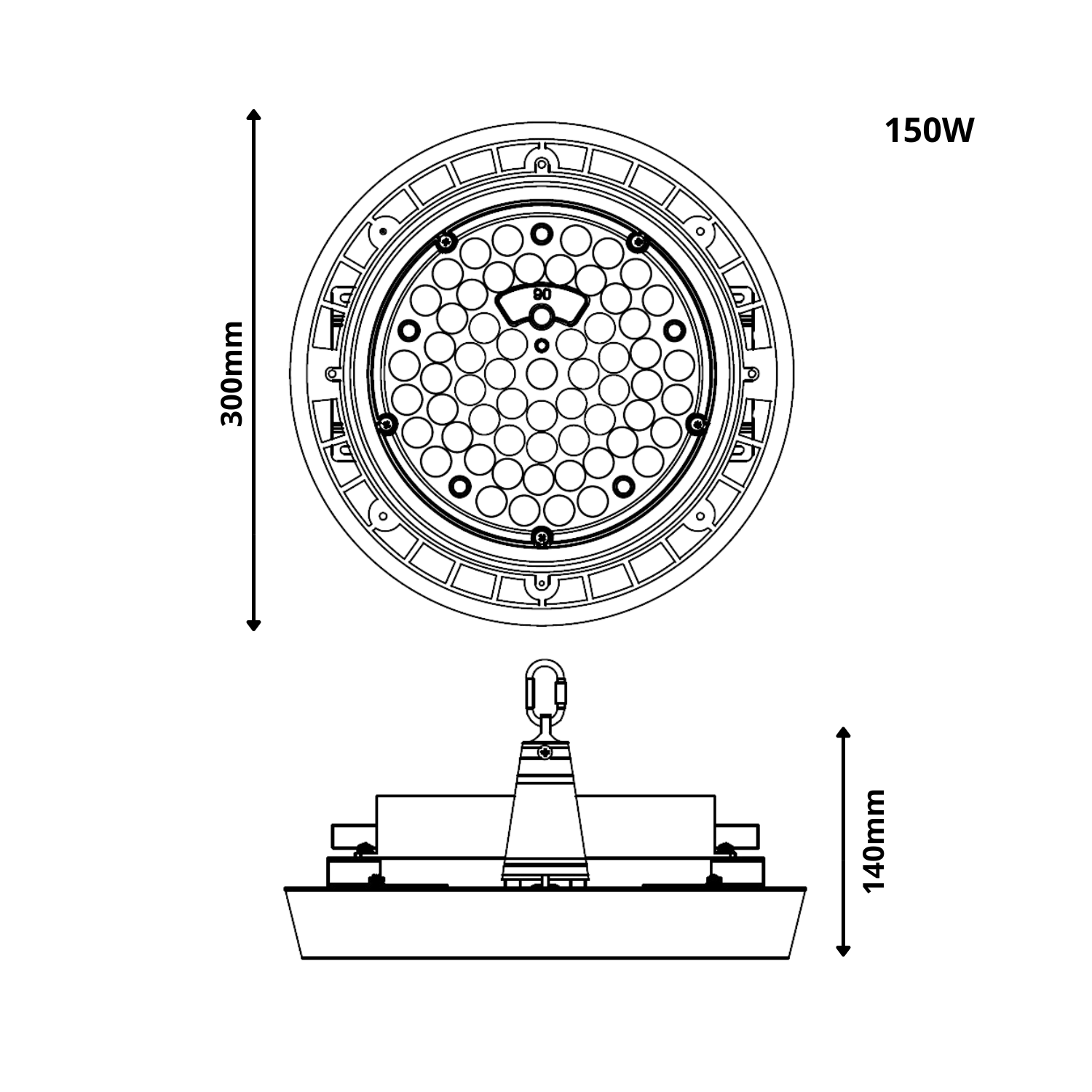

150W: Height: 140mm/ Diameter: 300mm

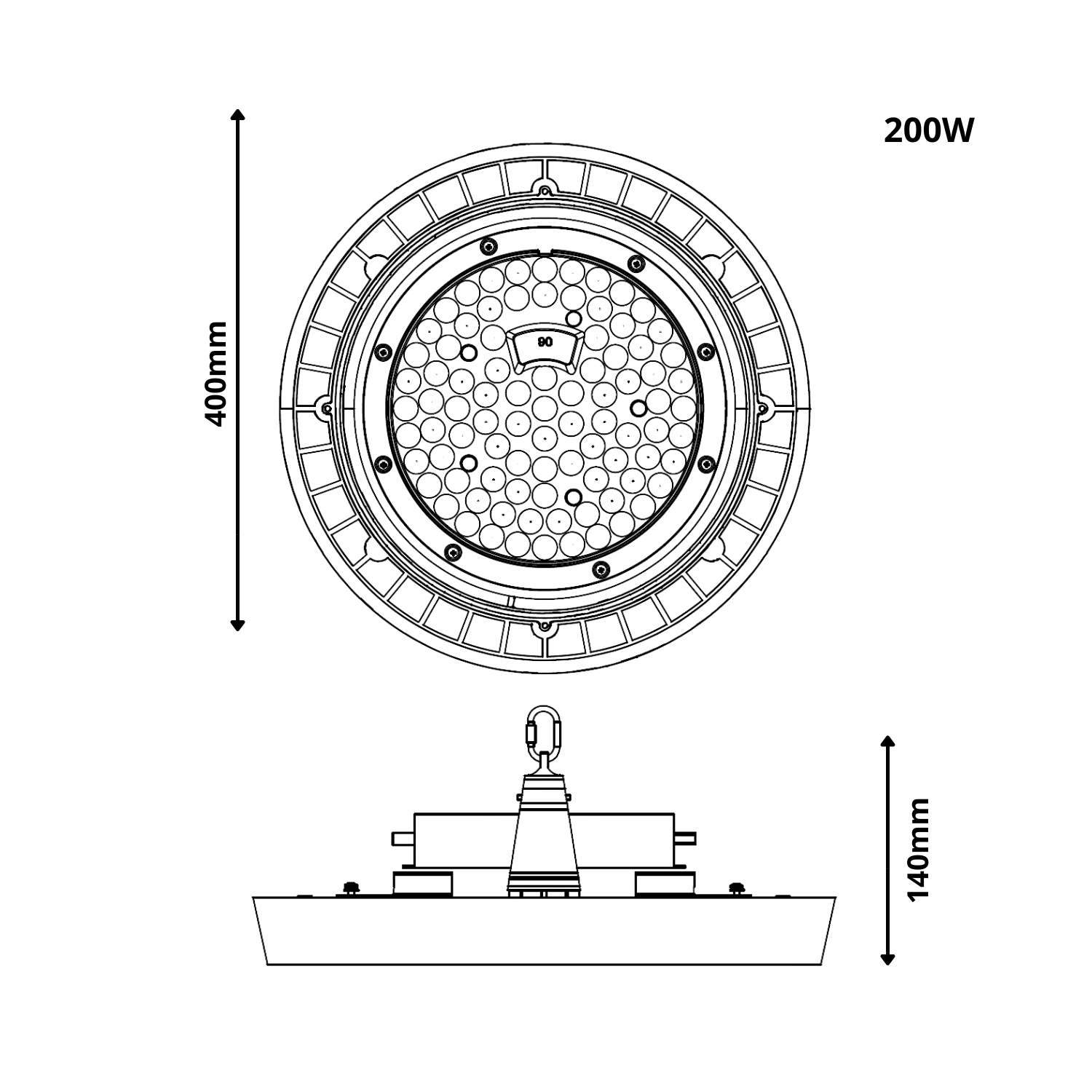

200W: Height: 140mm/ Diameter: 400mm

Performance/ Specifications:

100W:
Nominal Wattage: 93W
Nominal Lumens: 16,410lm
System Wattage: 100W
System Lumens: 14,750lm
Distributions: 90°
CRI: ≥ 70
CCT: 4000K
IK: 08
IP: 65
Lumen Maintenance: L80/B10 @ 50 000hrs

150W:
Nominal Wattage: 139W
Nominal Lumens: 24,370lm
System Wattage: 150W
System Lumens: 21,900lm
Distributions: 90°
CRI: ≥ 70
CCT: 4000K
IK: 08
IP: 65
Lumen Maintenance: L80/B10 @ 50 000hrs

200W:
Nominal Wattage: 186W
Nominal Lumens: 30,670lm
System Wattage: 200W
System Lumens: 27,700lm
Distributions: 60°
CRI: ≥ 70
CCT: 4000K
IK: 08
IP: 65
Lumen Maintenance: L80/B10 @ 50 000hrs

Finnish Options:

Grey

Warranty:

Emergency: Separate 3hr EME kit
Control: DALI
Warranty: 5 Year (T’s and C’s apply)
