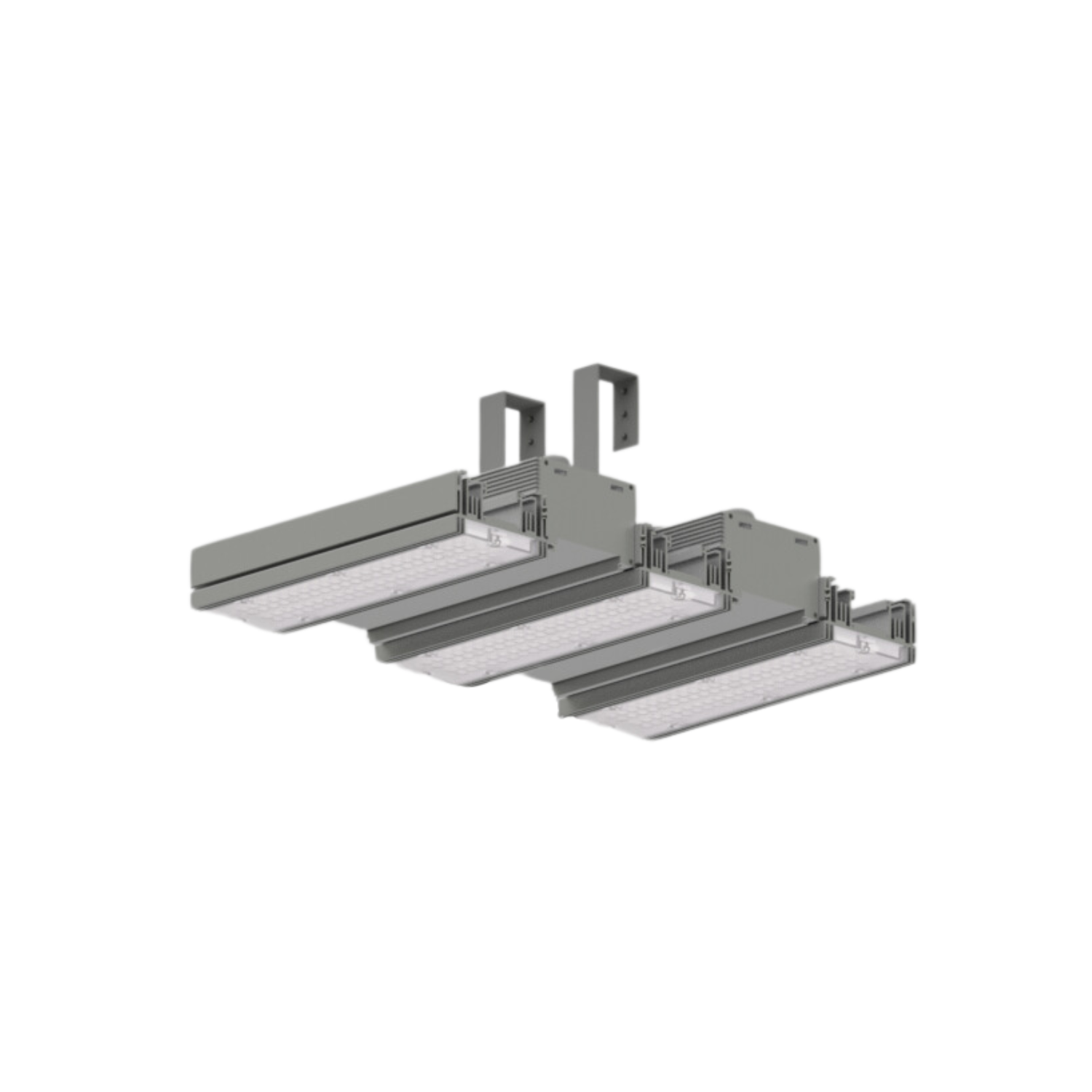

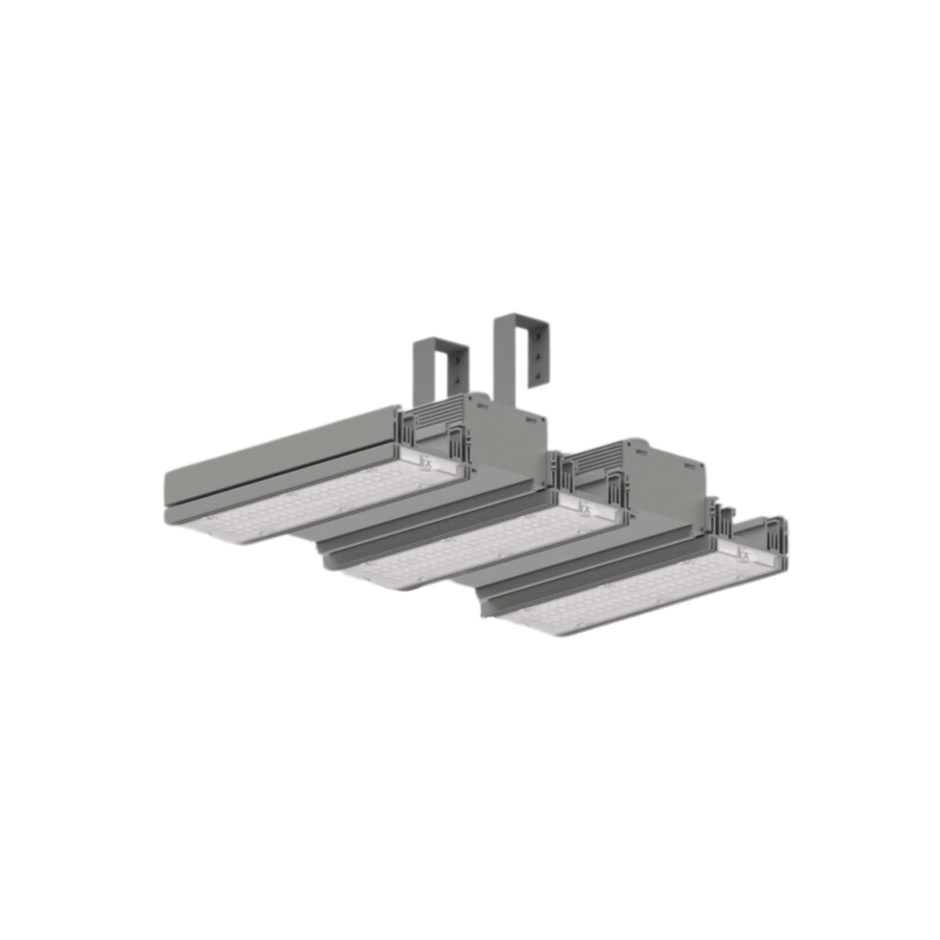

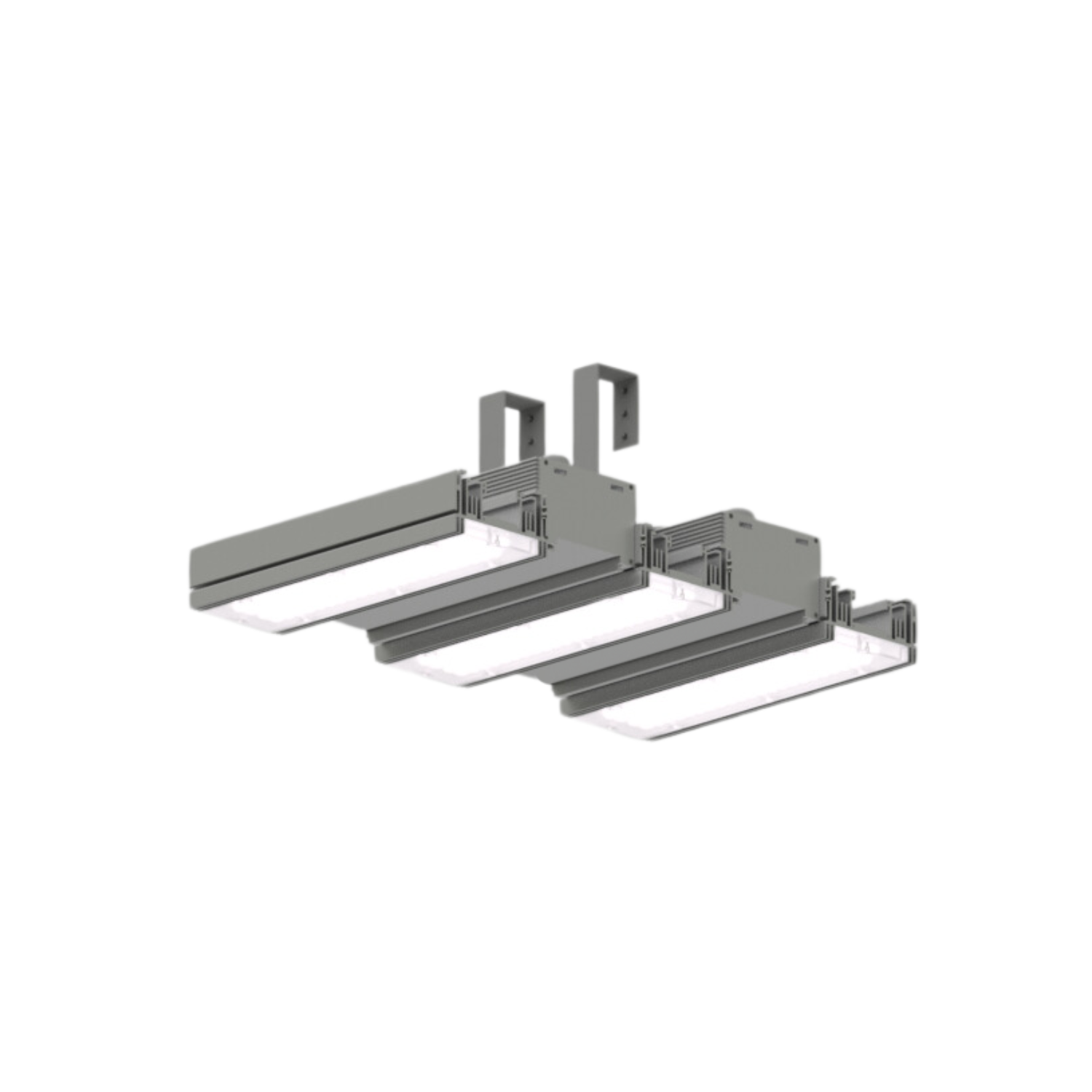

MOD65-C3 LED High Bay (90-180W)

Datasheet Download

IES Files on request

Mounting/Dimensions:

Mounting: P2000 / Eye Bolt for suspension

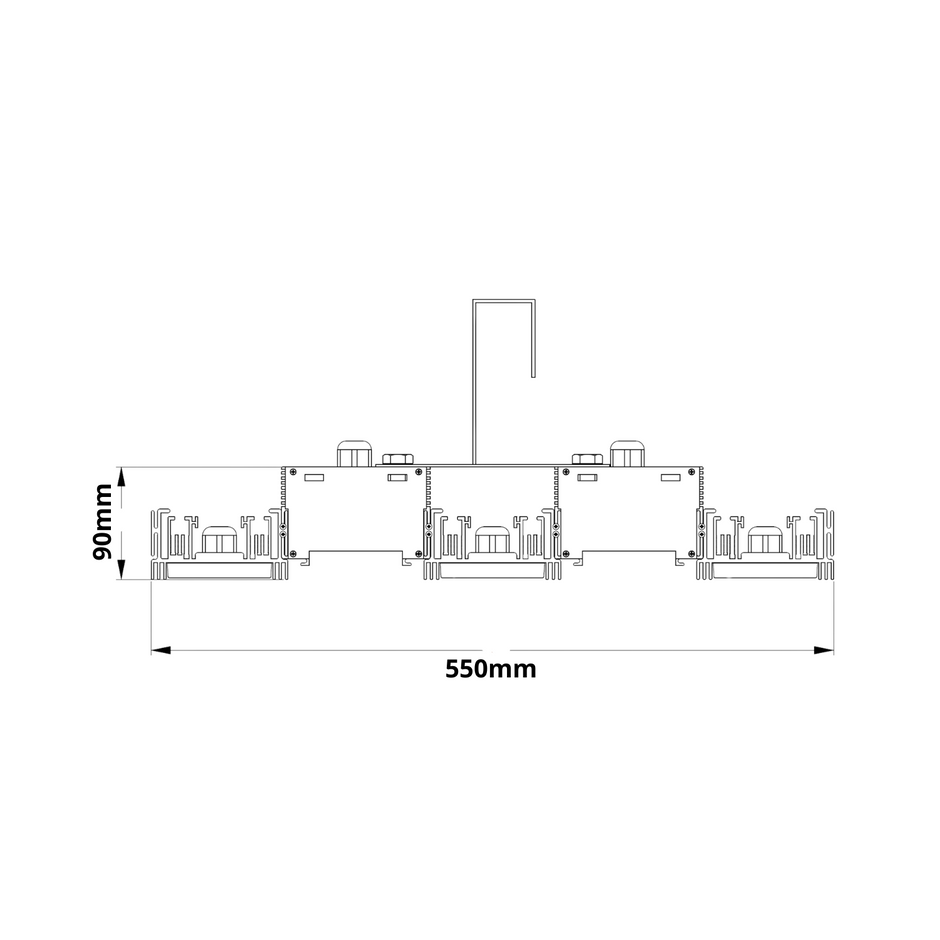

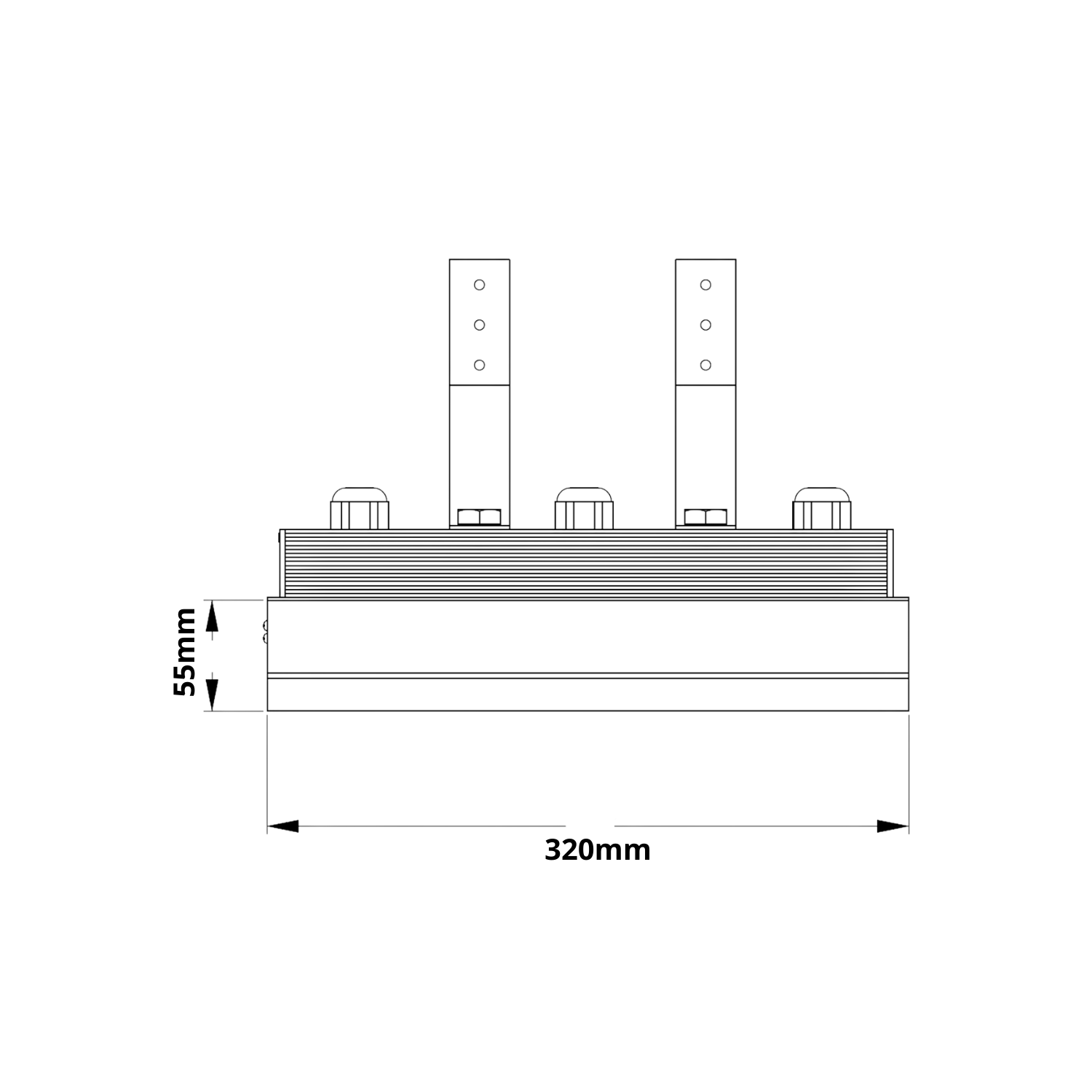

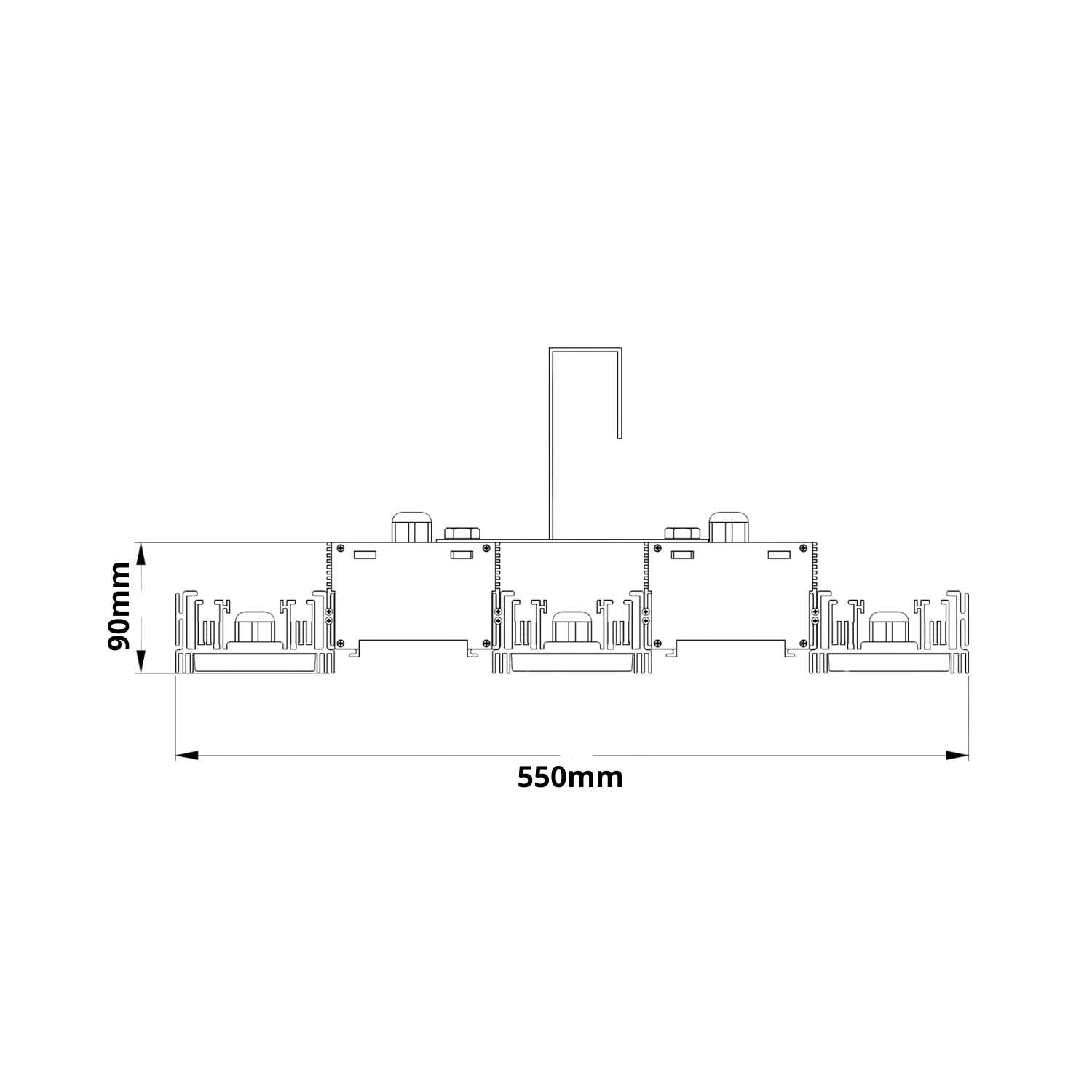

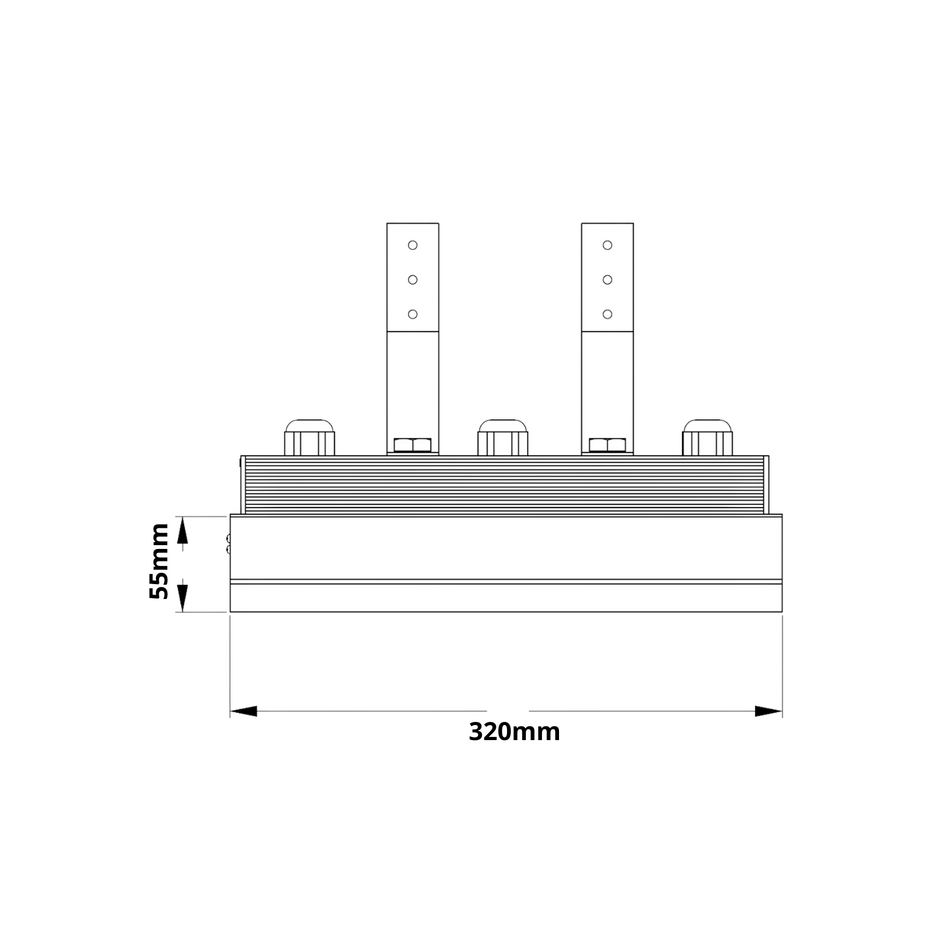

- See line drawing & Datasheet for Dimensions

Performance/ Specifications:

Nominal Wattage: 97 – 179W
Nominal Lumens: 19,845 – 34,650lm
System Wattage: 105 – 195 W
System Lumens: 17,860 – 31,185lm
CRI: ≥ 80
CCT: 4000K
MacAdams: ≤ 3 Step
Distributions: 30° / 60° / 90°
IP: 65
IK: 08
Lumen Maintenance: L80/B10 @ 50 000hrs

Finnish Options:

Grey

Additional Features:

Emergency: Integrated 3hr EME kit
Control: DALI
Warranty: 5 Year (T’s and C’s apply)
