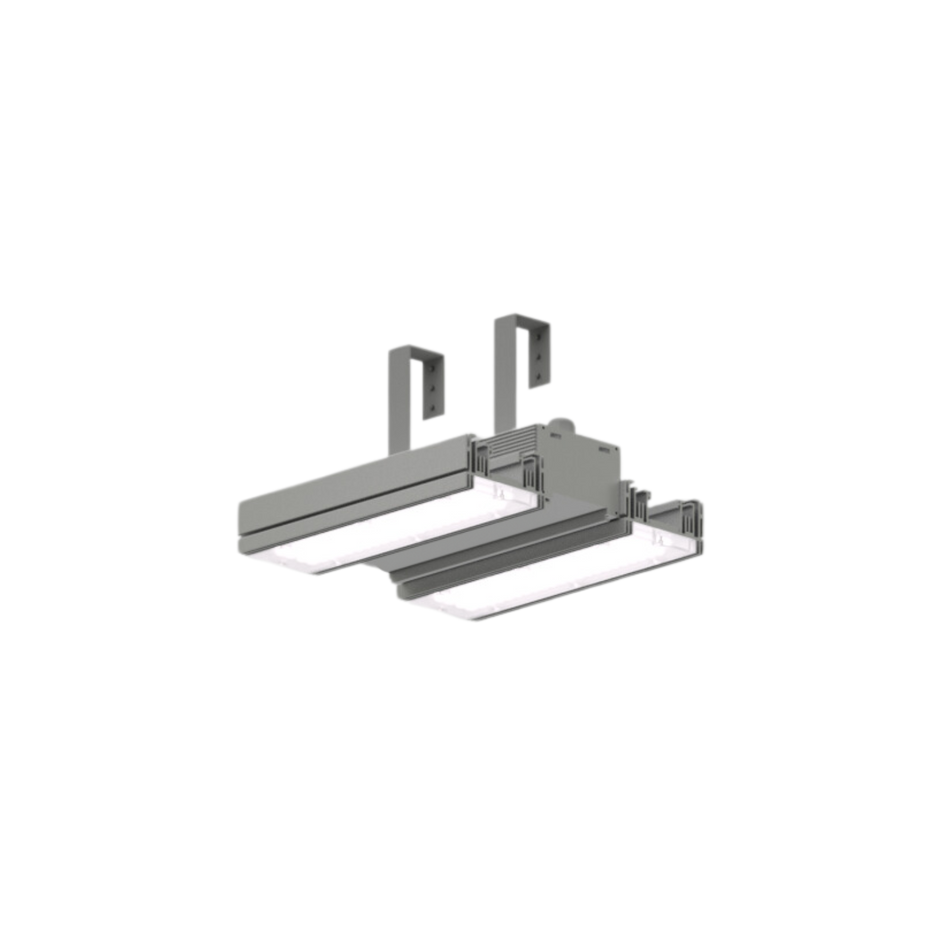

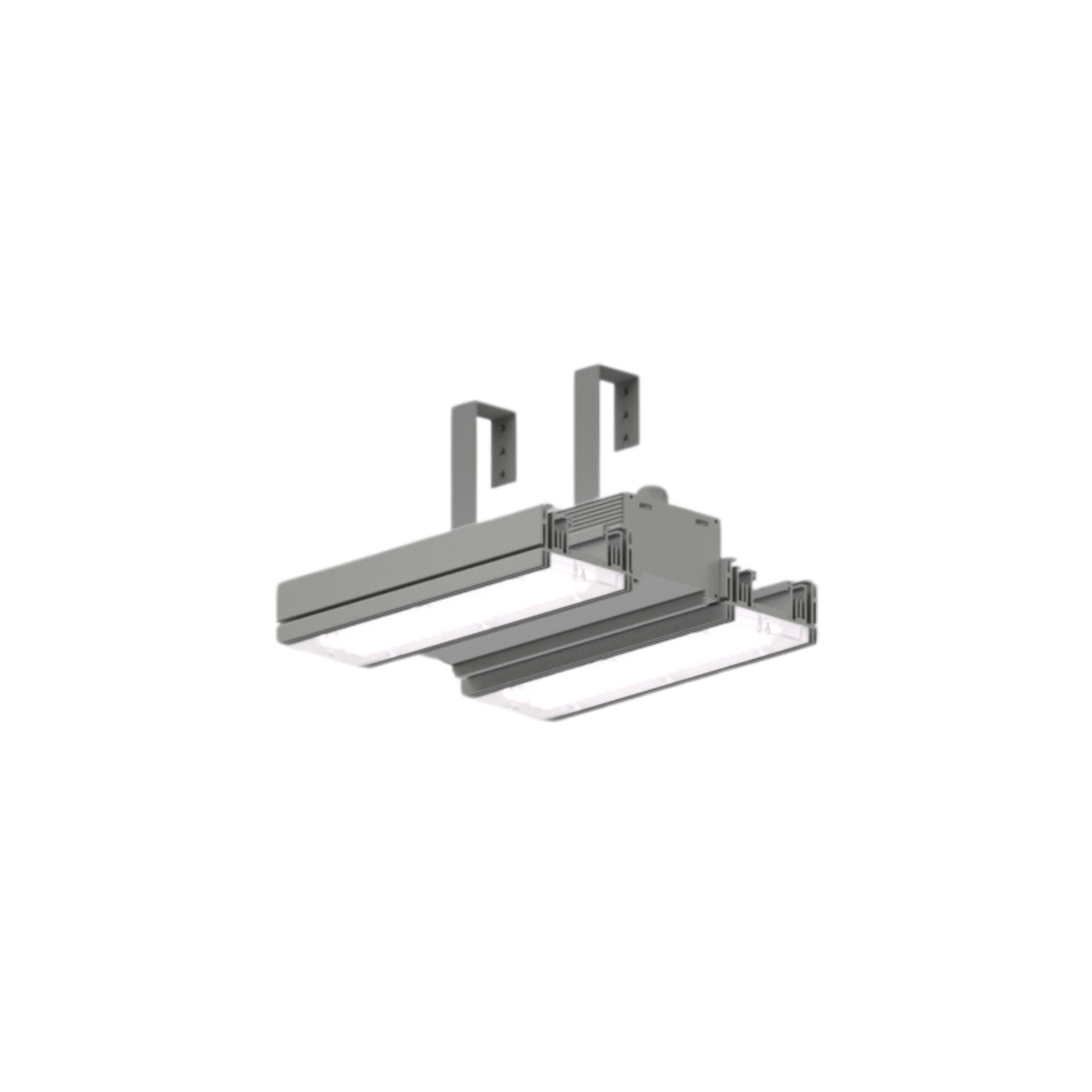

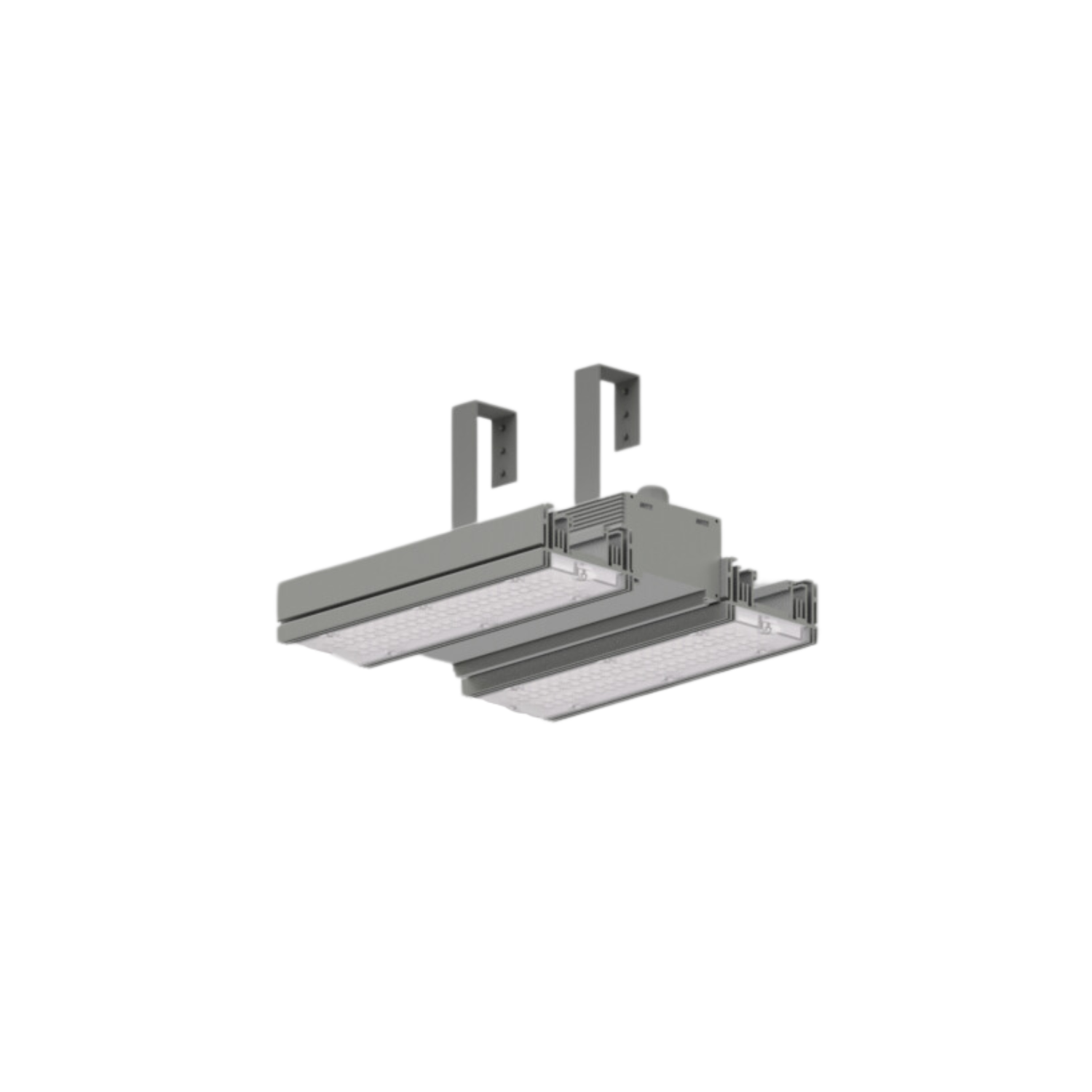

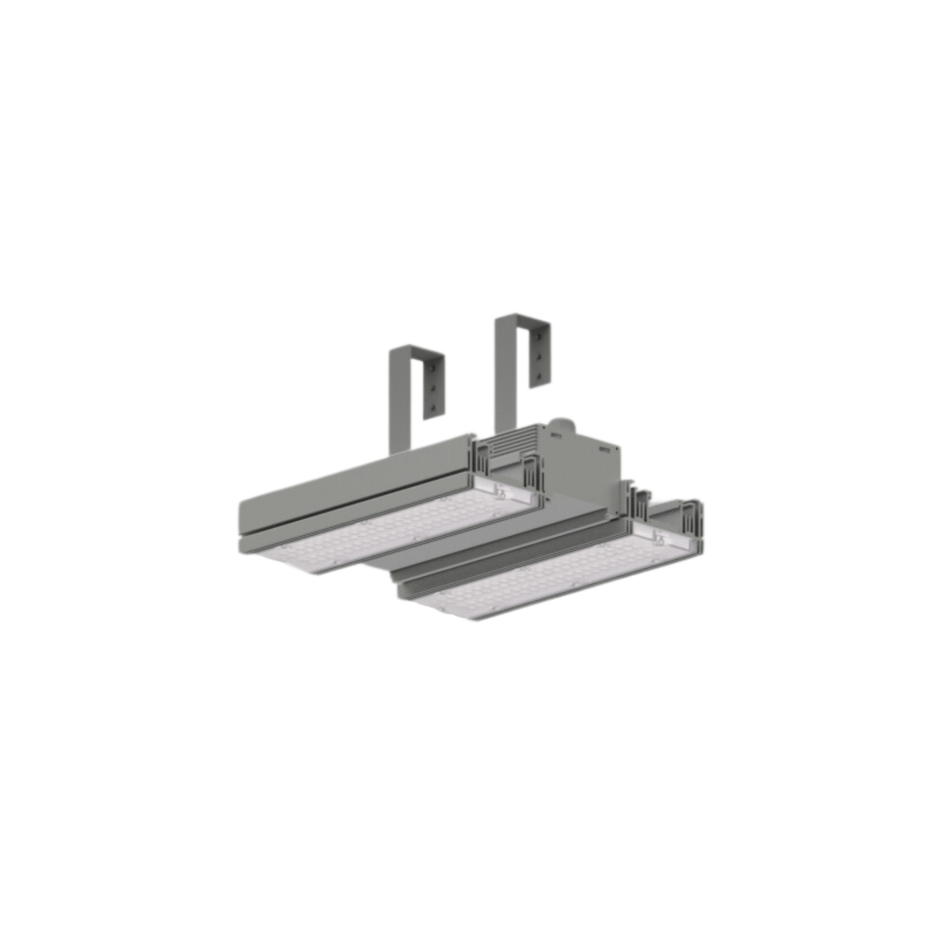

MOD65-C2 LED High Bay (70-130W)

Datasheet Download

IES Files on request

Mounting/Dimensions:

Mounting: P2000 / Eye Bolt for suspension

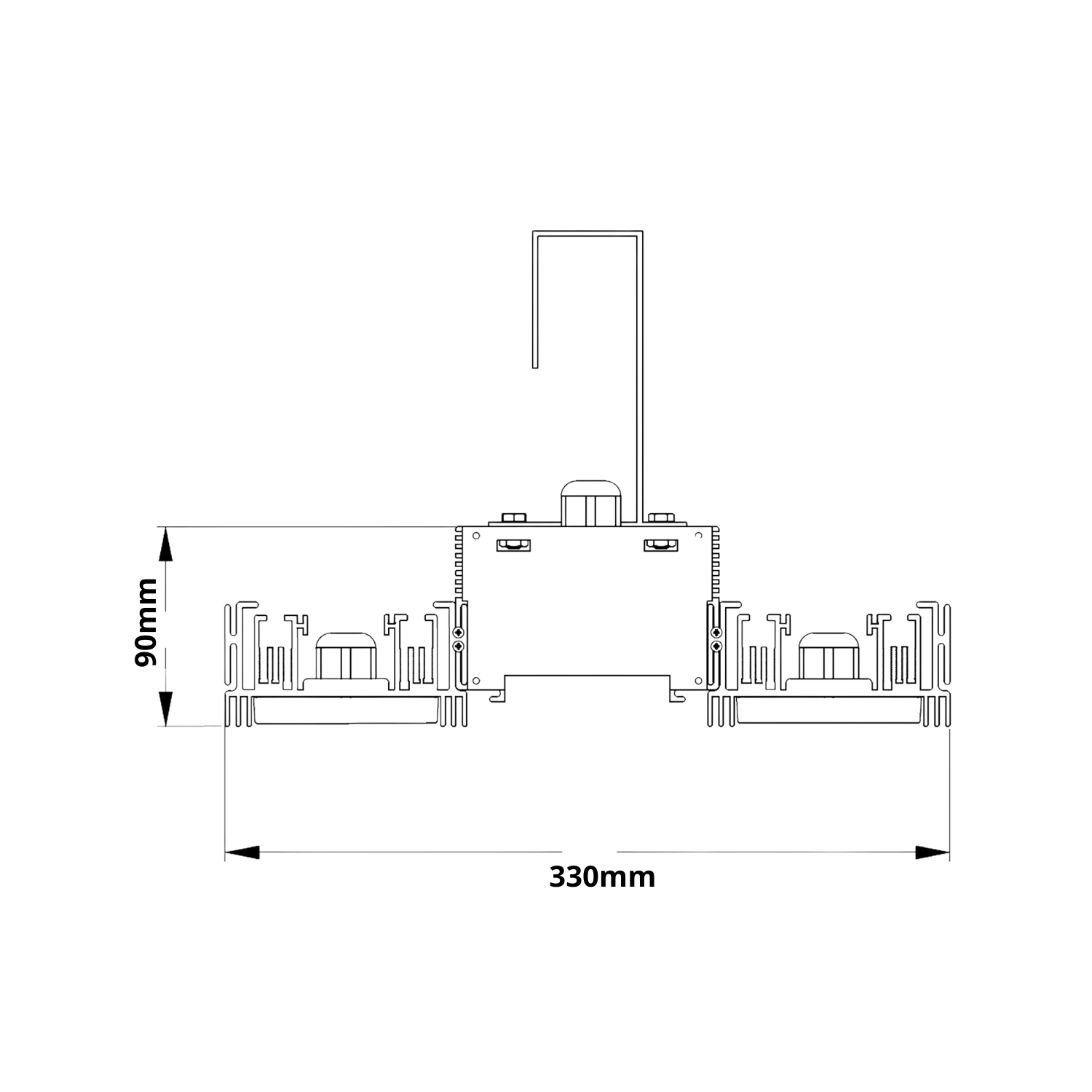

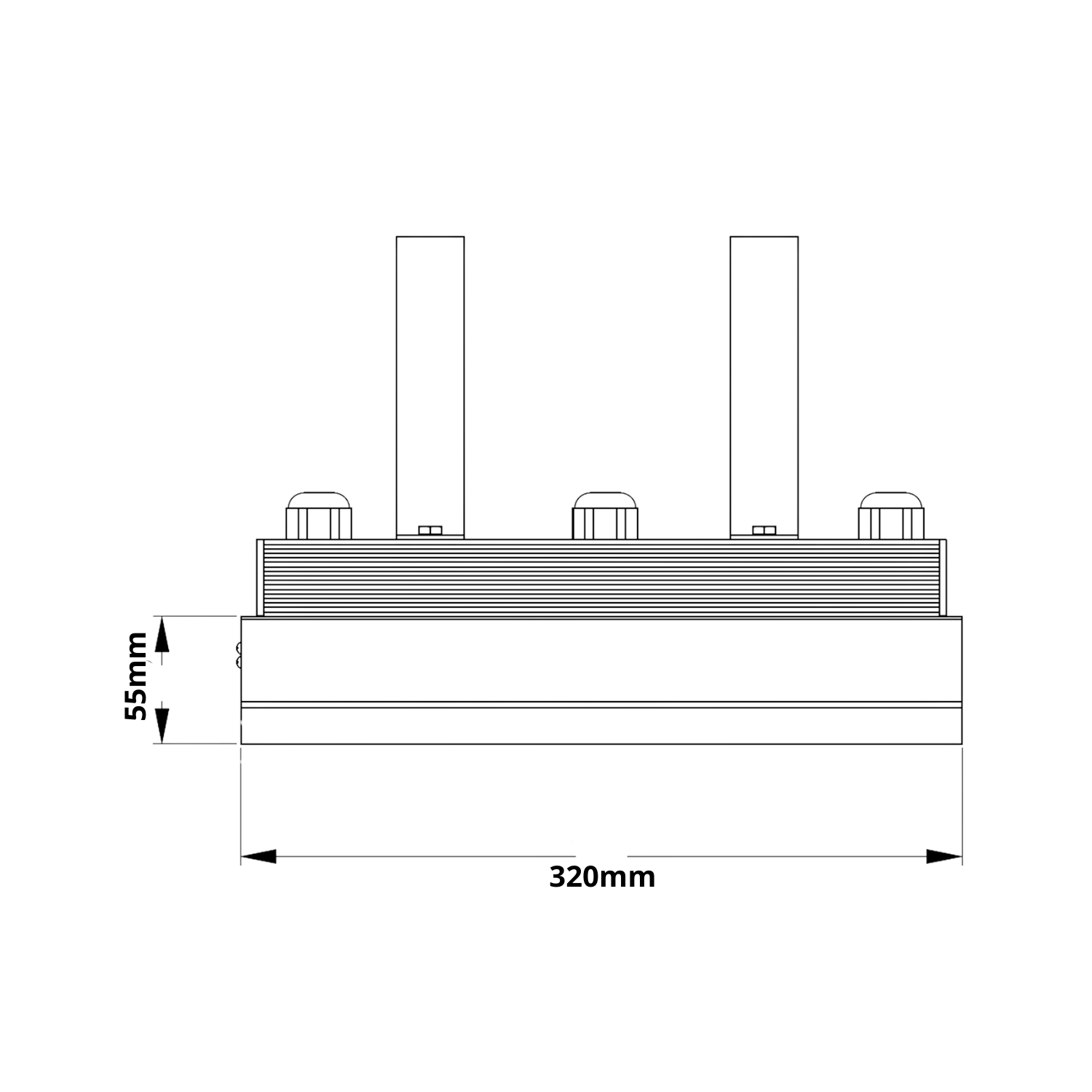

- See line drawing & Datasheet for Dimensions

Performance/ Specifications:

Mounting: P2000 / Eye Bolt for suspension
Nominal Wattage: 65 – 120W
Nominal Lumens: 13,230 – 23,100lm
System Wattage: 70 – 130W
System Lumens: 11,900 – 20,790lm
CRI: ≥ 80
CCT: 4000K
MacAdams: ≤ 3 Step
Distributions: 30° / 60° / 90°
IP: 65
IK: 08
Lumen Maintenance: L80/B10 @ 50 000hrs

Finnish Options:

Grey

Additional features:

Emergency: Integrated 3hr EME kit
Control: DALI
Warranty: 5 Year (T’s and C’s apply)
