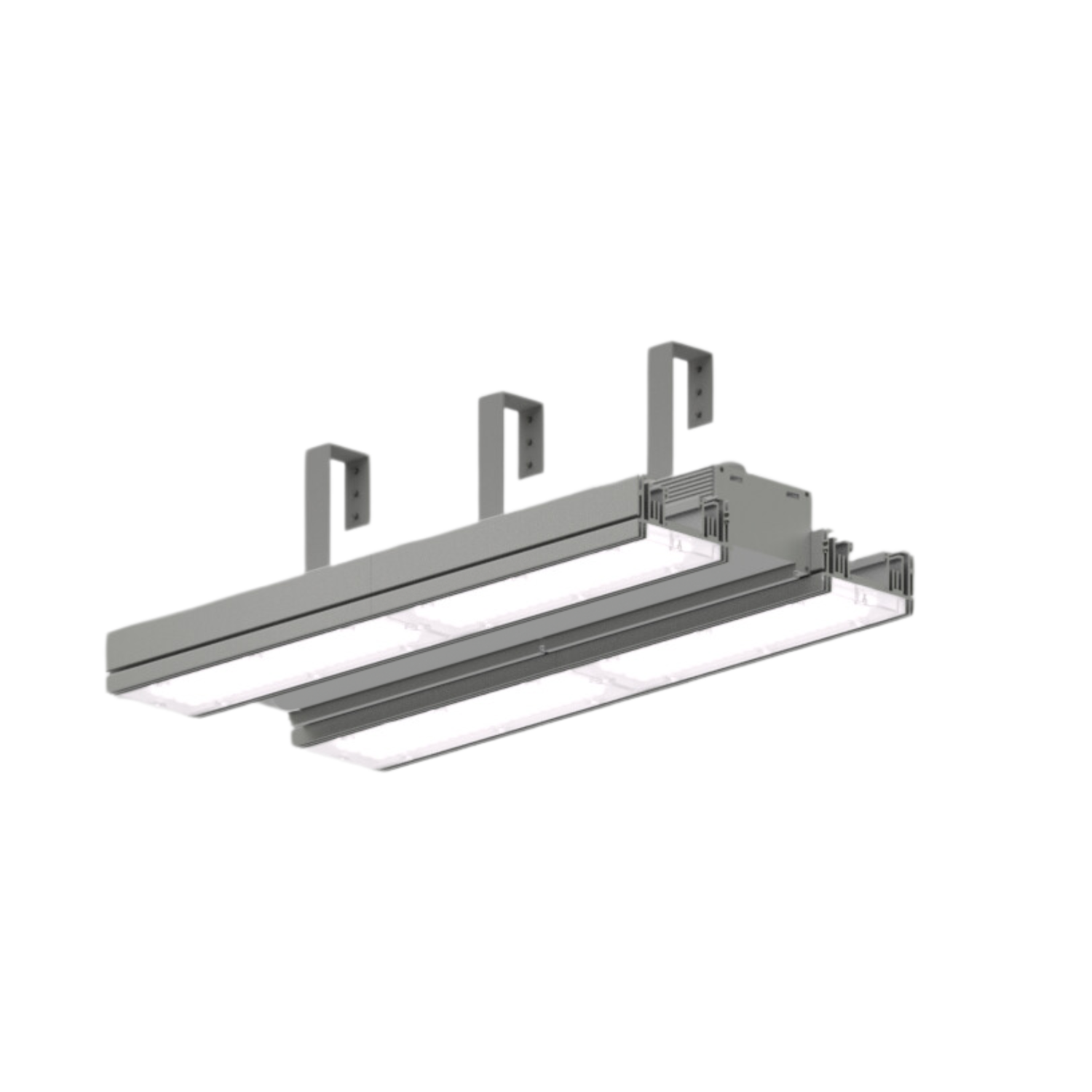

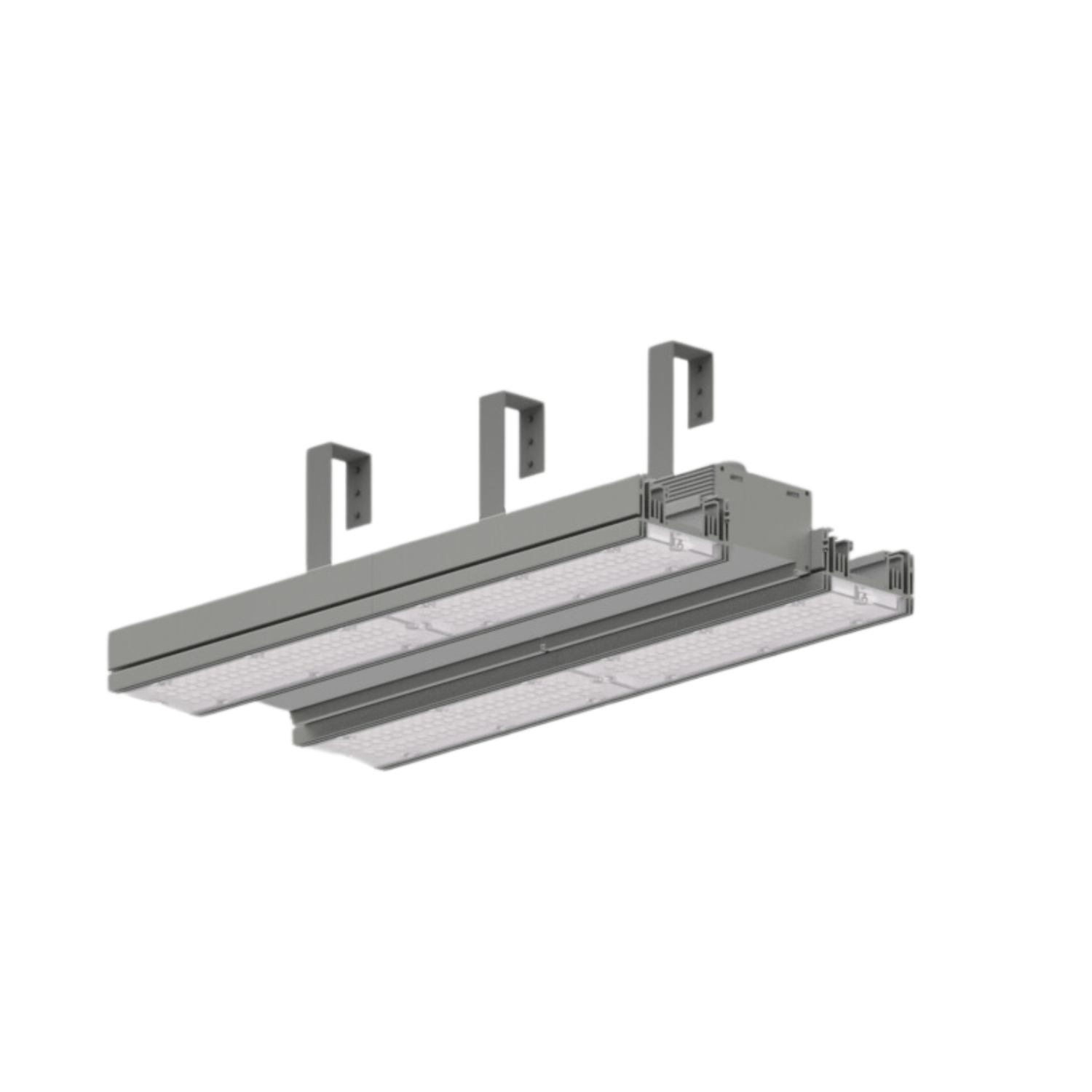

MOD65-C2-L2 LED High Bay (130-240W)

Datasheet Download

IES Files on request

Mounting/Dimensions:

Mounting: P2000 / Eye Bolt for suspension

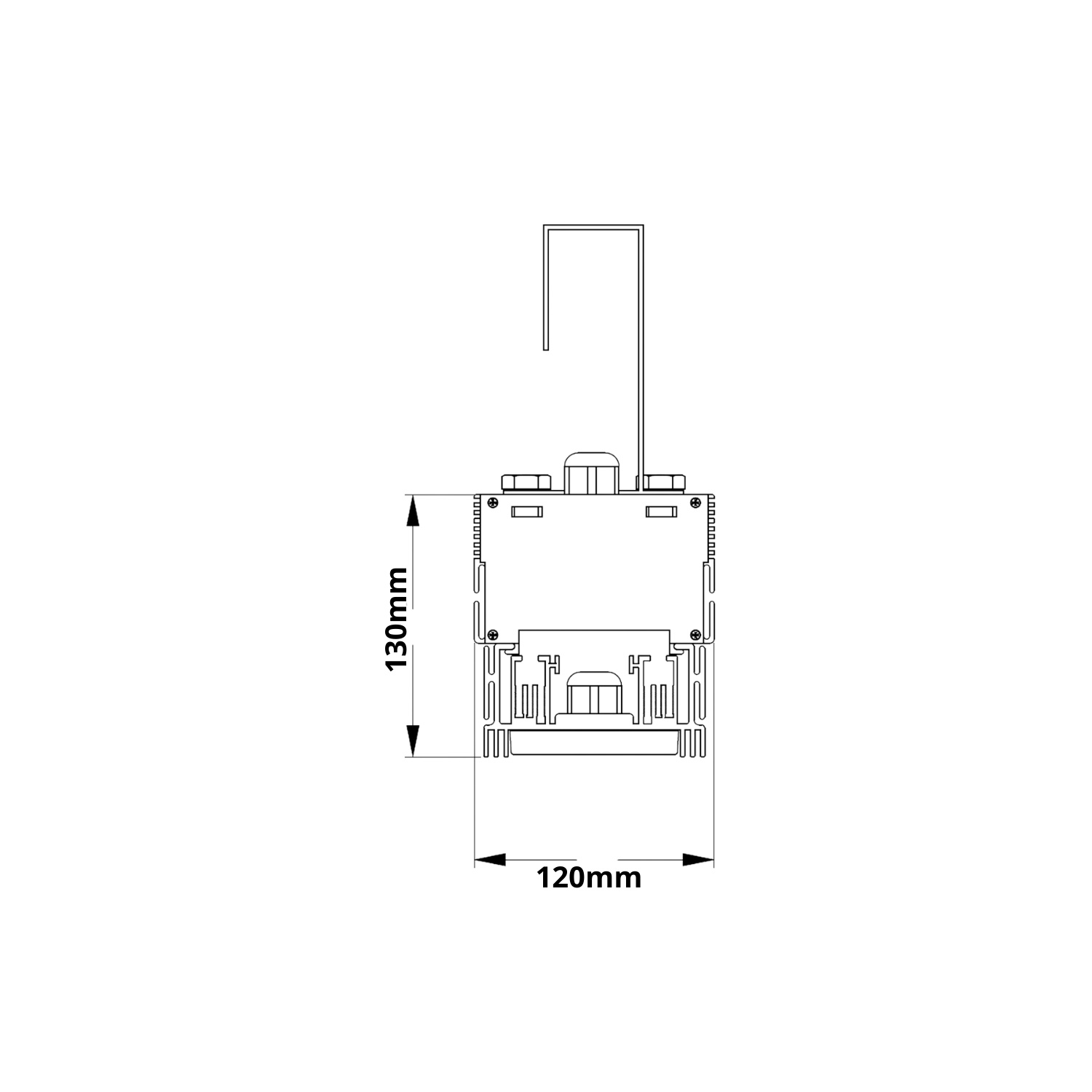

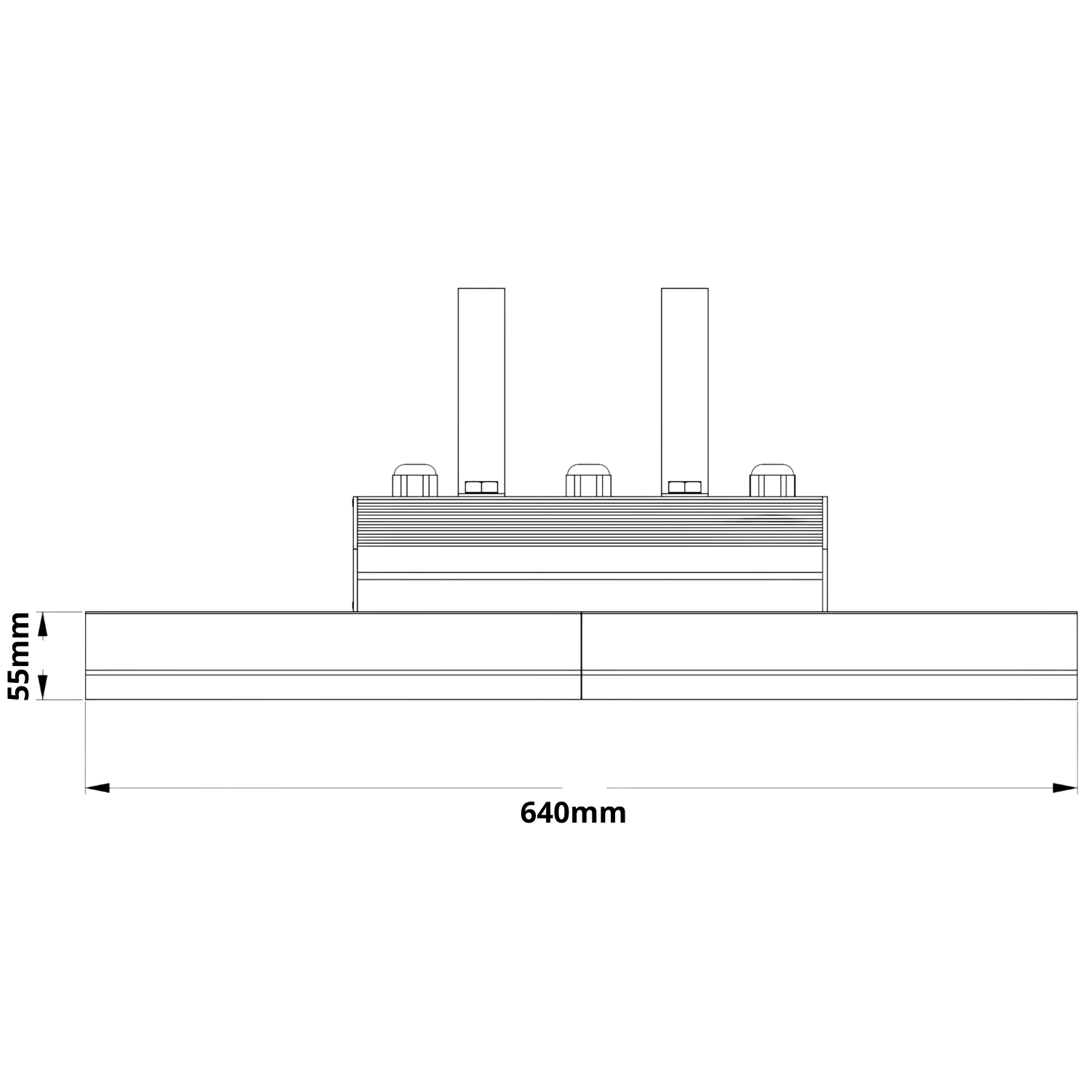

- See line drawing & Datasheet for Dimensions

Performance/ Specifications:

Mounting: P2000 / Eye Bolt for suspension
Nominal Wattage: 130 – 240W
Nominal Lumens: 26,460 – 46,200lm
System Wattage: 140 – 260W
System Lumens: 23,800 – 41,580lm
CRI: ≥ 80
CCT: 4000K
MacAdams: ≤ 3 Step
Distributions: 30° / 60° / 90°
IP: 65
IK: 08
Lumen Maintenance: L80/B10 @ 50 000hrs

Finnish Options:

Grey

Additional features:

Emergency: Integrated 3hr EME kit
Control: DALI
Warranty: 5 Year (T’s and C’s apply)
