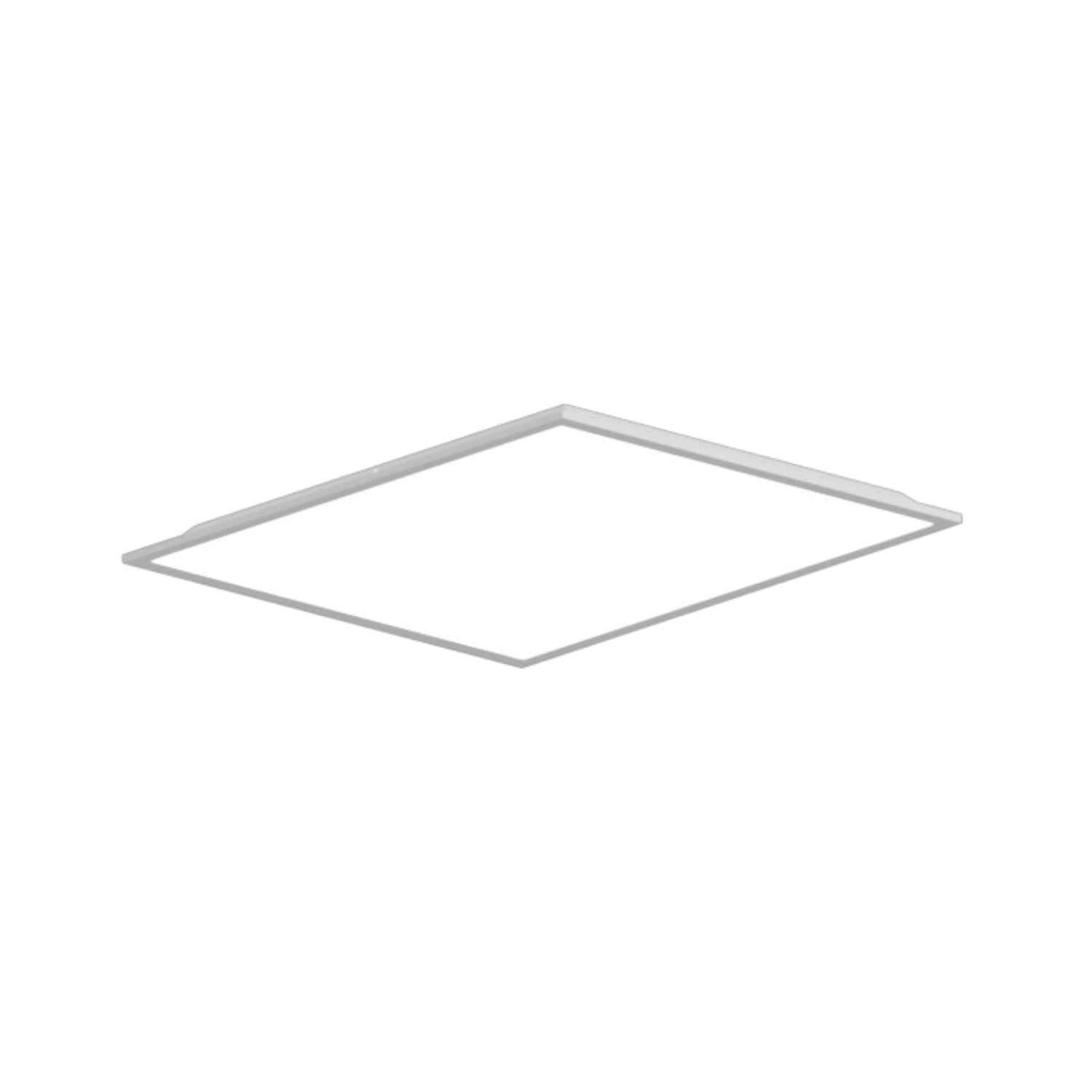

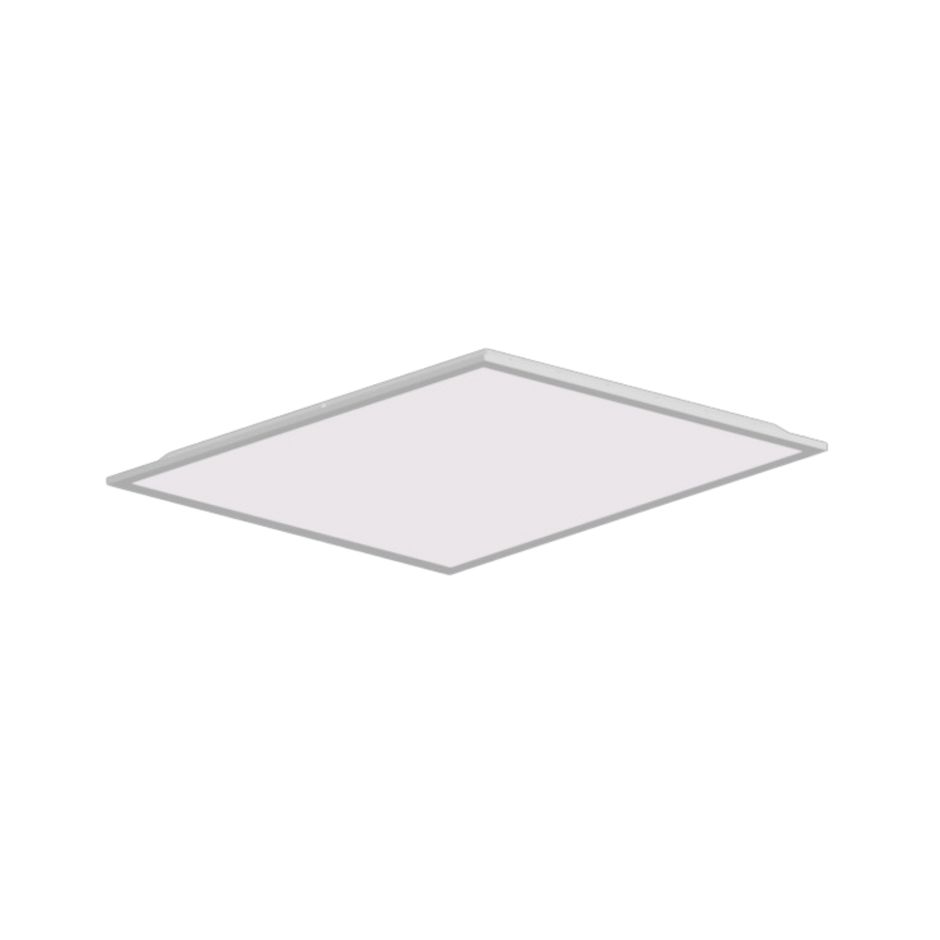

EOS 600 X 600 MEDICAL Back-lit LED Panel (32W)

Datasheet Download

IES Files on request

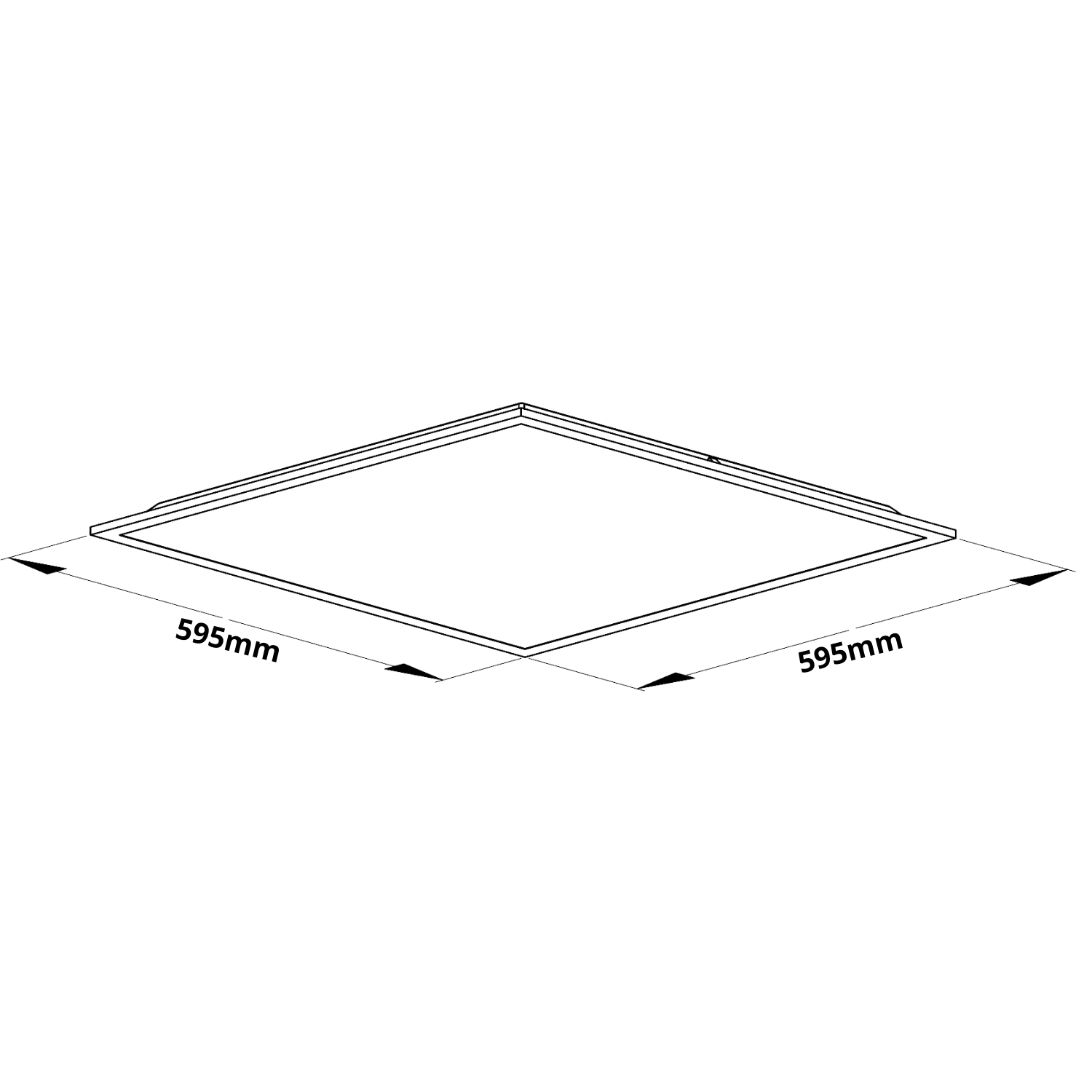

Mounting/Dimensions:

Drop-in ceiling
Surface mounted (Surface mounted frame needed)
Suspended (Surface mounted frame & Suspension kit needed)
Length: 595mm
Width: 595mm

Performance/ Specifications:

System Wattage: 32W
System Lumens: 3,000lm
CRI: ≥ 93
CCT: 4000K
MacAdams: ≤ 5 Step
Distributions: UGR ≤ 19 Diffused
IP: 40
Lumen Maintenance: L70/B50 @ 50 000hrs

Finish Option:

White

Additional Features:

Emergency: Remote 3hr EME kit
Control: DALI
Warranty: 5 Year (T’s & C’s apply)
