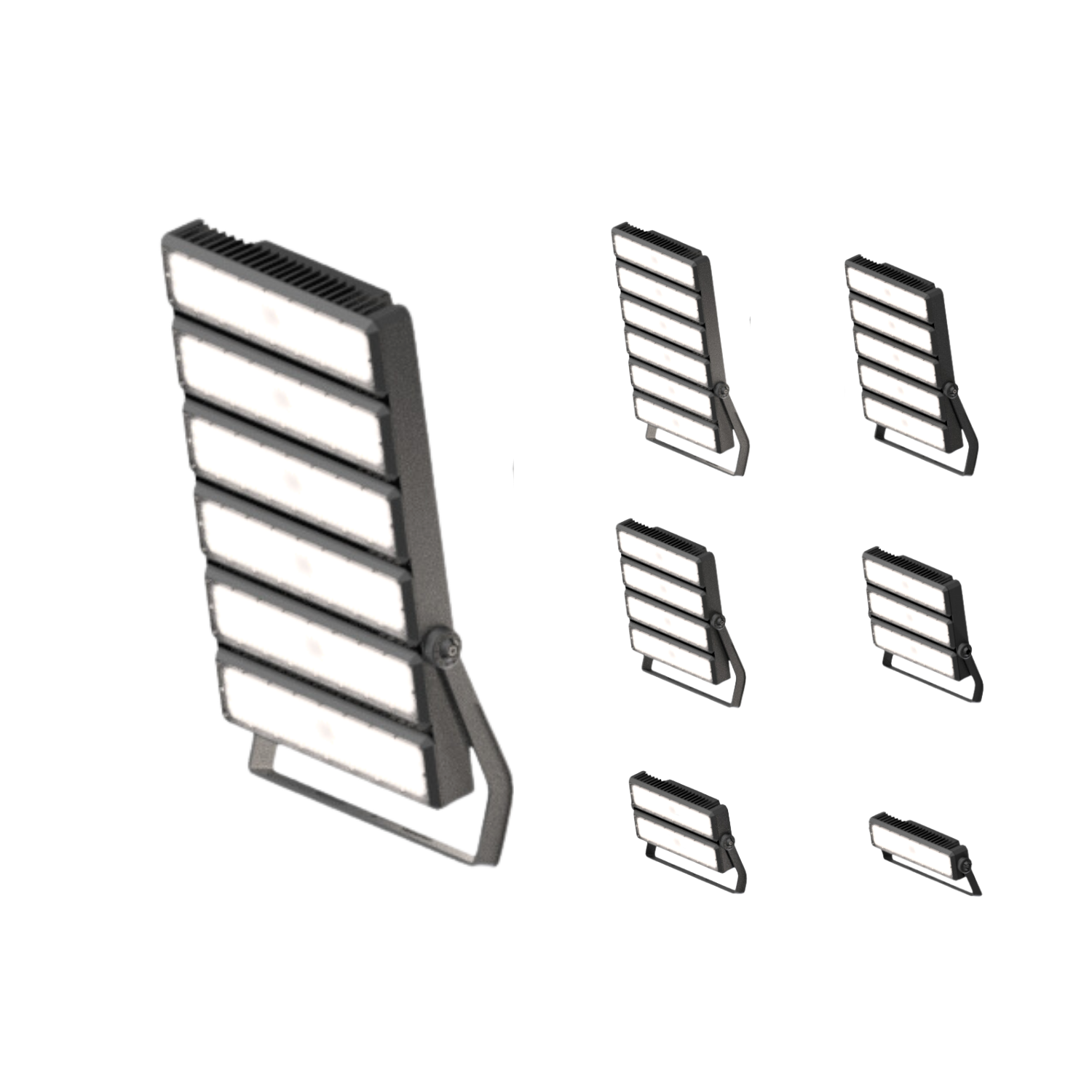

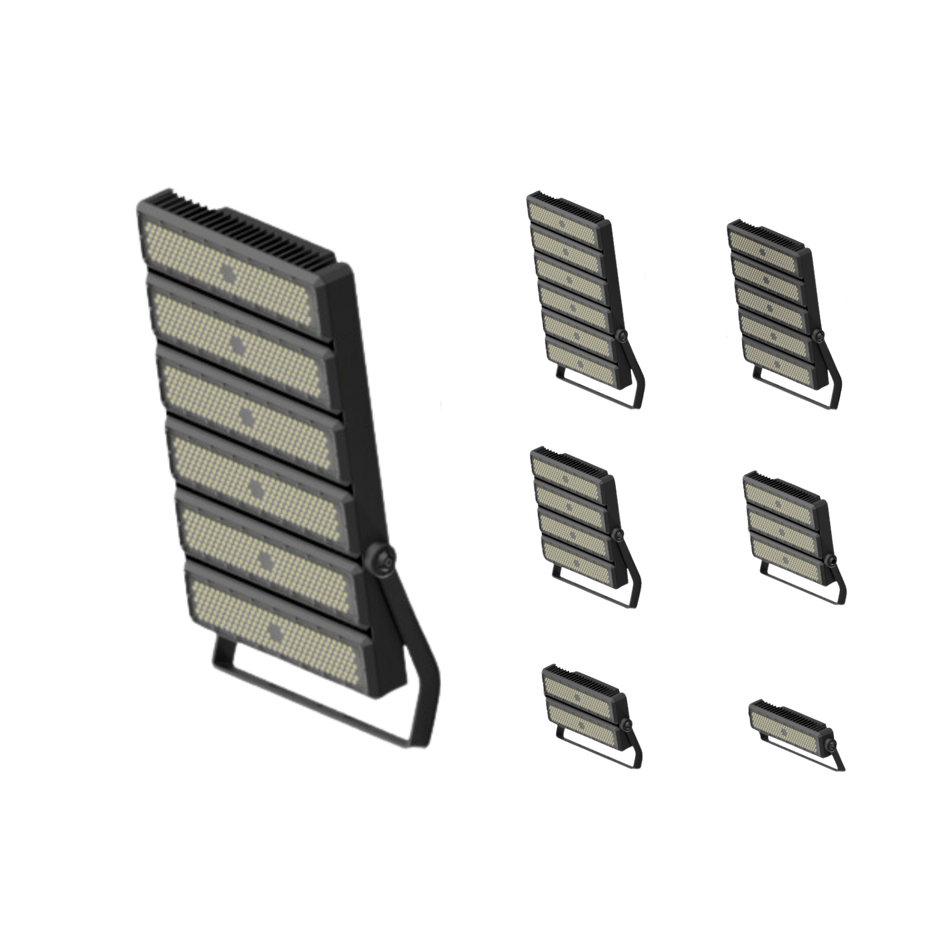

Stadia Floodlight Range (200-1200W)

Datasheet Download

IES Files on request

Mounting/Dimensions:

Bracket/ Surface Mounted

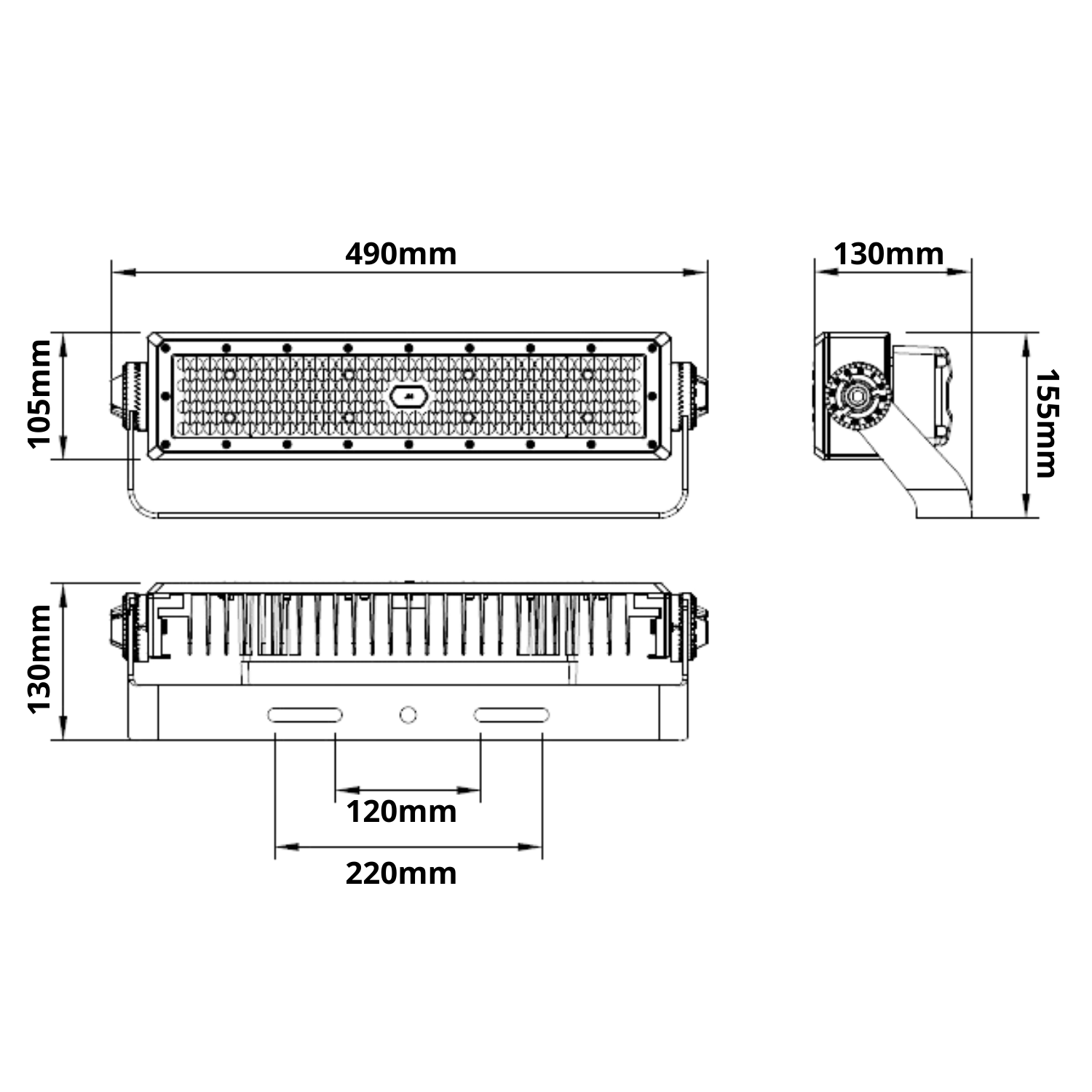

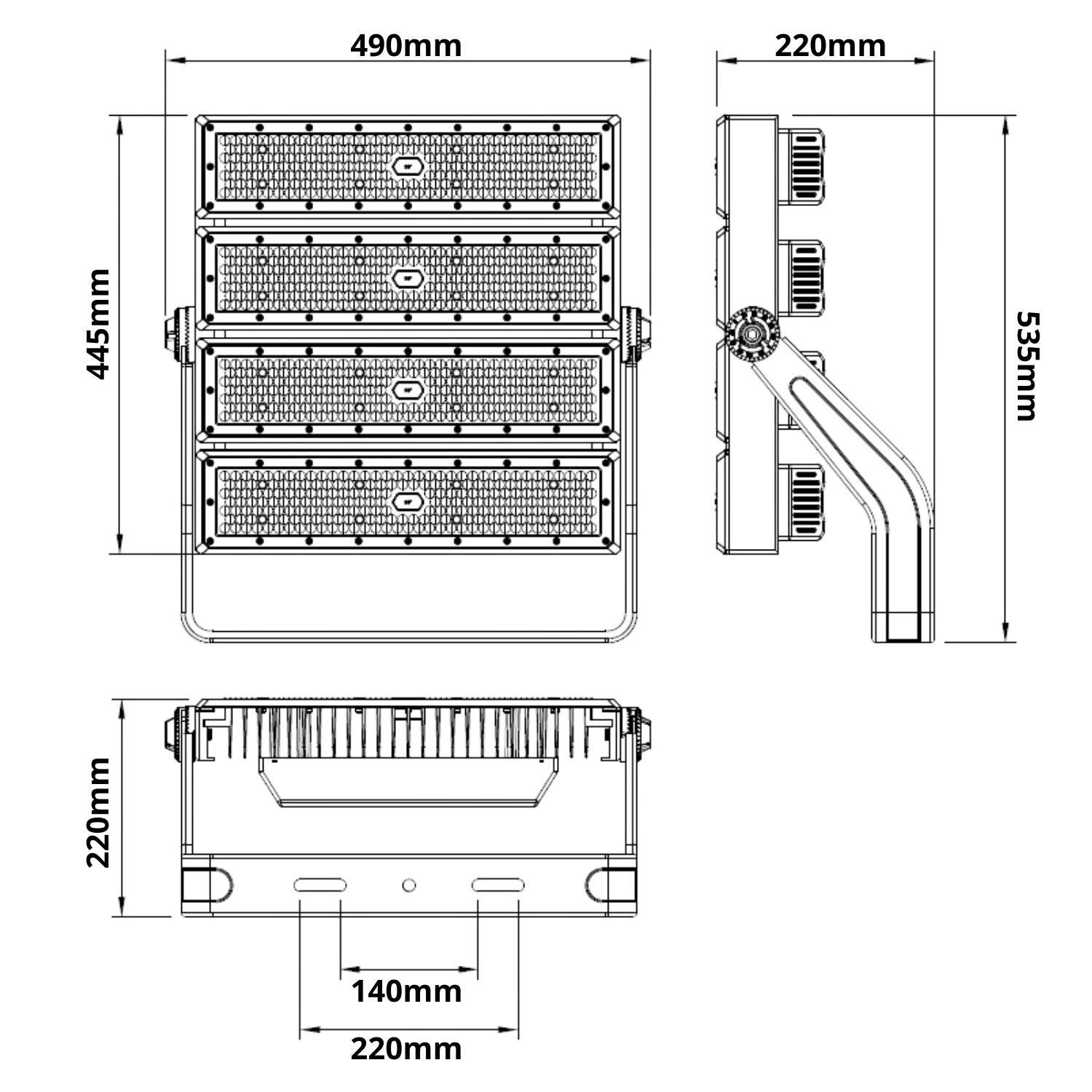

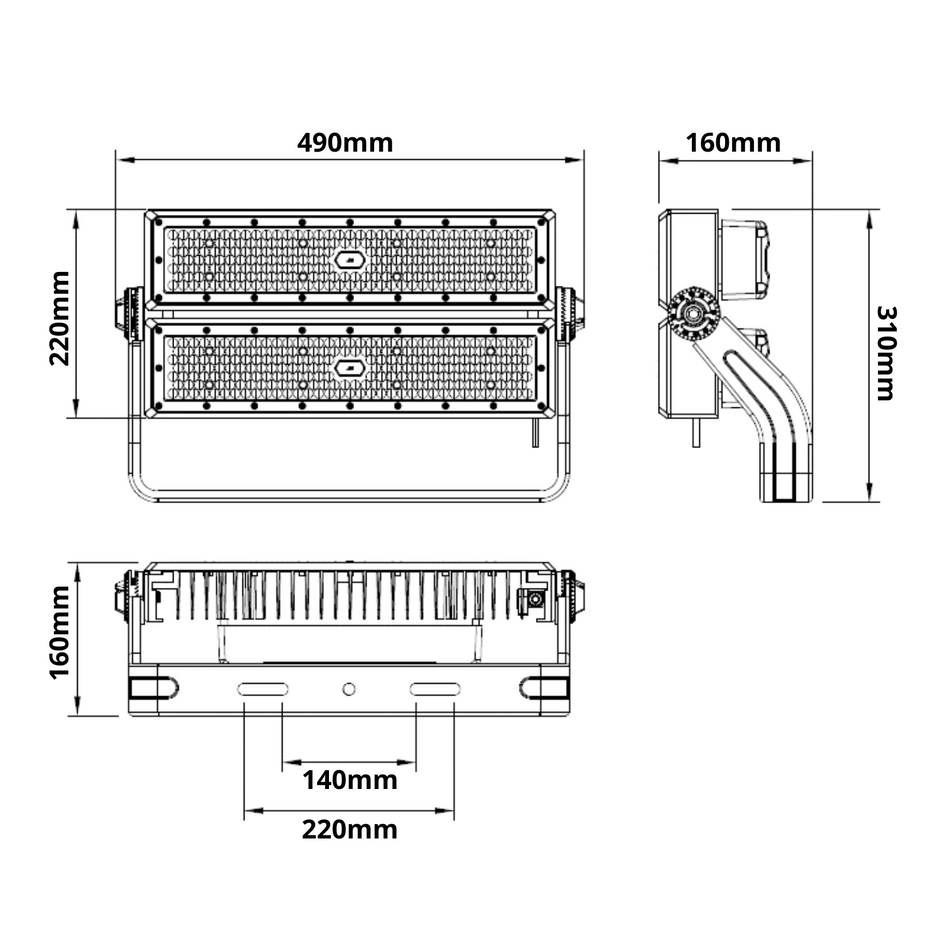

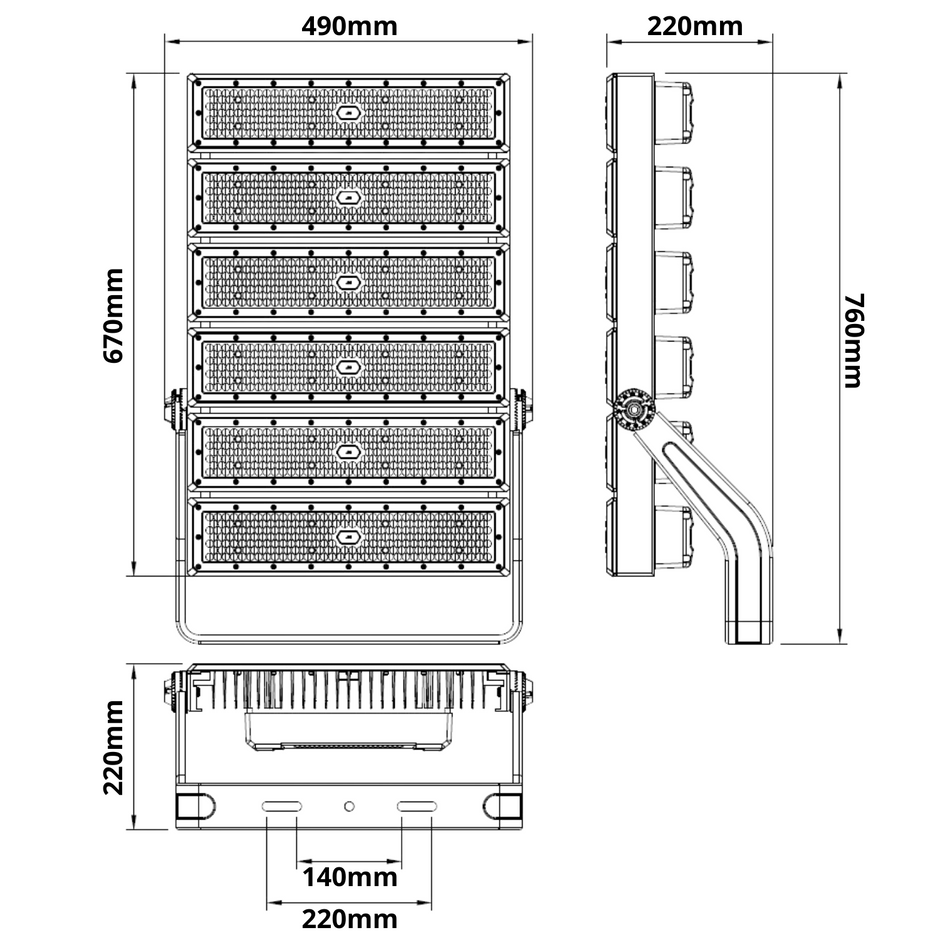

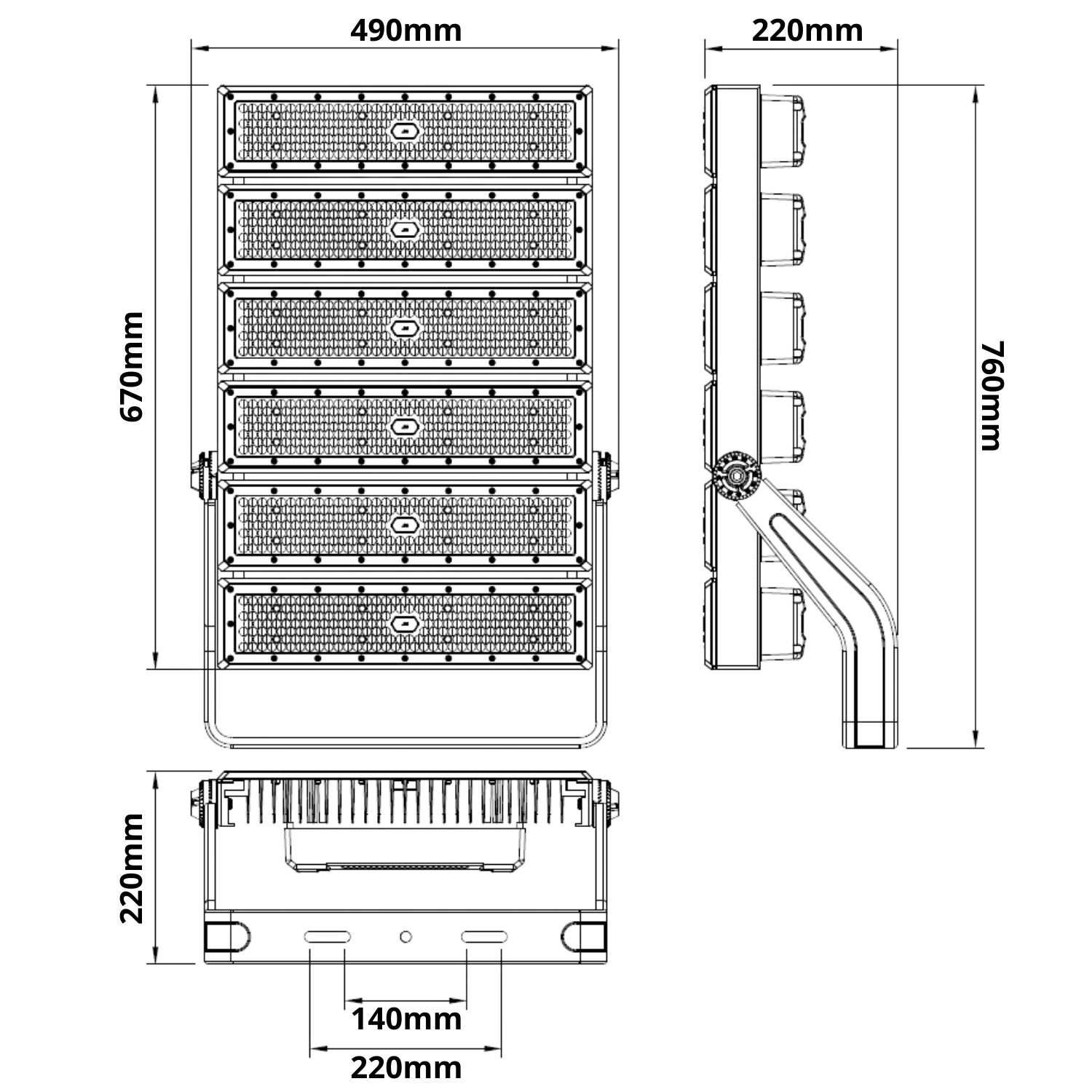

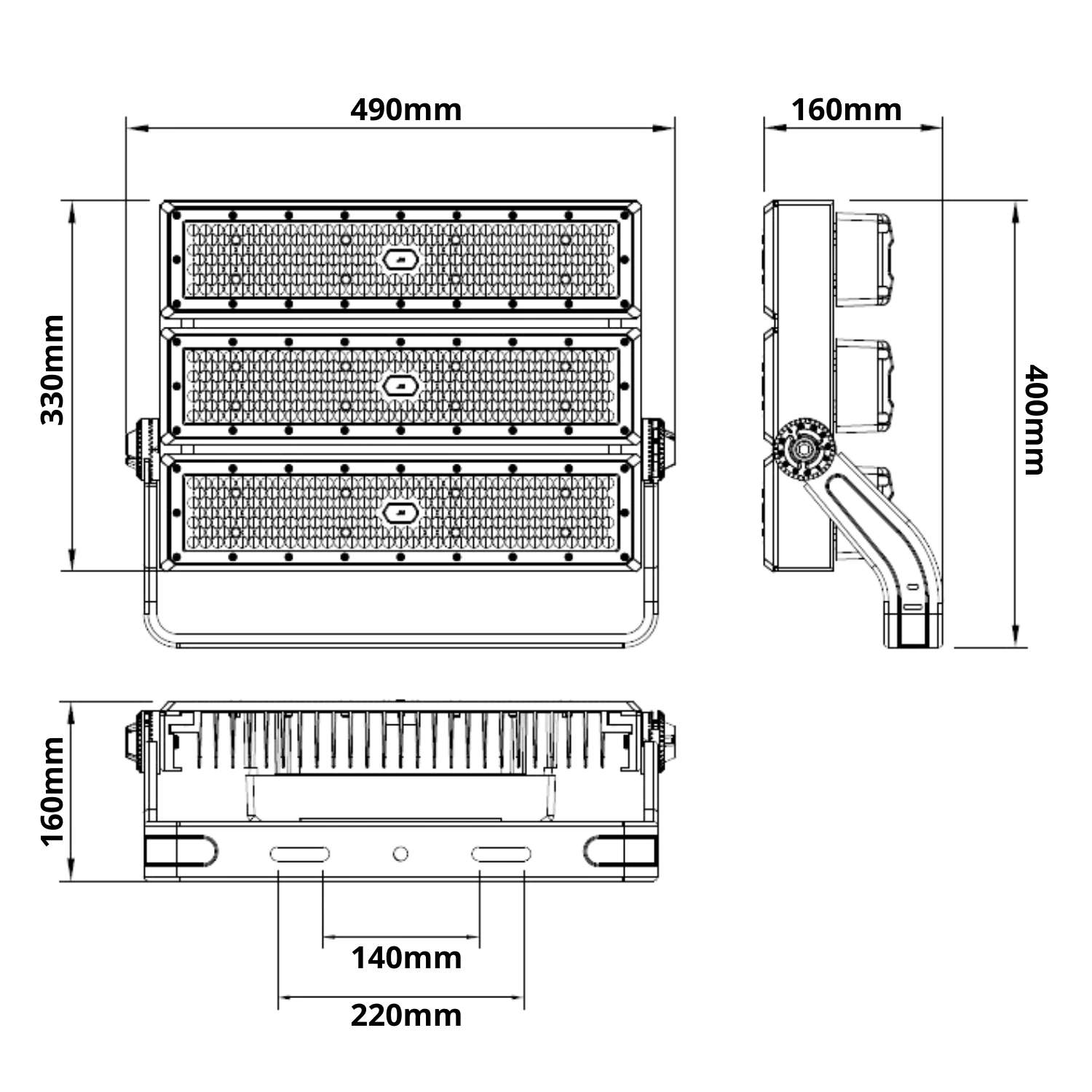

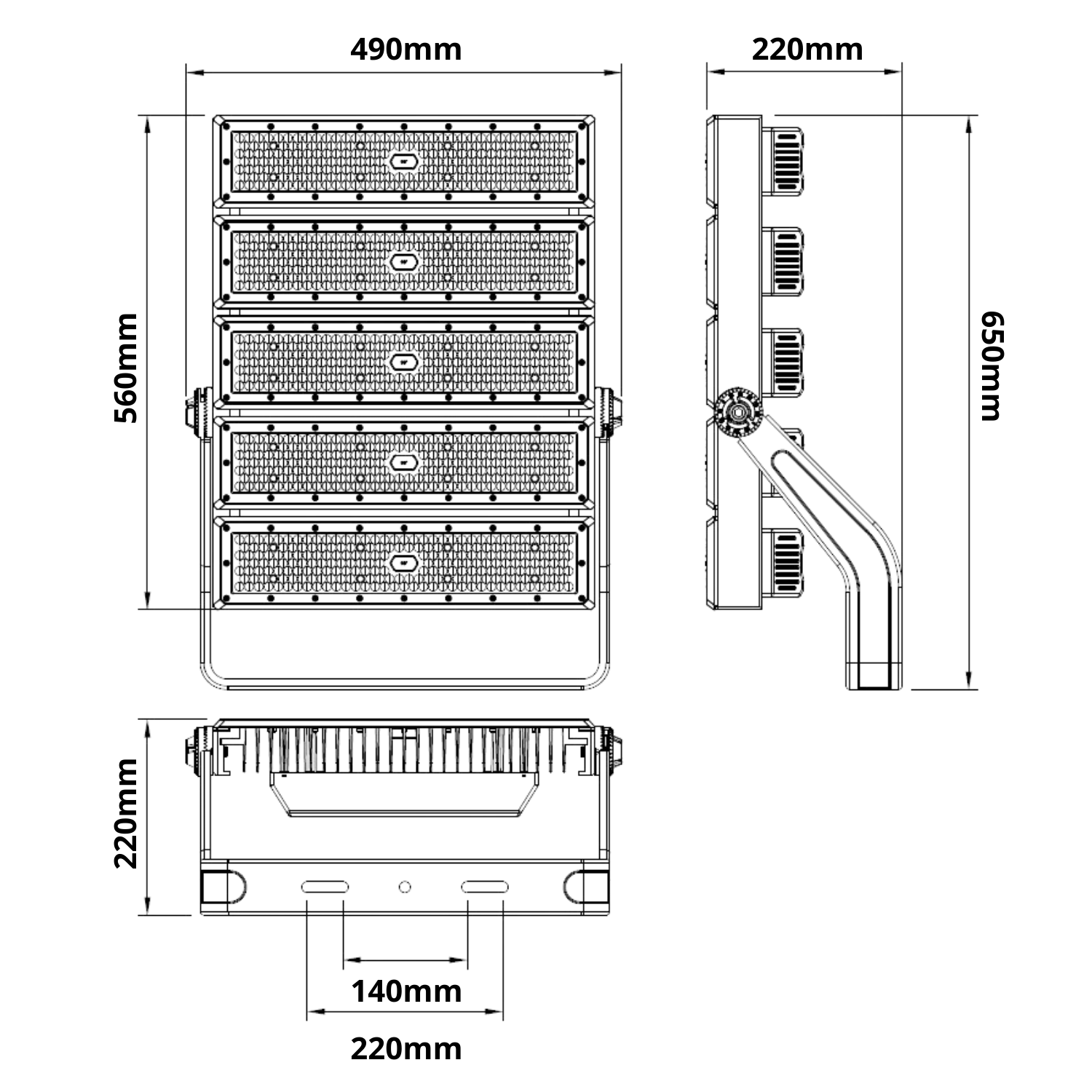

- See line drawing/s & datasheet for dimensions

Performance/ Specifications:

Modular solution
Standard: 200W / 400W / 600W / 1200W

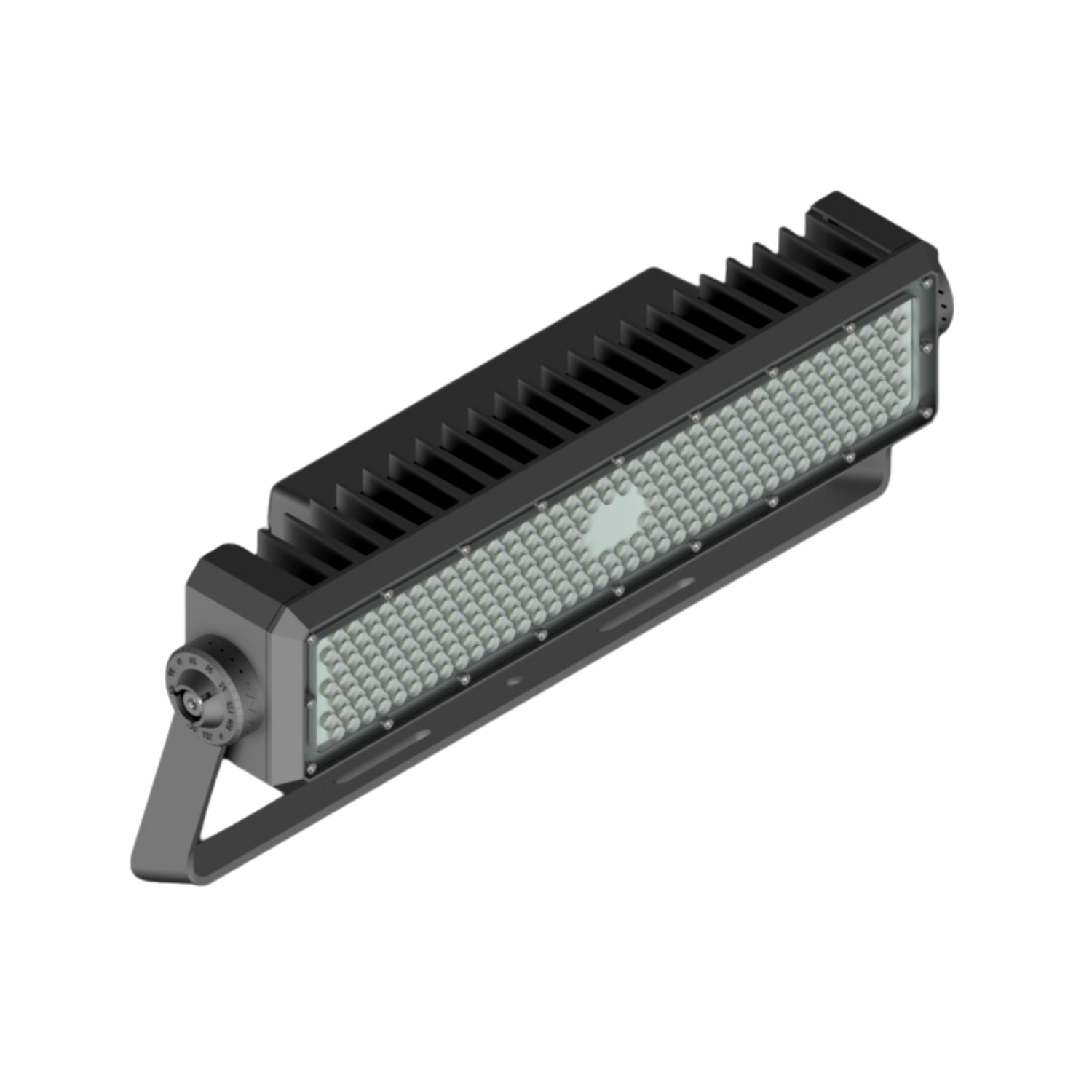

1 x Module:
System Wattage: 140 – 200W
System Lumens: 19,880 – 28,700lm
CRI: ≥ 80
CCT: 5000K
Distributions: 140° X 80° / 60° / 30° / 90°
IK: 08
IP: 66
Lumen Maintenance: L80/B10 @ 50 000hrs

2 x Modules:
System Wattage: 280 – 400W
System Lumens: 39,760 – 57,400lm
CRI: ≥ 80
CCT: 5000K
Distributions: 140° X 80° / 60° / 30° / 90°
IK: 08
IP: 66
Lumen Maintenance: L80/B10 @ 50 000hrs

3 x Modules:
System Wattage: 420 – 600W
System Lumens: 59,640 – 86,100lm
CRI: ≥ 80
CCT: 5000K
Distributions: 140° X 80° / 60° / 30° / 90°
IK: 08
IP: 66
Lumen Maintenance: L80/B10 @ 50 000hrs

4 x Modules:
System Wattage: 560 – 800W
System Lumens: 79,520 – 114,800lm
CRI: ≥ 80
CCT: 5000K
Distributions: 140° X 80° / 60° / 30° / 90°
IK: 08
IP: 66
Lumen Maintenance: L80/B10 @ 50 000hrs

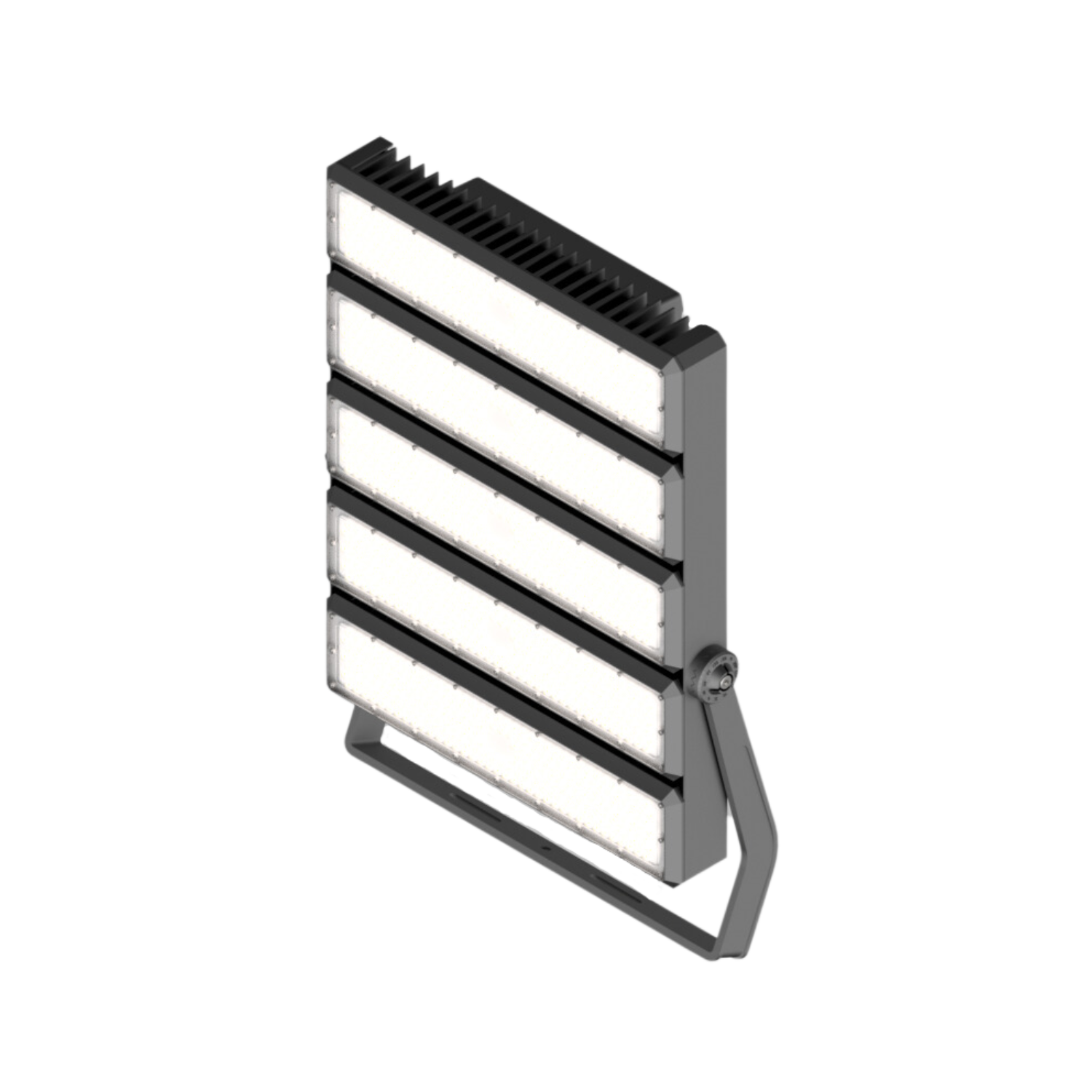

5 x Modules:
System Wattage: 700 – 1000W
System Lumens: 99,400 – 143,500lm
CRI: ≥ 80
CCT: 5000K
Distributions: 140° X 80° / 60° / 30° / 90°
IK: 08
IP: 66
Lumen Maintenance: L80/B10 @ 50 000hrs

6 x Modules:
System Wattage: 840 – 1200W
System Lumens: 119,280 – 172,000lm
CRI: ≥ 80
CCT: 5000K
Distributions: 140° X 80° / 60° / 30° / 90°
IK: 08
IP: 66
Lumen Maintenance: L80/B10 @ 50 000hrs

Finnish Options:

Grey

Warranty:

Warranty: 5 Year (T’s & C’s apply)
