Larvik LED Floodlight Range (30-300W)

Datasheet Download

IES Files on request

Mounting/Dimensions:

Bracket/Surface mount

30W: 220 x 173 x 50mm
50W: 290 x 205 x 65mm
80/100W: 335 x 250 x 70mm
150/200W: 395 x 300 x 100mm
240/300W: 395 x 450 x 100mm
- See line drawing & datasheet for dimensions

Performance/ Specifications:

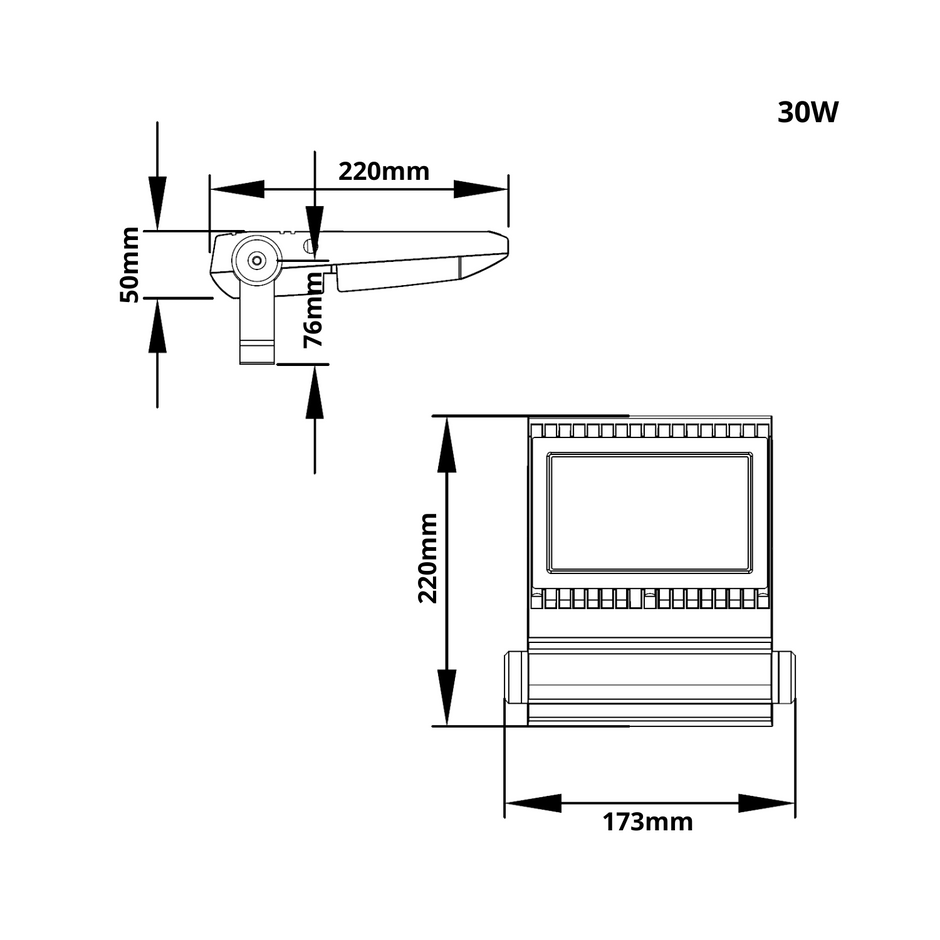

30W:
Dimensions: 220 x 173 x 50mm
System Wattage: 30W
System Lumens: 3,820lm
CRI: ≥ 70
CCT: 5000K
Distributions: 85° X 135° / 30° / 60°
IK: 08
IP: 65
Lumen Maintenance: L80/B10 @ 50 000hrs

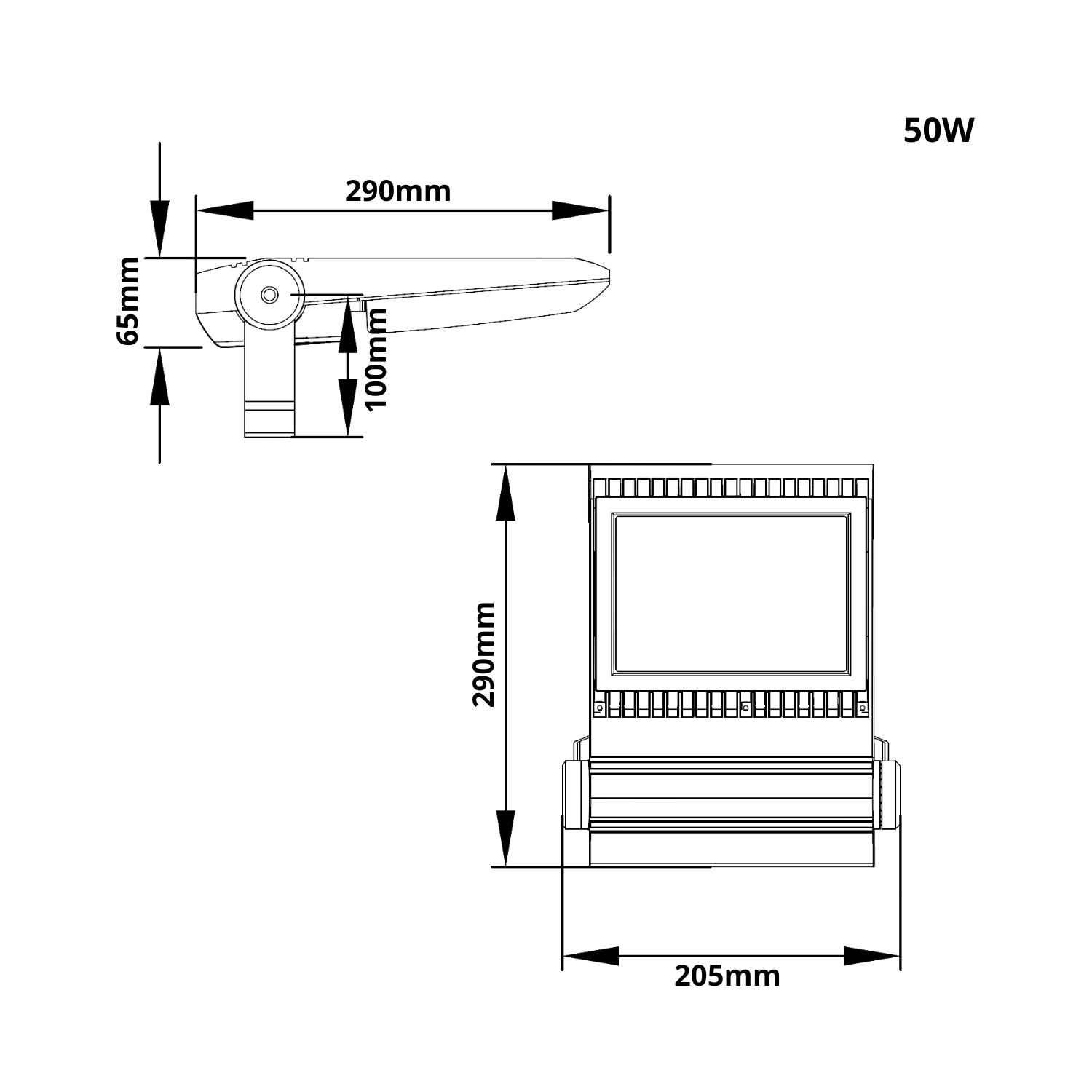

50W:
Dimensions: 290 x 205 x 65mm
System Wattage: 50W
System Lumens: 6,350lm
CRI: ≥ 70
CCT: 5000K
Distributions: 85° X 135° / 30° / 60°
IK: 08
IP: 65
Lumen Maintenance: L80/B10 @ 50 000hrs

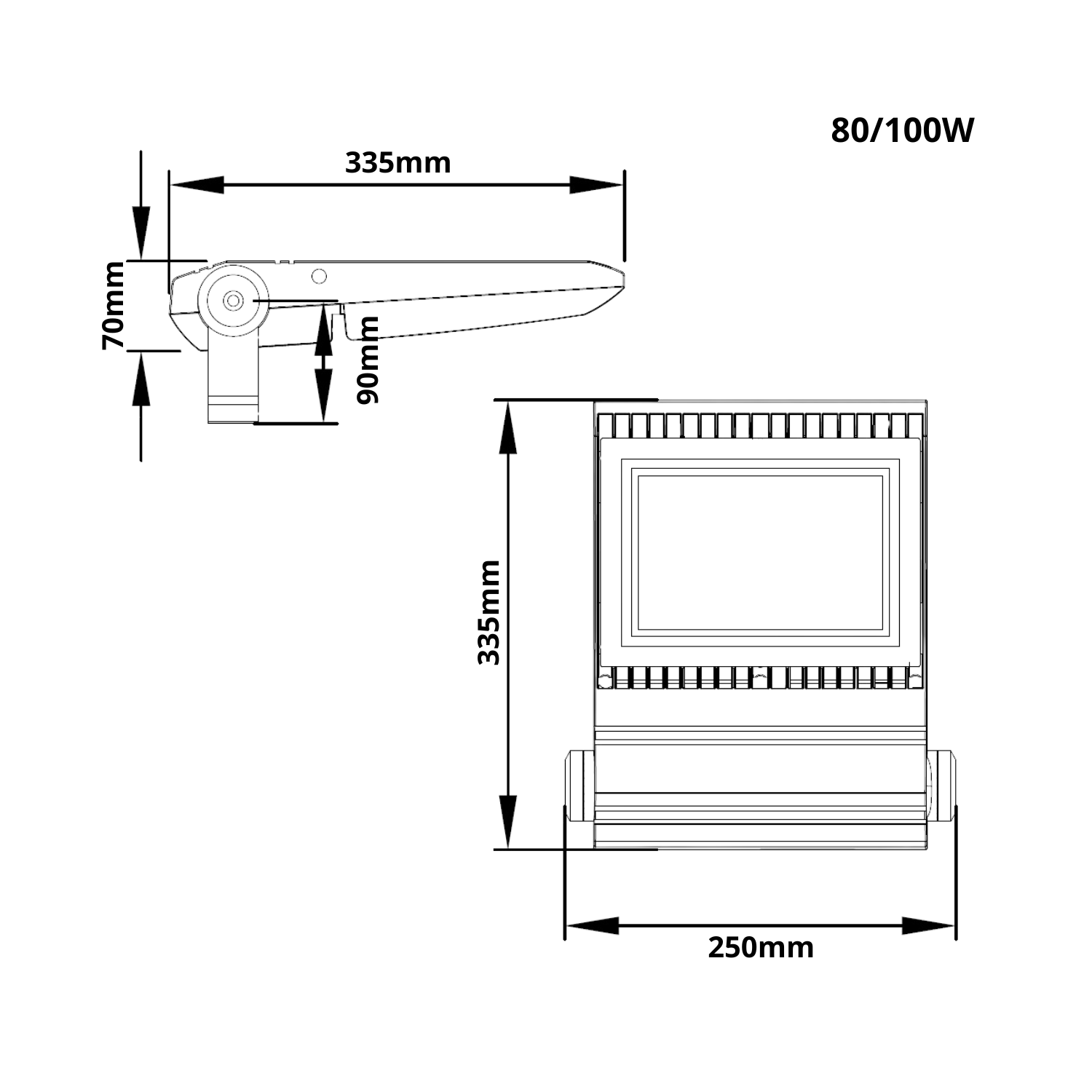

80W / 100W:
Dimensions: 335 x 250 x 70mm
System Wattage: 80W
System Lumens: 9,950lm
System Wattage: 100W
System Lumens: 12,470lm
CRI: ≥ 70
CCT: 5000K
Distributions: 85° X 135° / 30° / 60°
IK: 08
IP: 65
Lumen Maintenance: L80/B10 @ 50 000hrs

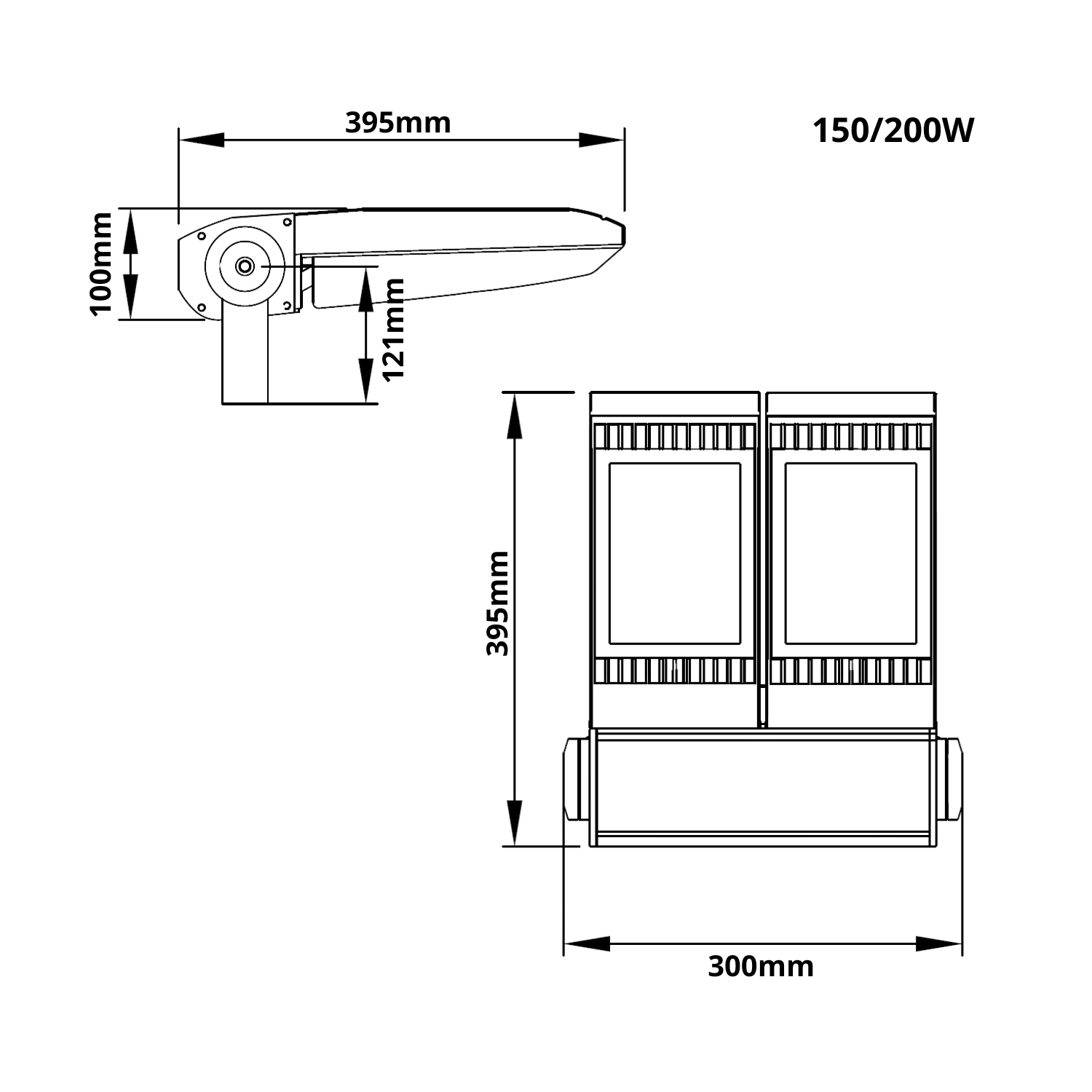

150W / 200W:
Dimensions: 395 x 300 x 100mm
System Wattage: 150W
System Lumens: 18,810lm
System Wattage: 200W
System Lumens: 25,050lm
CRI: ≥ 70
CCT: 5000K
Distributions: 85° X 135° / 30° / 60°
IK: 08
IP: 65
Lumen Maintenance: L80/B10 @ 50 000hrs

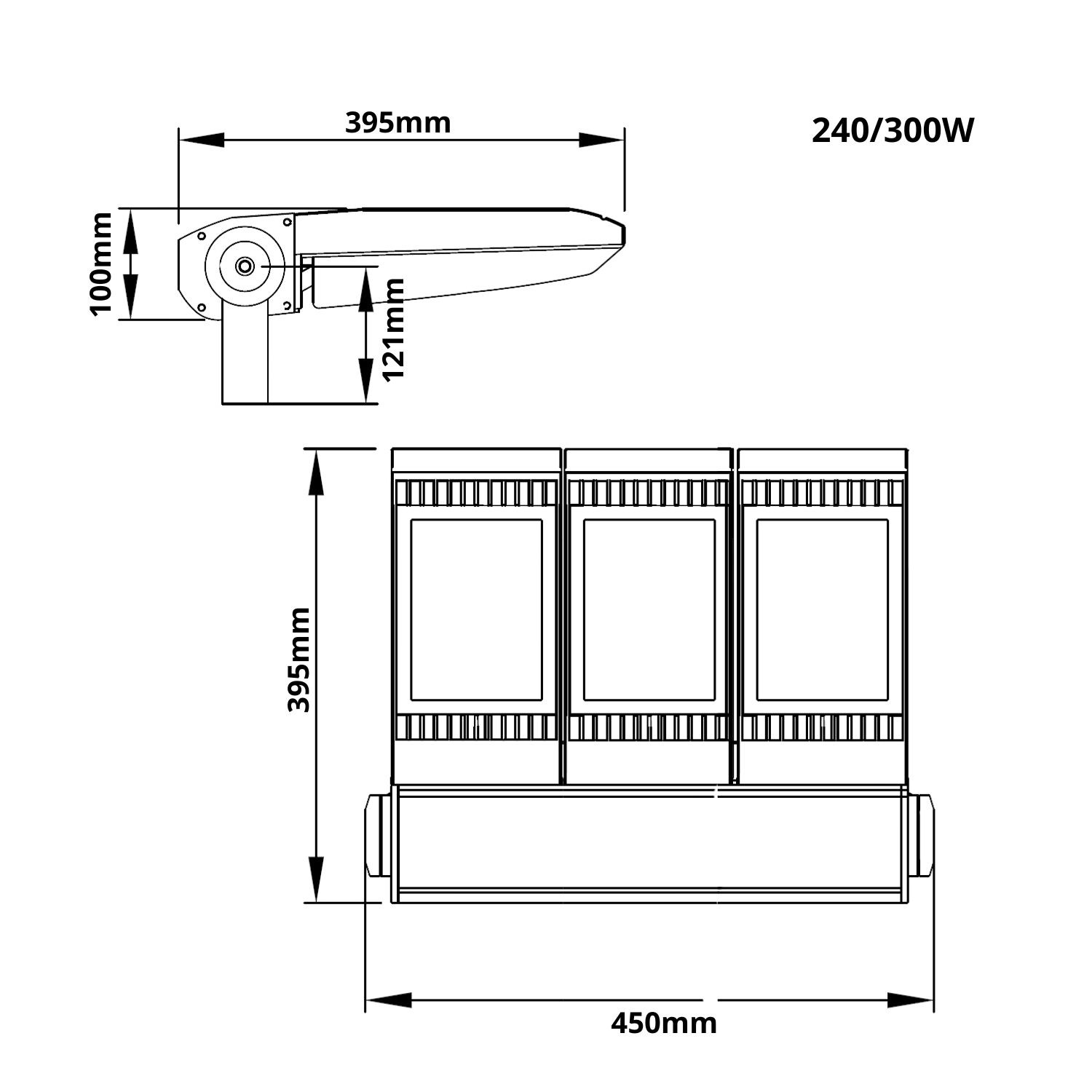

240W / 300W:
Dimensions: 395 x 450 x 100mm
System Wattage: 240W
System Lumens: 30,010lm
System Wattage: 300W
System Lumens: 37,525lm
CRI: ≥ 70
CCT: 5000K
Distributions: 85° X 135° / 30° / 60°
IK: 08
IP: 65
Lumen Maintenance: L80/B10 @ 50 000hrs

Finish Option:

Black

Warranty:

Warranty: 5 Year (T’s & C’s apply)
