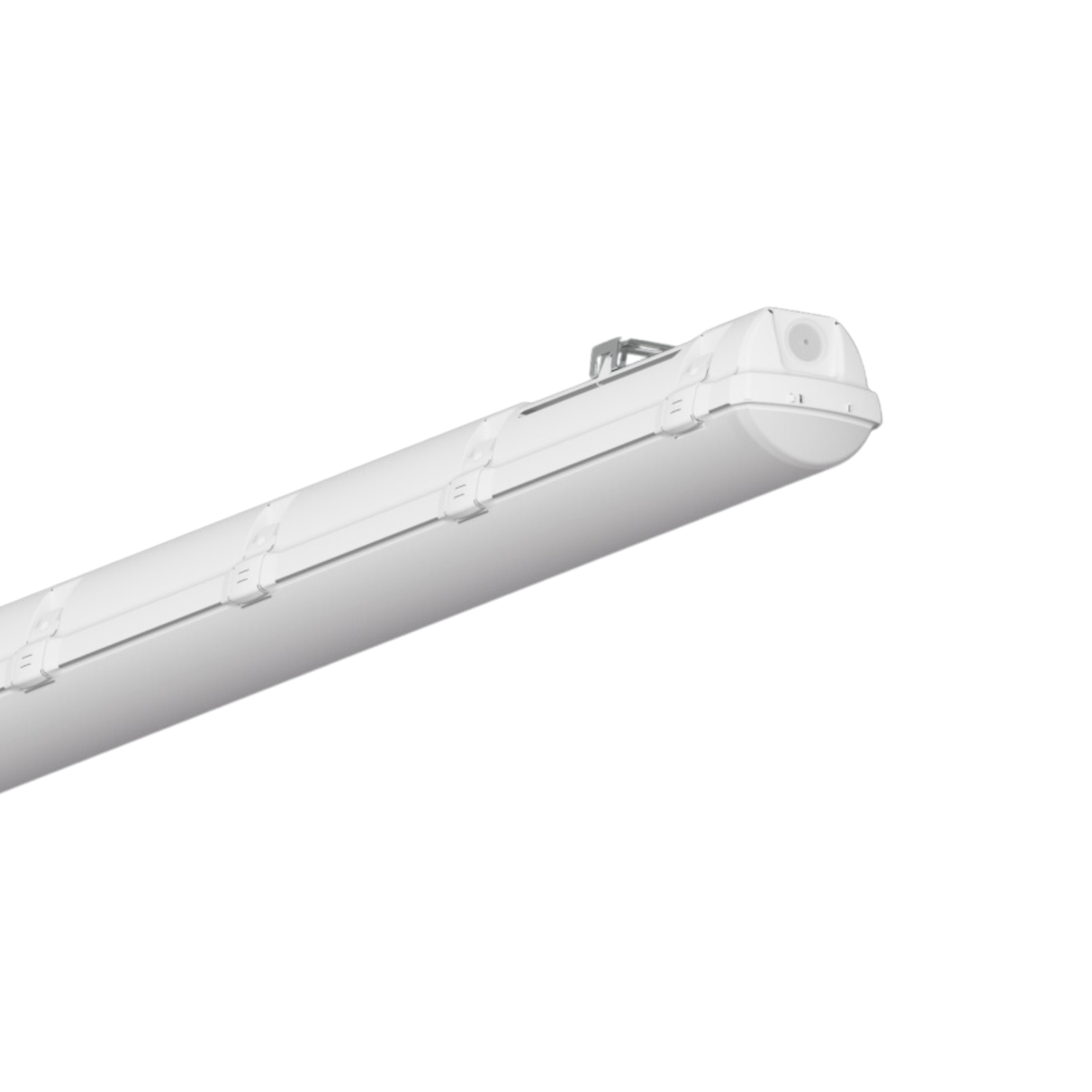

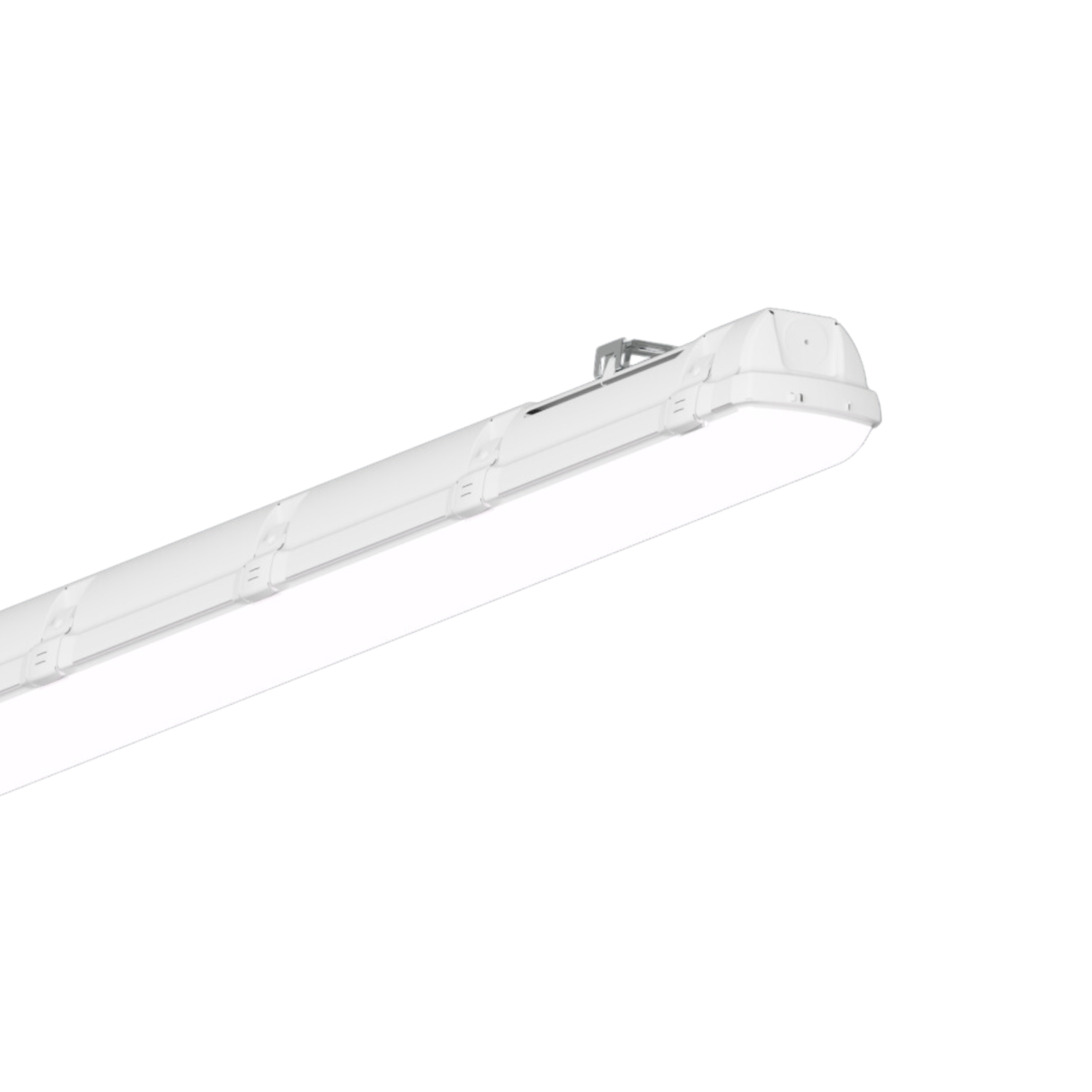

Marea LED Batten V2 - SENS Range (2-5ft)

Datasheet Download

IES Files on request

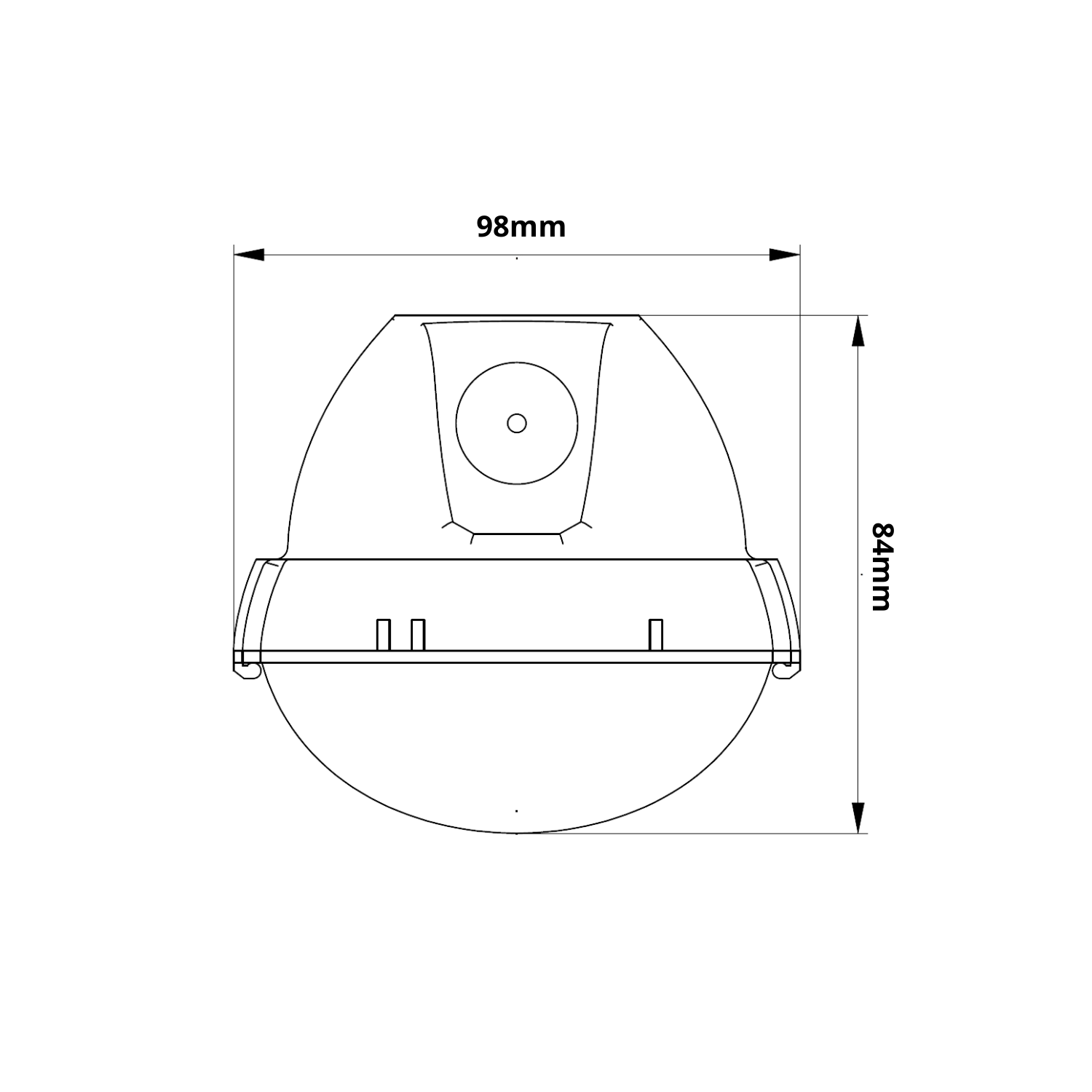

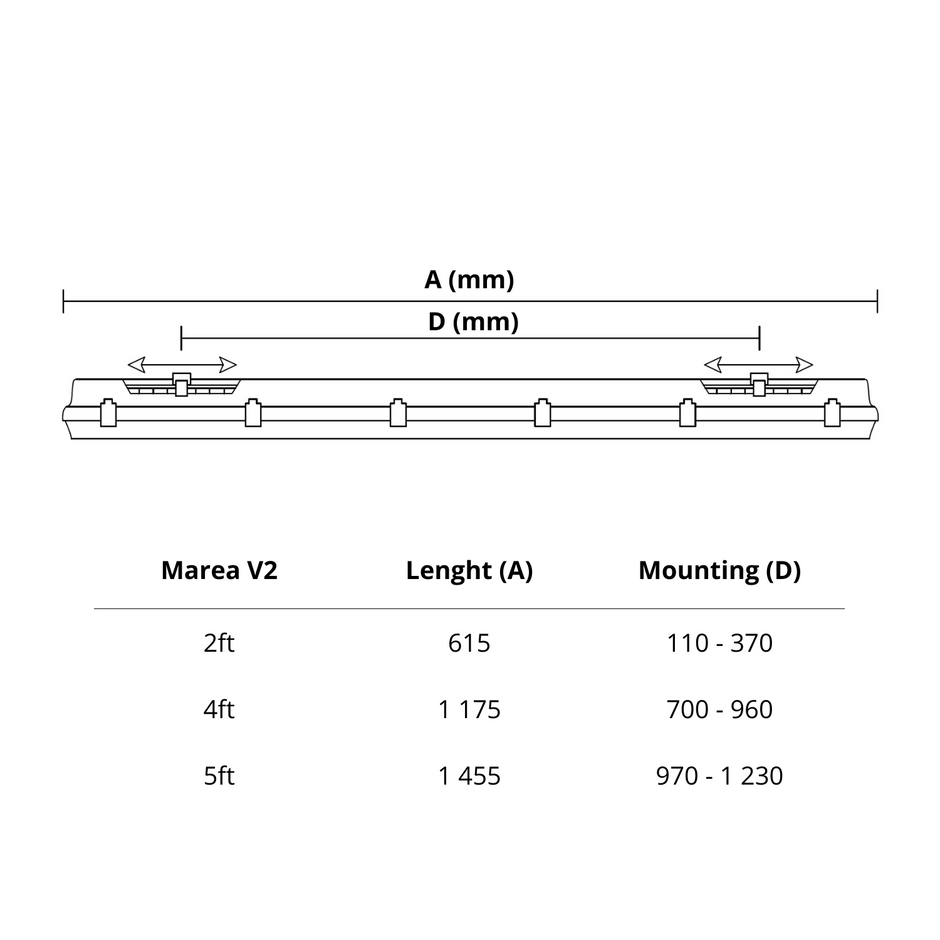

Mounting/Dimensions:

Surface
Suspended

4ft: 1175mm
5ft: 1455mm

Performance/ specifications:

4ft - Marea V2:
Length: 1,175mm
Nominal Wattage: 22 – 31W
Nominal Lumens: 4,151 – 5,709lm
System Wattage: 24 – 35W
System Lumens: 3,735 – 5,135lm
Lumen Maintenance: L80/B10 @ 50 000hrs

5ft - Marea V2:
Length: 1,455mm
Nominal Wattage: 27 – 39W
Nominal Lumens: 5,185 – 7,135lm
System Wattage: 30 – 43W
System Lumens: 4,670 – 6,420lm
Lumen Maintenance: L80/B10 @ 50 000hrs

Finnish Options:

White

Additional Features:

Emergency: Integrated 3hr EME kit
Control: DALI/Step DIM
Warranty: 5 Year (T’s & C’s apply)
