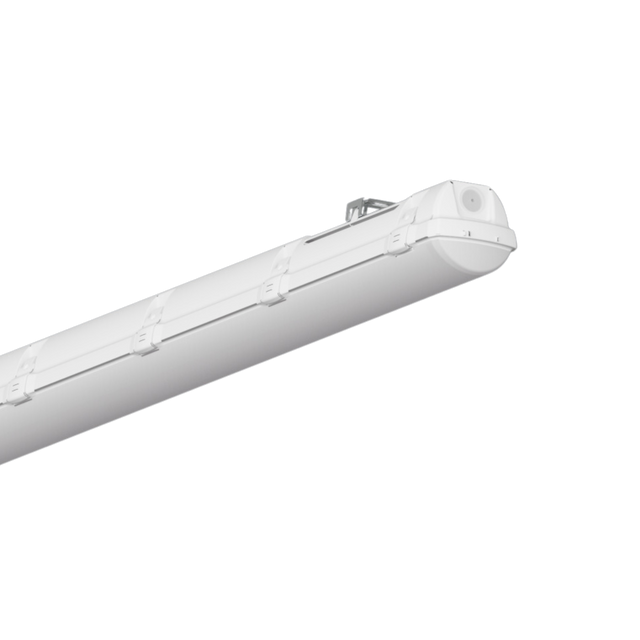

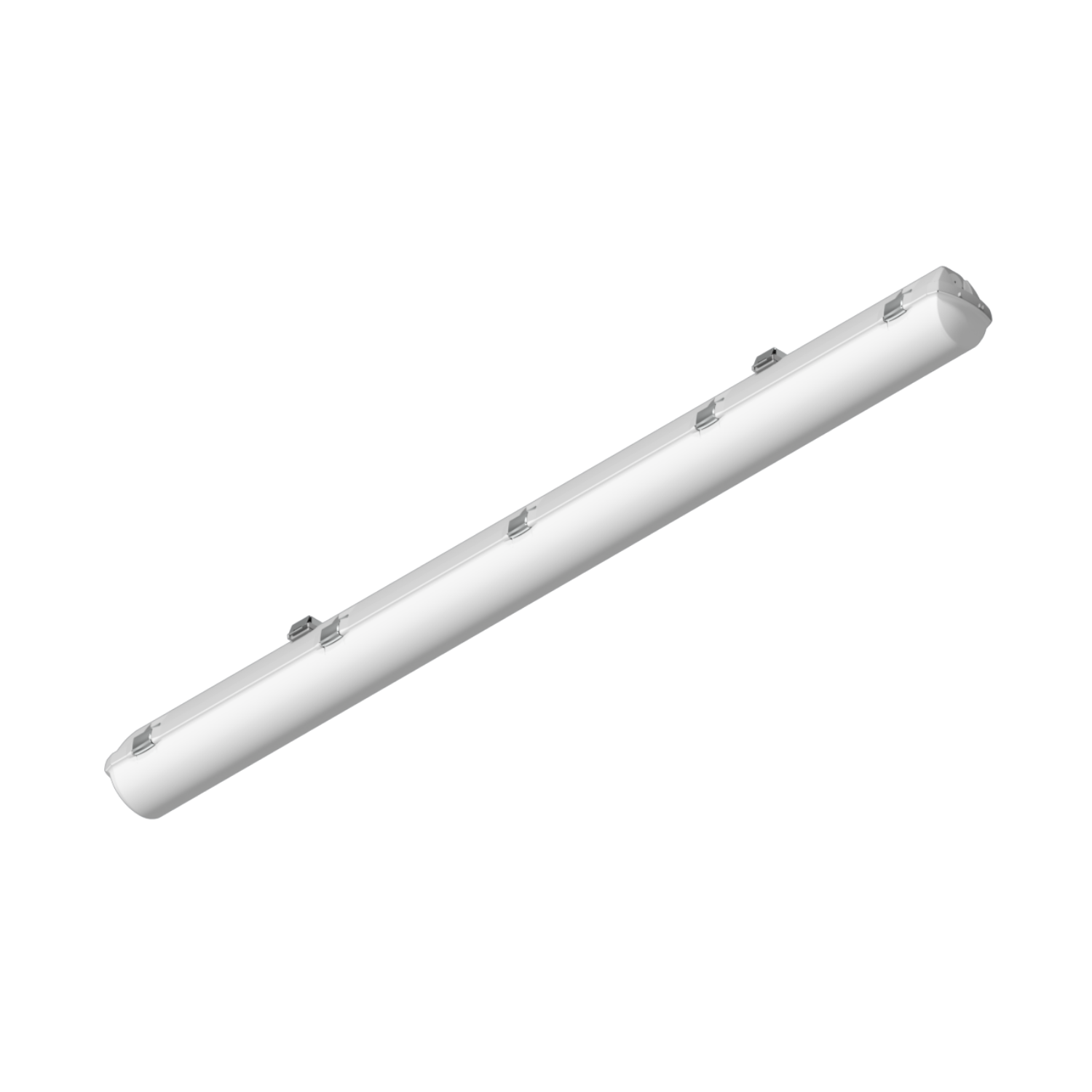

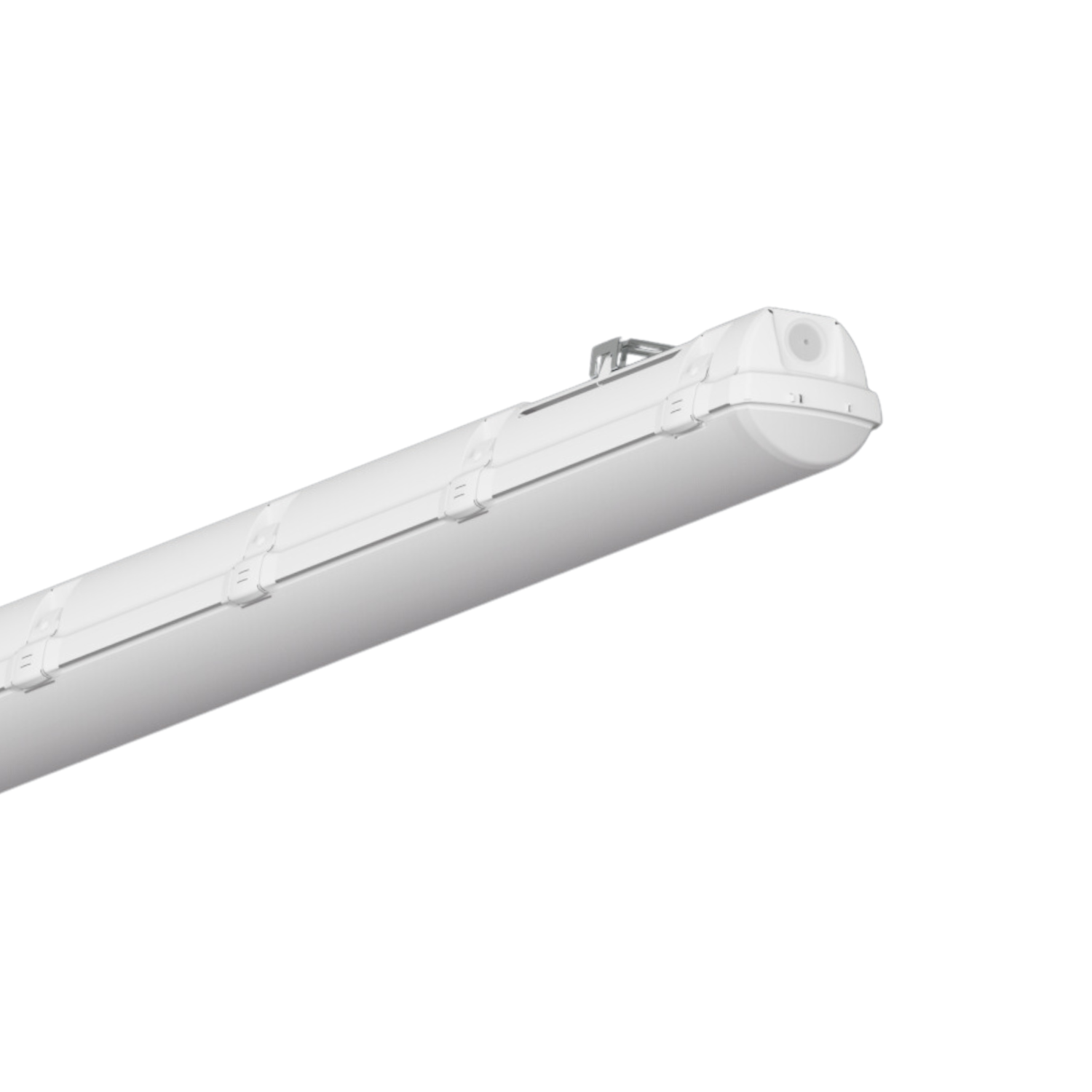

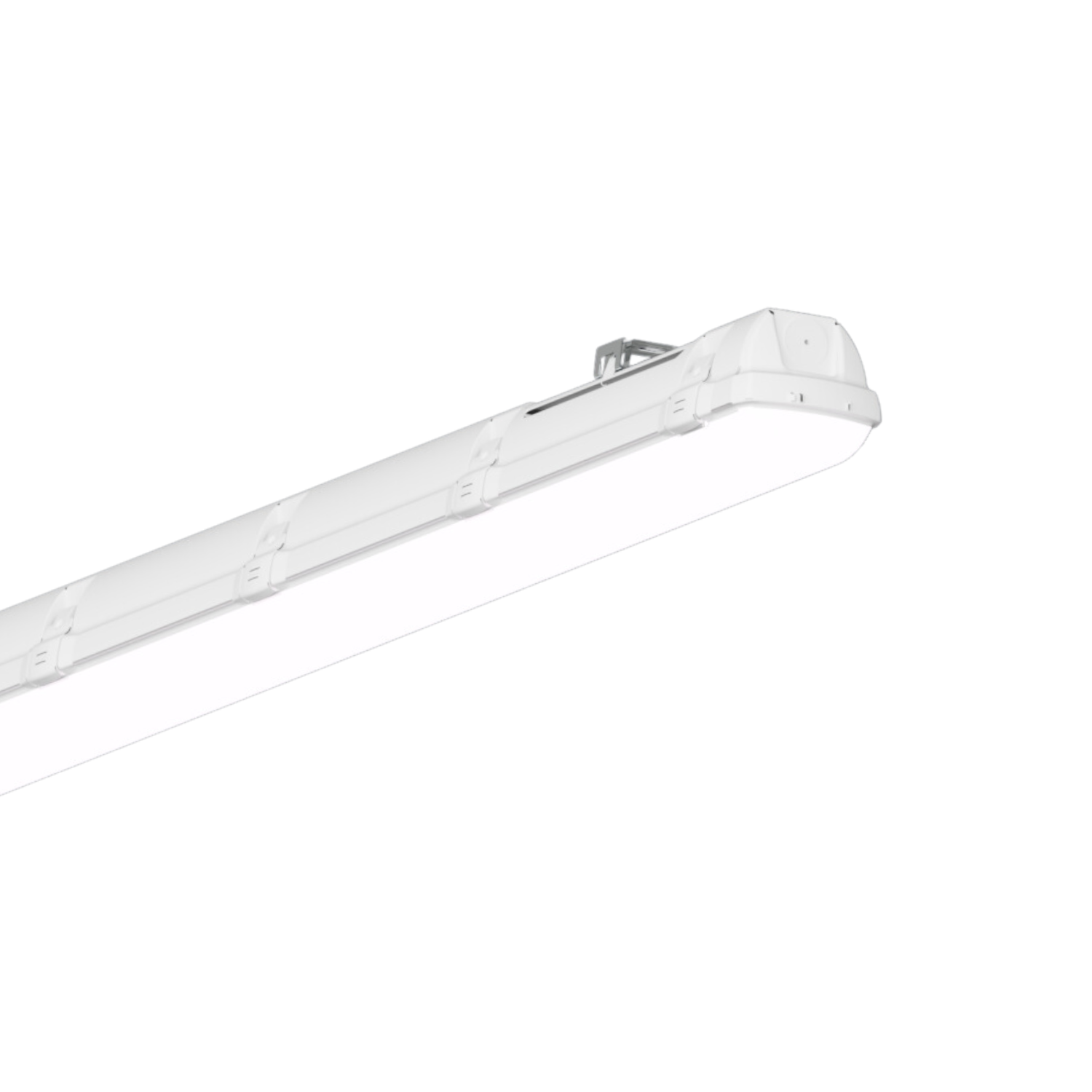

Marea LED Batten V2 Range (2-5ft)

Datasheet Download

IES Files on request

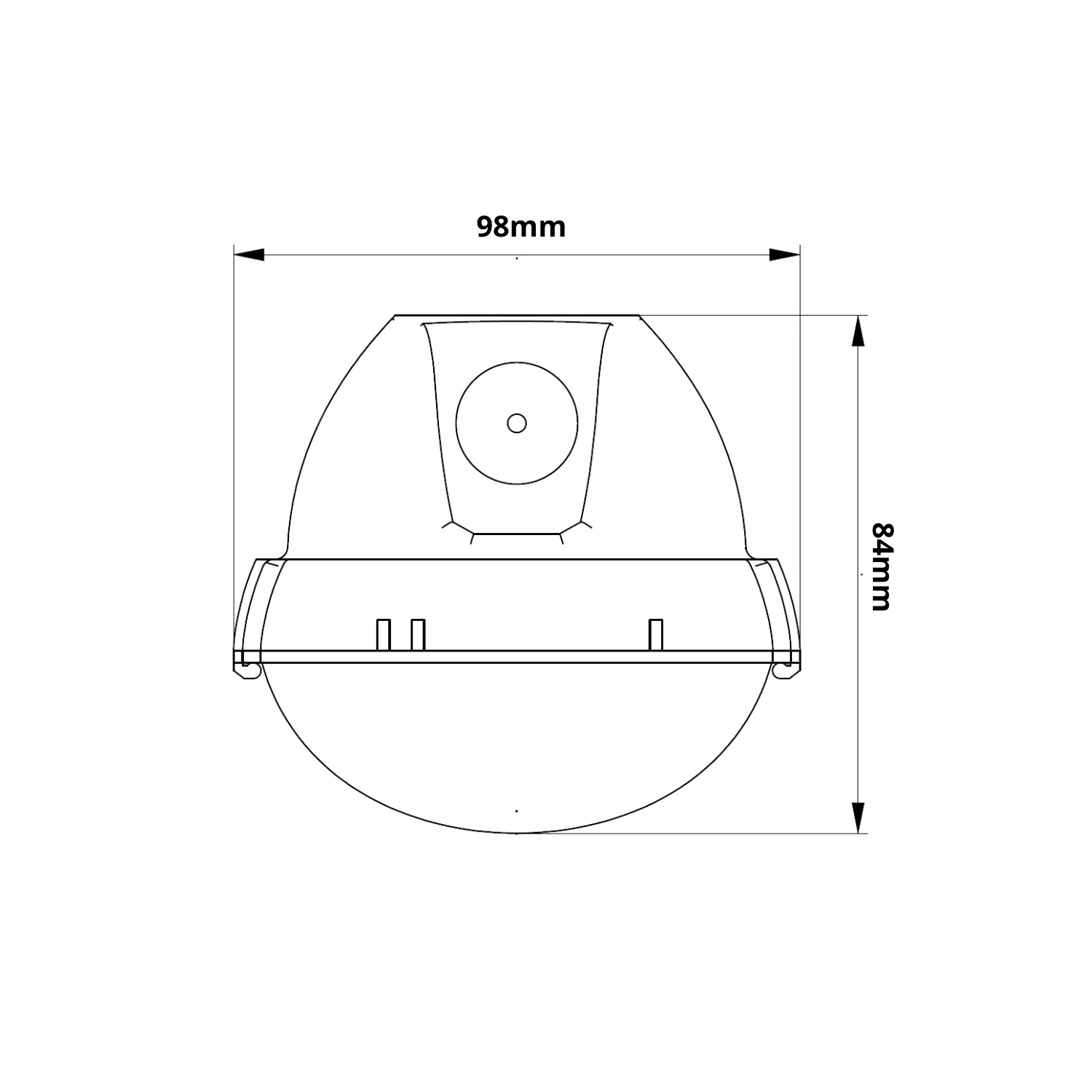

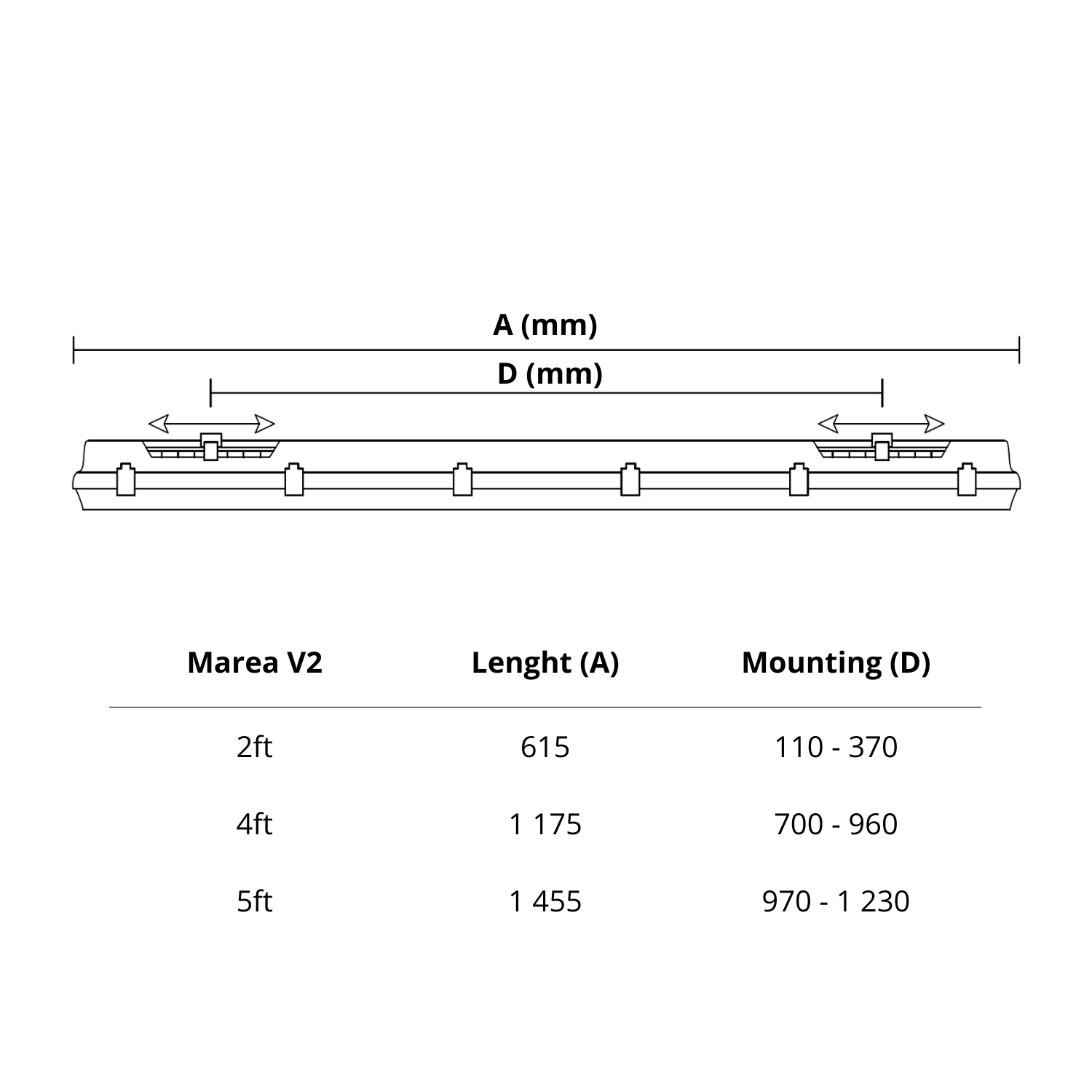

Mounting/Dimensions:

Surface
Suspended

2ft: 615mm
4ft: 1175mm
5ft: 1455mm

Performance/ Specifications:

2ft – Marea V2:
Length: 615mm
Nominal Wattage: 11 - 23W
Nominal Lumens: 2,075 - 3,970lm
System Wattage: 12 - 25W
System Lumens: 1,865 - 3,573lm
Lumen Maintenance: L80/B10 @ 50 000hrs

4ft – Marea V2:
Length: 1,175mm
Nominal Wattage: 22 - 46W
Nominal Lumens: 4,151 - 9,742lm
System Wattage: 24 - 50W
System Lumens: 3,735 - 7,145lm
Lumen Maintenance: L80/B10 @ 50 000hrs

5ft – Marea V2:
Length: 1,455mm
Nominal Wattage: 27 - 57W
Nominal Lumens: 5,185 - 9,927lm
System Wattage: 30 - 62W
System Lumens: 4,670 - 8,930lm
Lumen Maintenance: L80/B10 @ 50 000hrs

Finnish Options:

White

Additional Features:

Emergency: Integrated 3hr EME kit
Control: DALI/Step DIM
Warranty: 5 Year (T’s & C’s apply)
