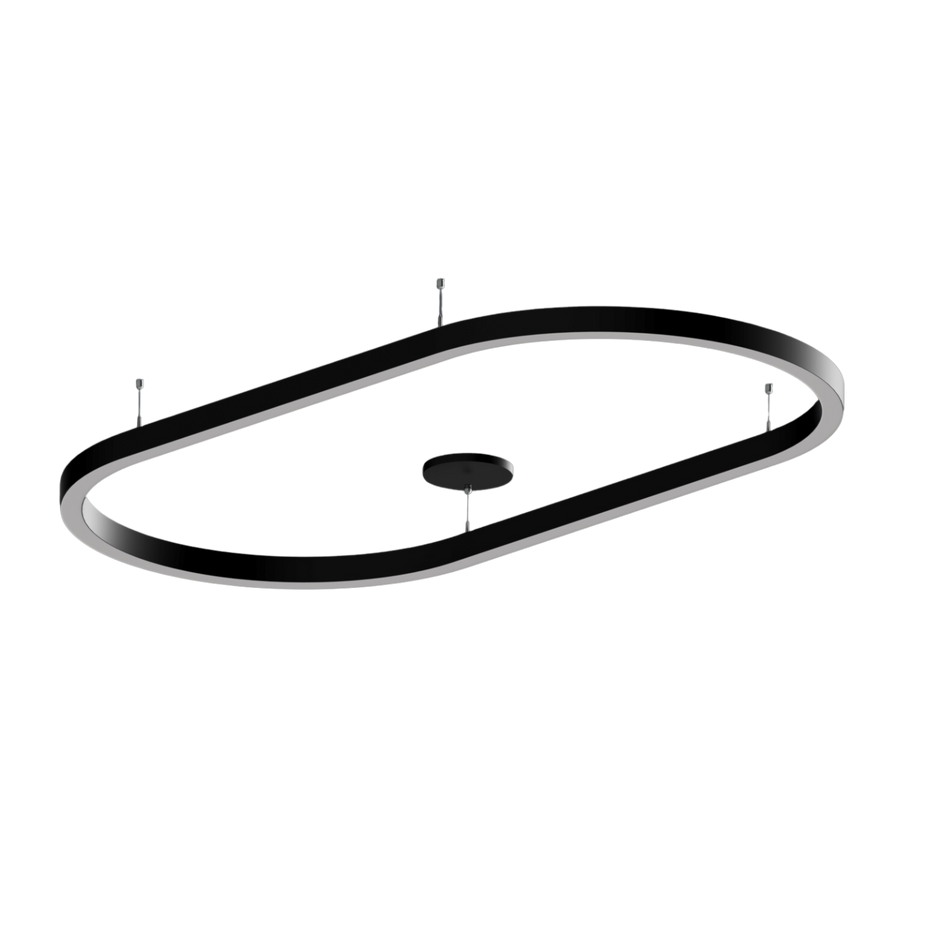

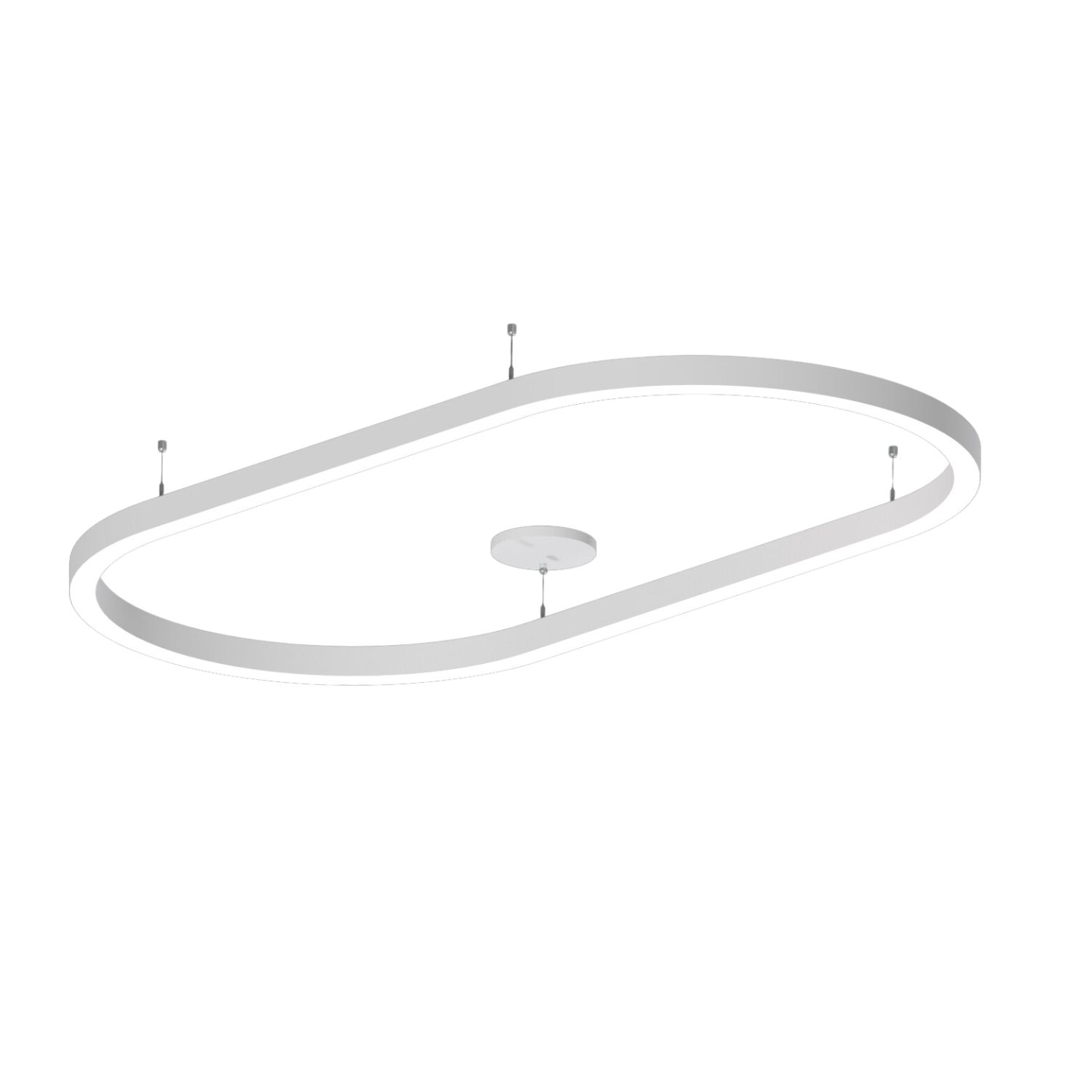

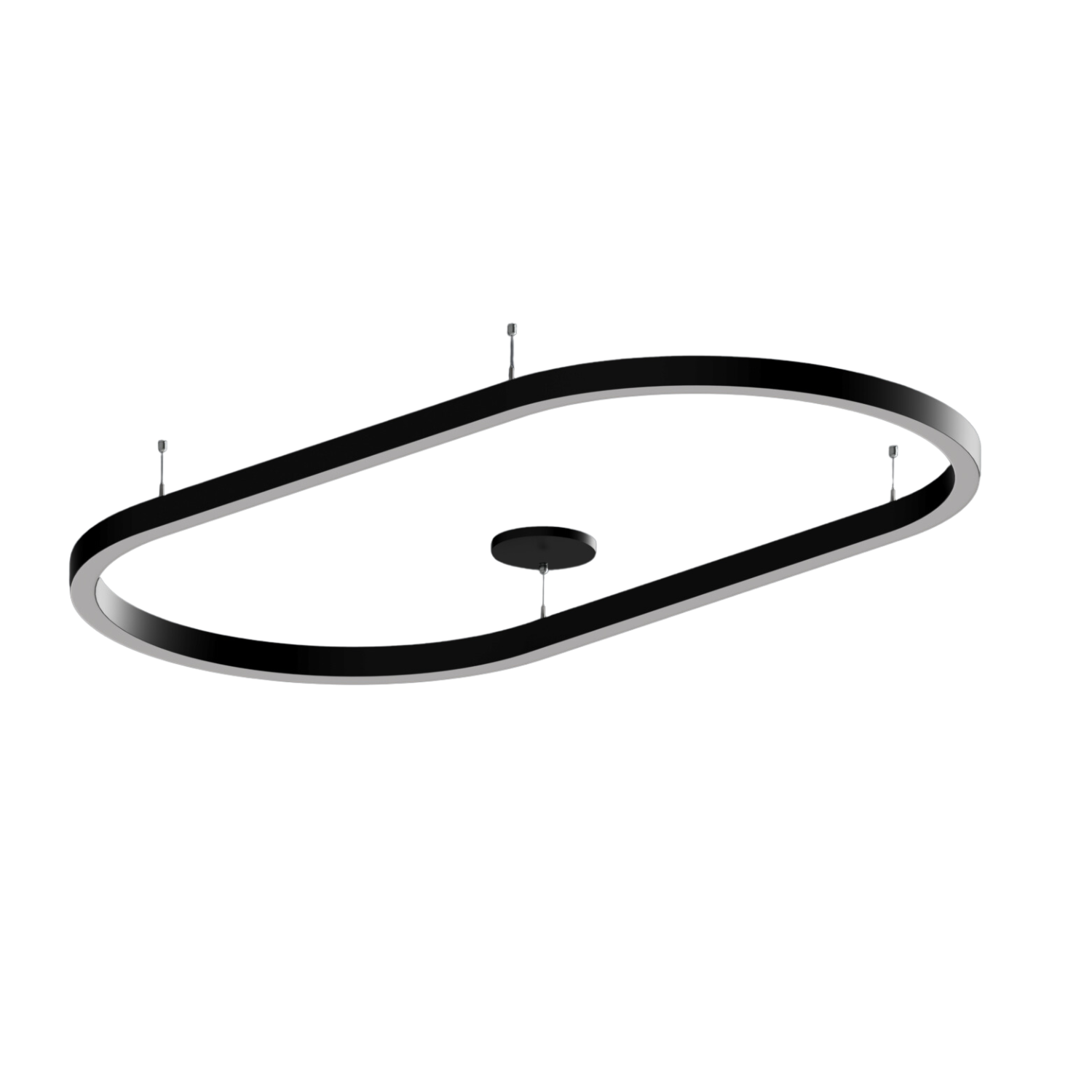

LSC5060 Slot Shape LED Linear Lighting (20W/m)

Datasheet Download

IES Files on request

Mounting/Dimensions:

Surface
Suspended

Curve Diameters:
1m / 1.5m / 3m

Straight Lengths:
0.5m / 1m / 1.5m / 2m / 2.5m / More (increments of 0.5m)

Performance/ Specifications:

3000K: 20W/m - 2,765lm/m
4000K: 20W/m - 2,900lm/m
Profile: Extruded Aluminium
Diffuser: Silicon
CRI: ≥ 80
CCT: 3000K / 4000K
MacAdams: ≤ 3 Step
Distribution: Diffused
IP: 20
Lumen Maintenance: L80/B10 @ 50 000hrs

Finish Options:

White
Black
Other

Additional Features:

Emergency: Integrated 3hr
Control: DALI
Warranty: 5 Year (T’s & C’s apply)
