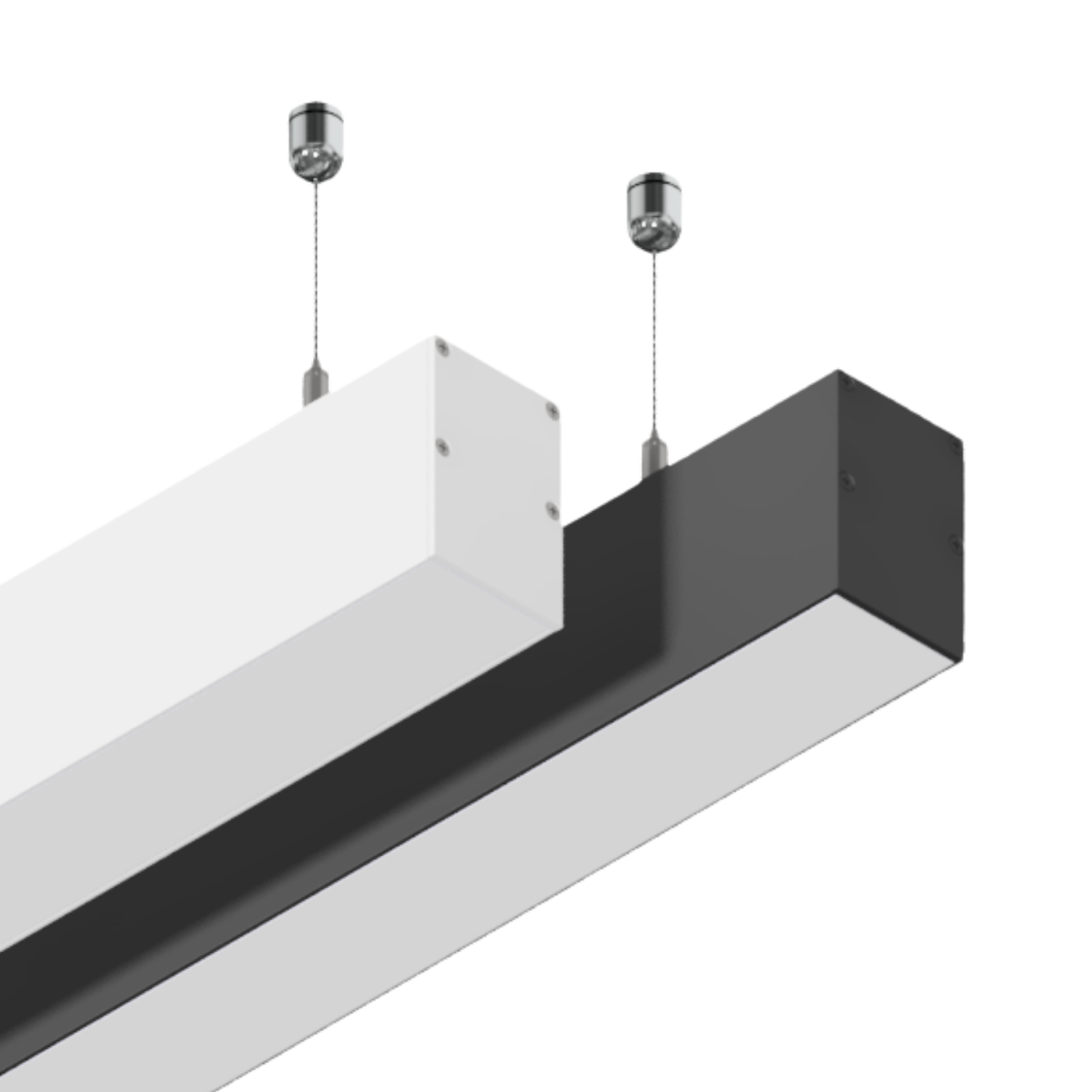

DRK5075 LED Linear Lighting ( UGR19 Dark-Light)

Datasheet Download

IES Files on request

Mounting/Dimensions:

Surface
Suspended

Height: 75mm
Width: 50mm

2Ft: 565mm
4Ft: 1,125mm
Runs: Customizable
Shapes: Customizable

Performance/ Specifications:

2ft:
Nominal Wattage: 9 - 20W
Nominal Lumens: 1,700 - 3,900lm
System Wattage: 10 - 22W
System Lumens: 1,530 - 3,140lm
4ft:
Nominal Wattage: 18 - 39W
Nominal Lumens: 3,400 - 6,980lm
System Wattage: 24 - 50W
System Lumens: 3,060 - 6,285lm
Profile: Extruded Aluminium
Optics: PMMA
Shades: PC
CRI: ≥ 80
CCT: 3000K / 4000K / Other
MacAdams: ≤ 3 Step
Distributions: 65° / 90°
IP: 20
Lumen Maintenance: L80/B10 @ 50 000hrs

Finish Options:

White
Black

Additional Features:

Emergency: Integrated 3hr
Control: DALI
Warranty: 5 Year (T’s & C’s apply)
