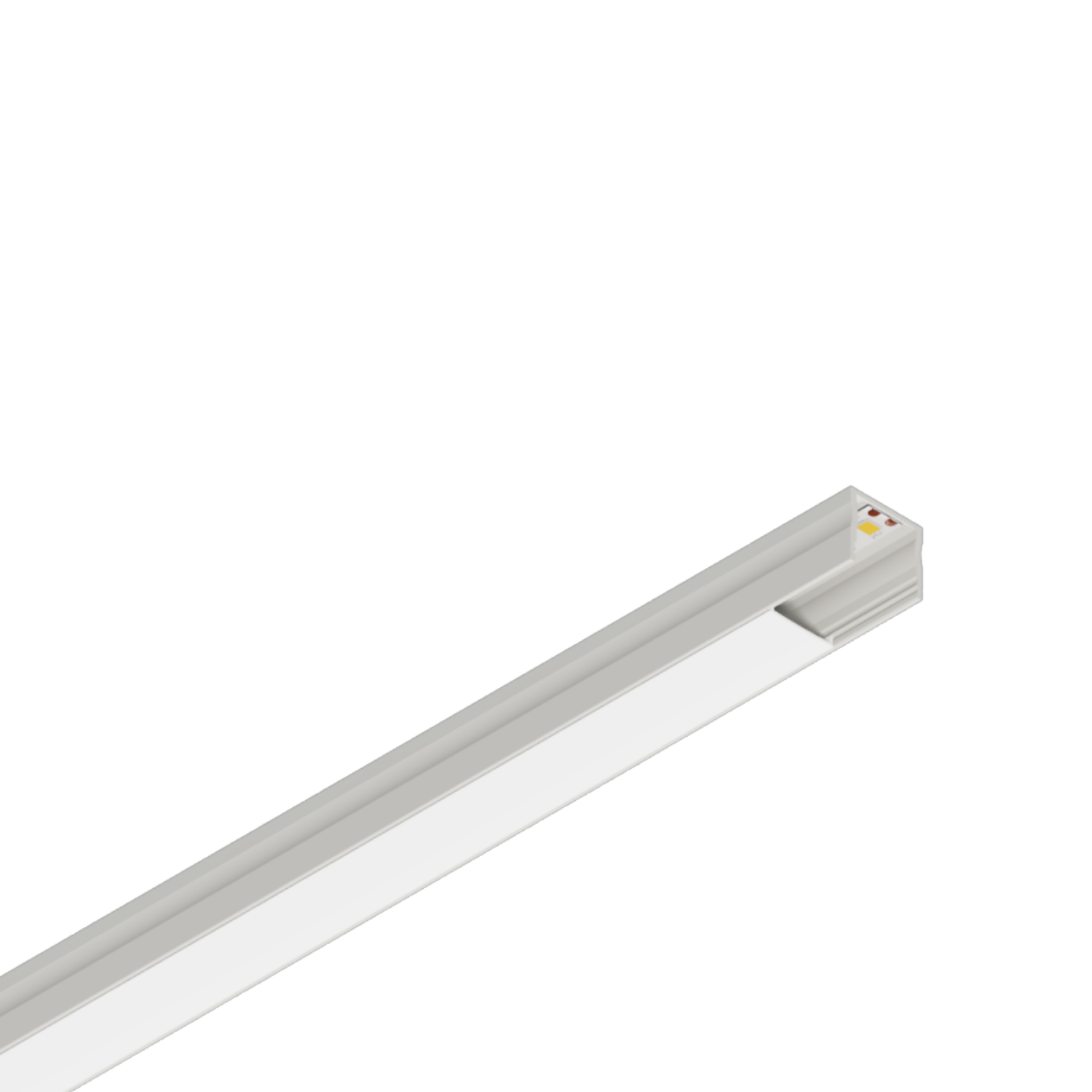

LS1715 Surface Extruded Aluminium Mini Profile (17x15mm)

Datasheet Download

IES Files on request

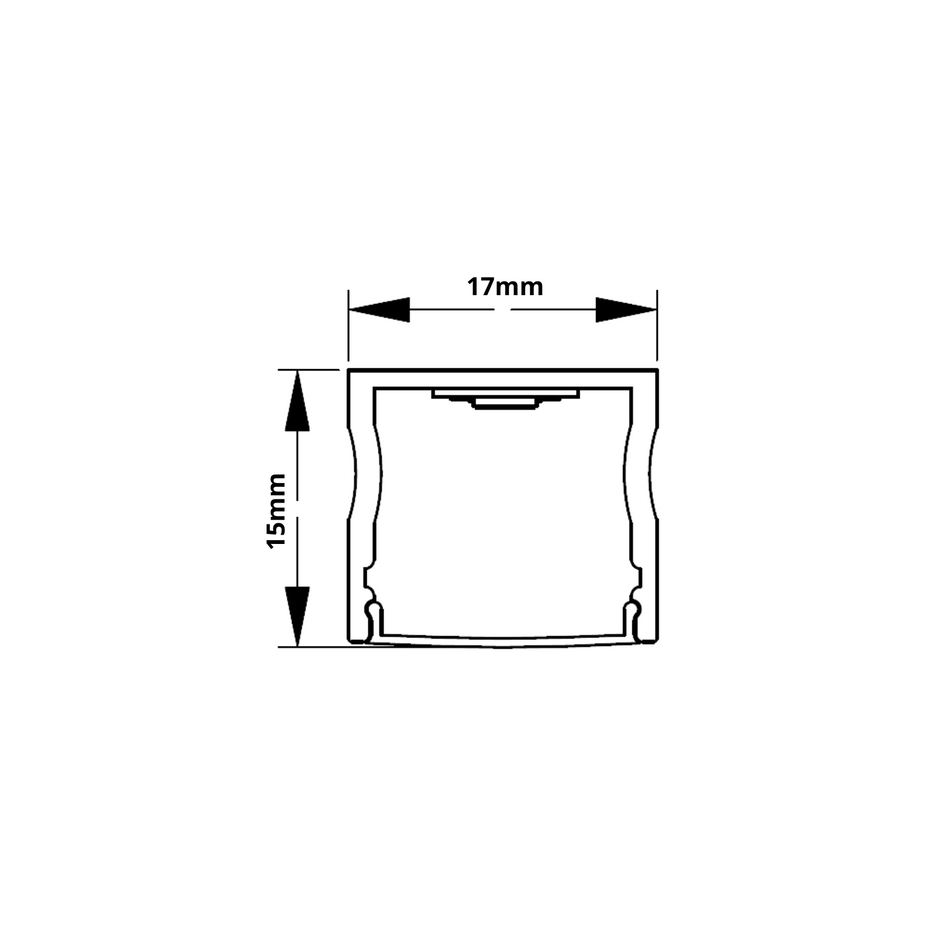

Mounting/Dimensions:

Surface

Length: 2500mm (Alternatively Cut to desired length)
Height: 15mm
Width: 17mm
Cut-out: 18mm

Performance/ Specifications:

Profile: Extruded Aluminium
Diffuser: PMMA/ Opal
Distribution: Diffused
IP: 20

Components: Description – Code:

Profile: Extruded aluminium (2.5m) – L01/Prof/3
Diffuser: PMMA (2.5m) - L01/Diff/opal
End Caps – L01/EC/3
Mounting Clips – L01/MC/0

Finish Options:

Anodized Silver
Other

(T’s & C’s apply)
