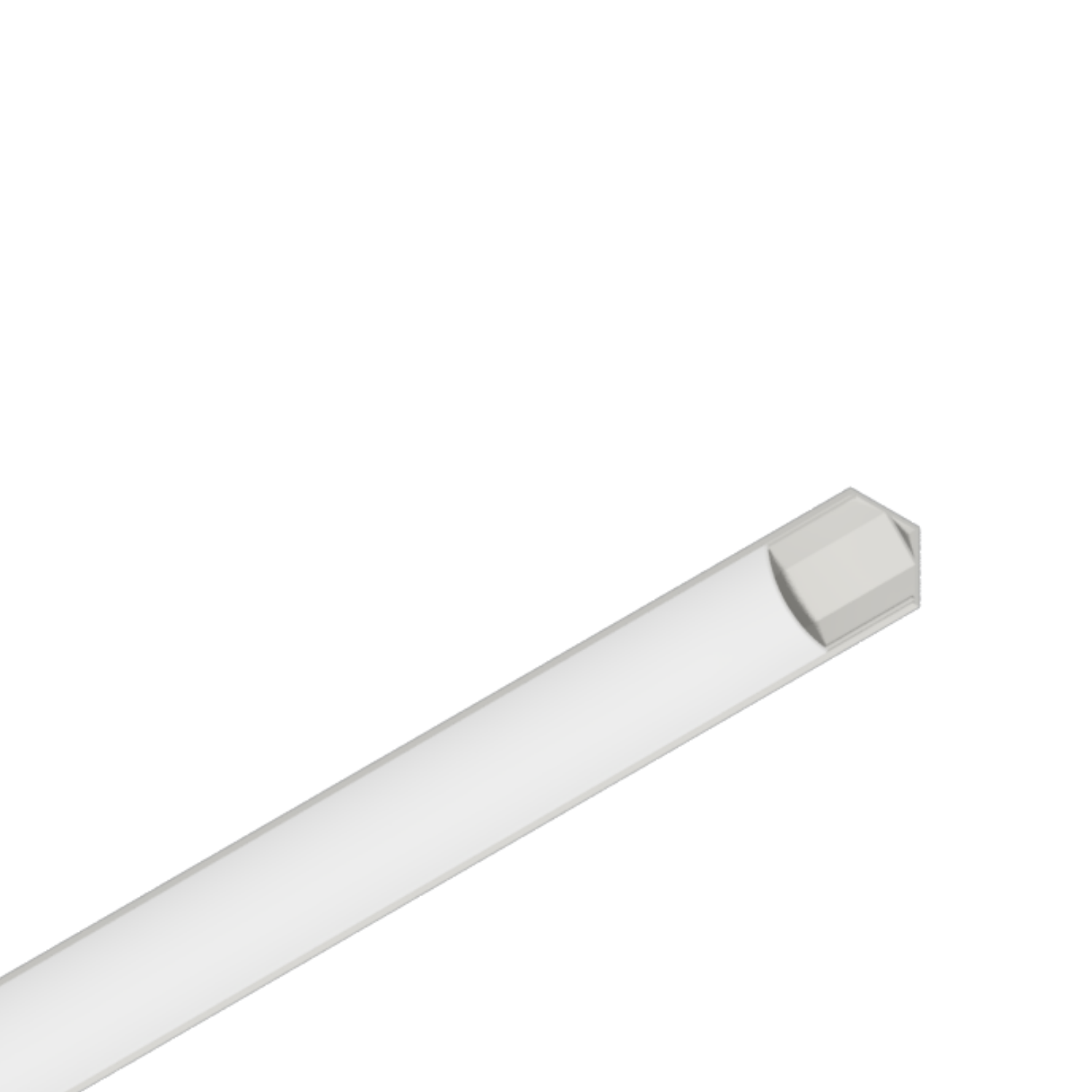

LCR1616 Corner Round Surface Extruded Aluminium Mini Profile (16x16mm)

Datasheet Download

IES Files on request

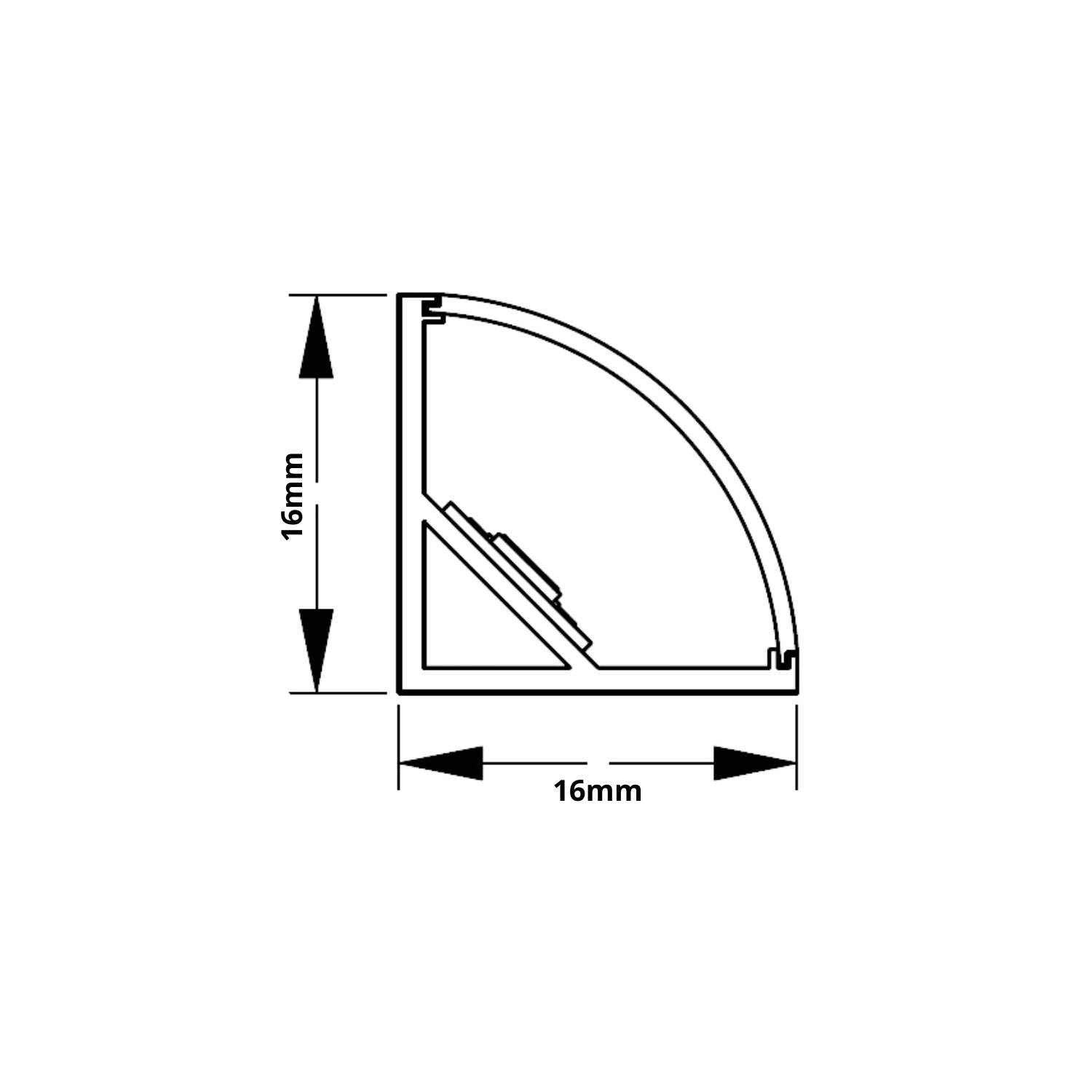

Mounting/Dimensions:

Surface (Corner)

Length: 2500mm (Alternatively Cut to desired length)
Height: 16mm
Width: 16mm

Performance/ Specifications:

Profile: Extruded Aluminium
Diffuser: PMMA/ Opal
Distribution: Diffused
IP: 20

Components: Description - Code:

Profile: Extruded aluminium (2.5m) – L10/Prof/3
Diffuser: PMMA (2.5m) - L10/Diff/opal
End Caps – L10/EC/3
Mounting Clips – L10/MC/0

Finish Options:

Anodized Silver
Other

(T’s & C’s apply)
