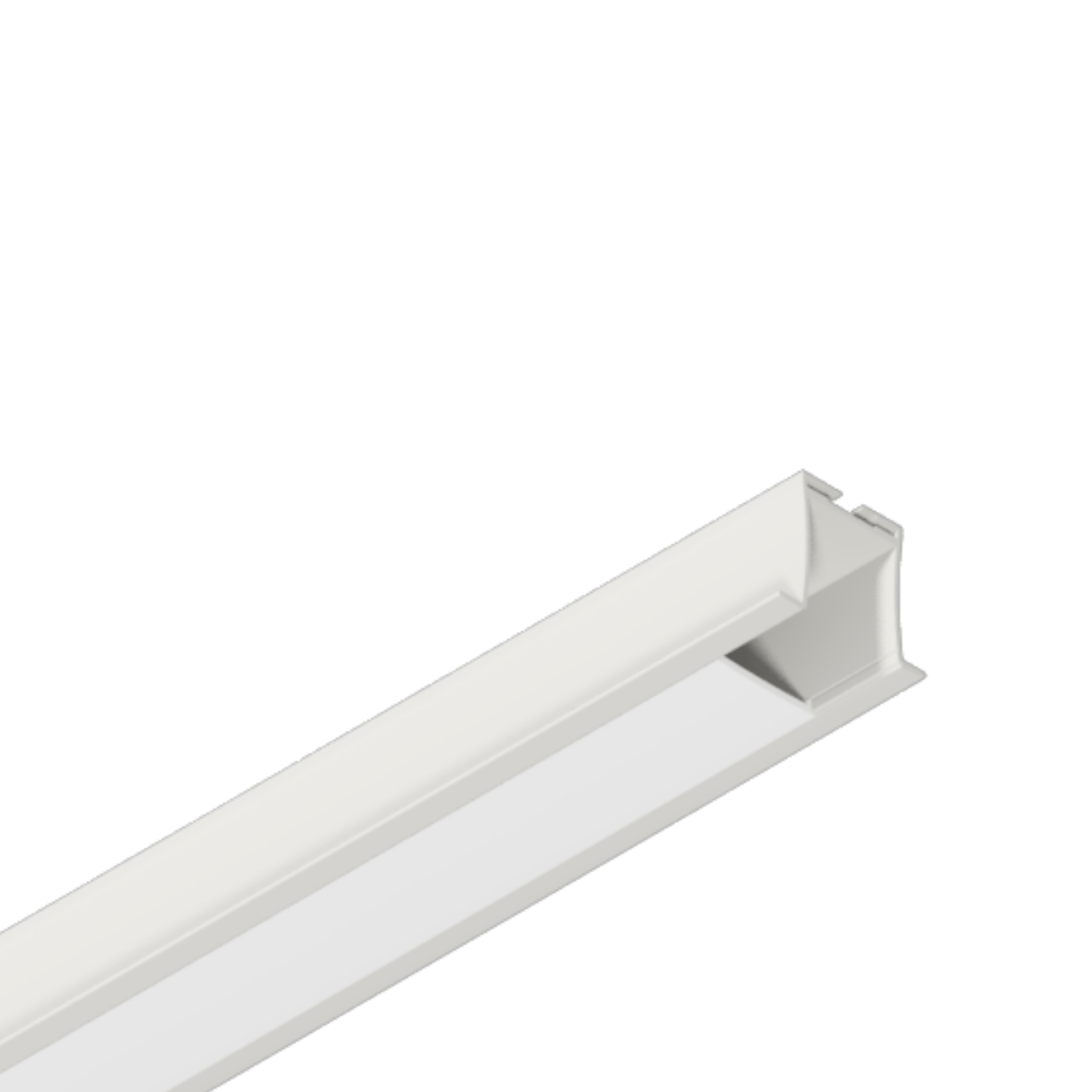

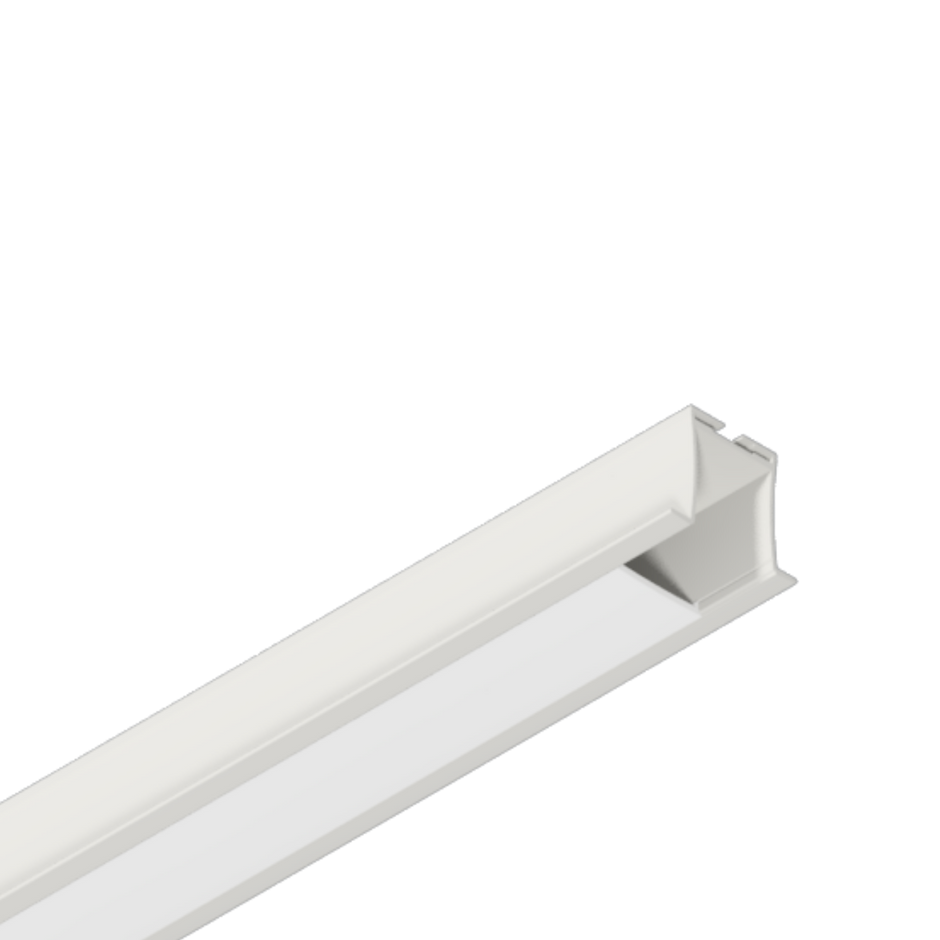

LR3628 Recessed Extruded Aluminium Mini Profile (W:23xH28xF:36mm)

Datasheet Download

IES Files on request

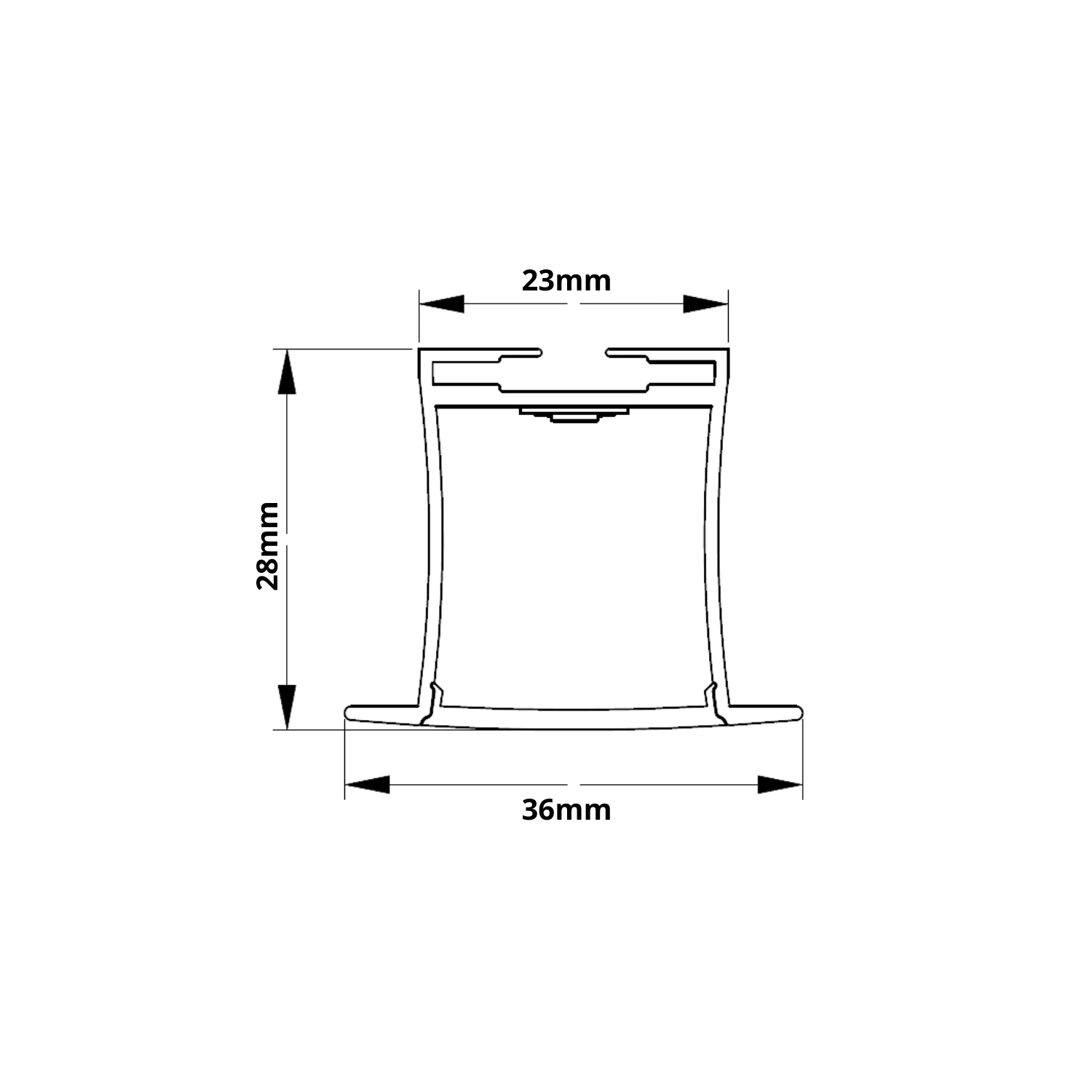

Mounting/Dimensions:

Recessed

Length: 2500mm (Alternatively Cut to desired length)
Height: 28mm
Width: 23mm
Flange/ Lip length: 36mm
Cut-out: 24mm

Performance/ Specifications:

Profile & Gear Tray: Extruded Aluminium
Diffuser: PMMA/ Opal
Distribution: Diffused
IP: 20

Components: Description - Code

Profile: Extruded aluminium (2.5m) - L31/Prof/3
Diffuser: PMMA (2.5m) - L31/Diff/opal
End Caps - L31/EC/3
Mounting Clips - L31/MC/0

Finish Options:

Anodized Silver
Other

(T’s & C’s apply)
