LCF1818 Corner Surface Extruded Aluminium Mini Profile (18x18mm)

Datasheet Download

IES Files on request

Mounting/Dimensions:

Surface (Corner)

Length: 2500mm (Alternatively Cut to desired length)

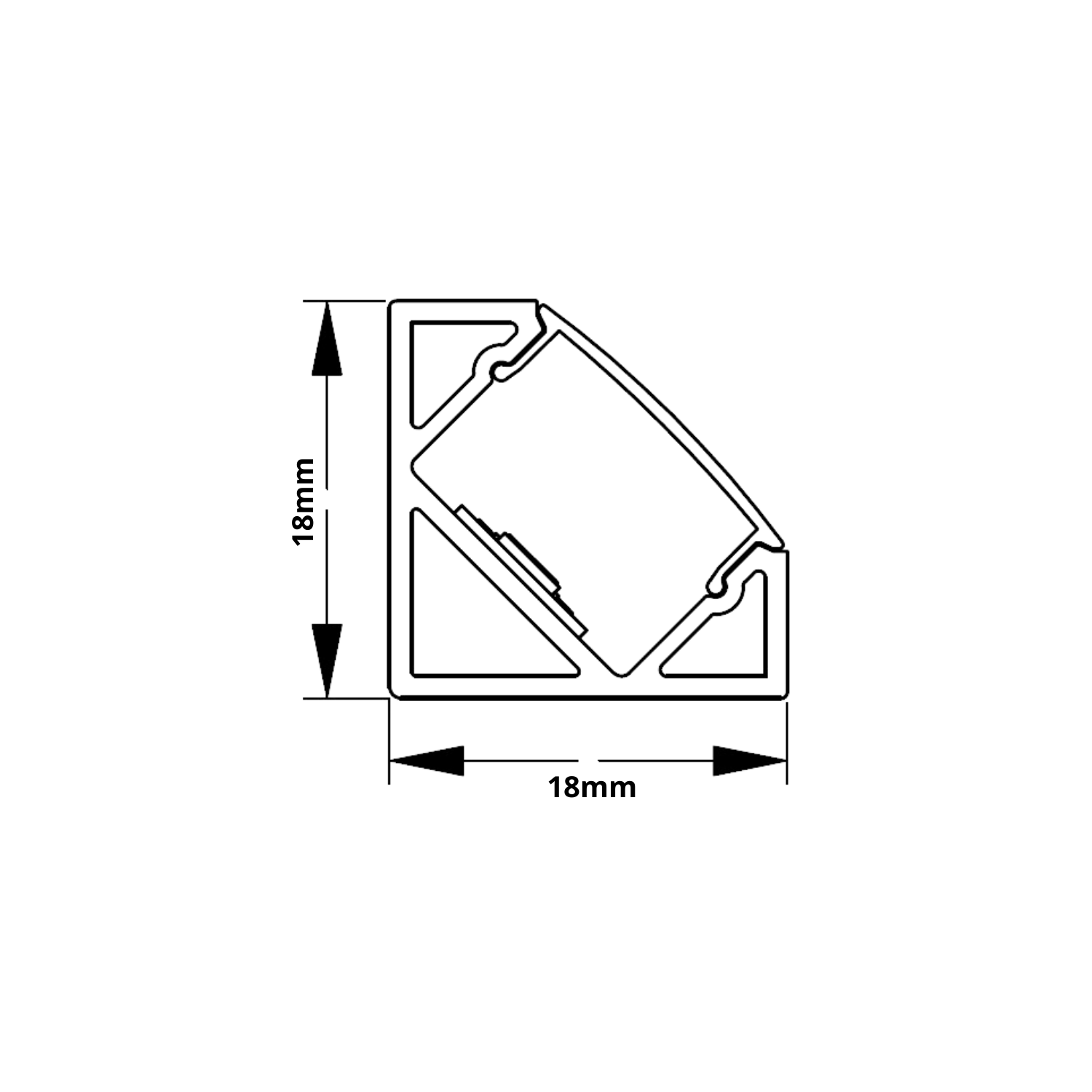

Note: Refer to line drawing & Datasheet for Dimensions

Performance/ Specifications:

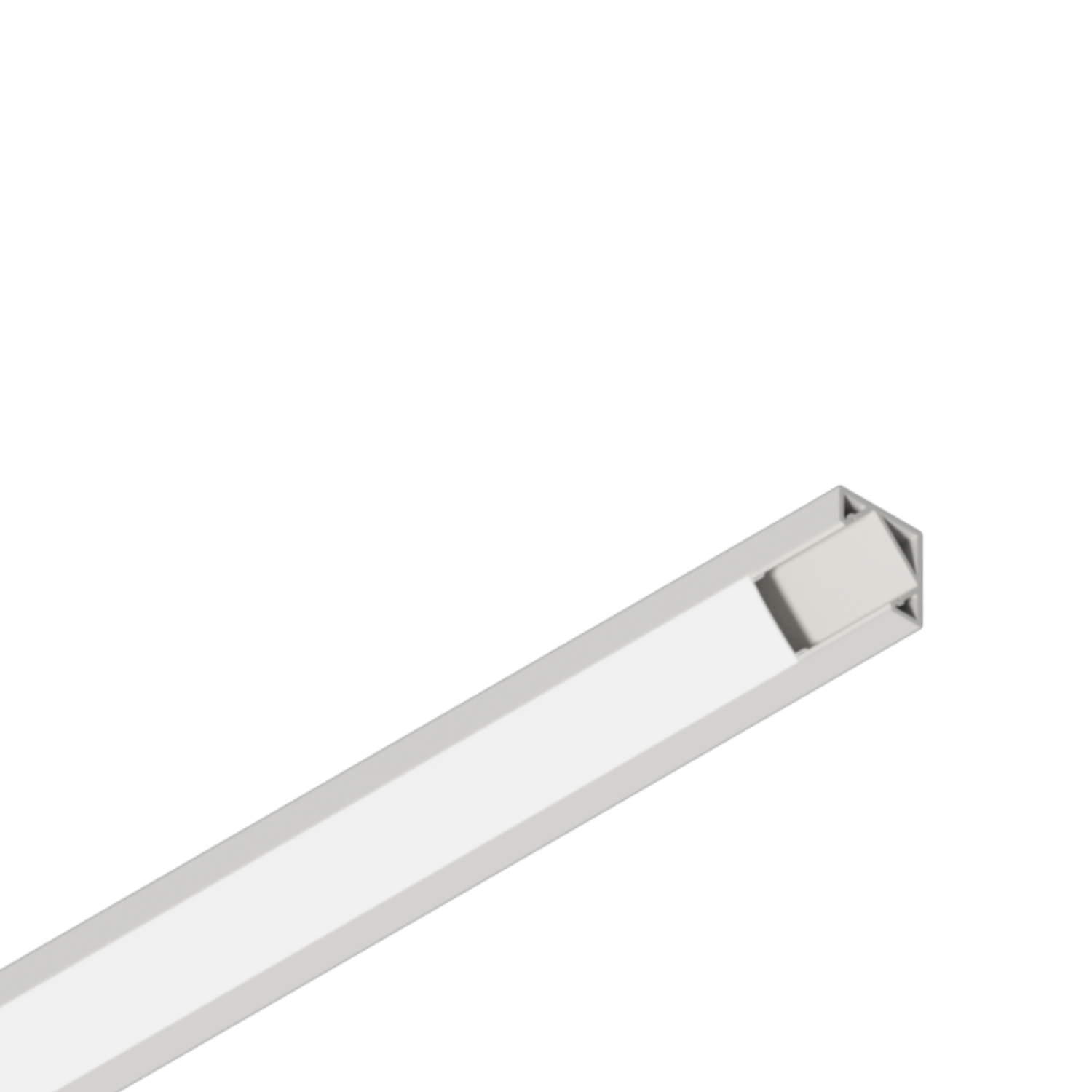

Profile: Extruded Aluminium
Diffuser: PMMA/ Opal
Distribution: Diffused
IP: 20

Components: Description - Code:

Profile: Extruded aluminium (2.5m) – L13/Prof/3
Diffuser: PMMA (2.5m) - L13/Diff/opal
End Caps - L31/EC/3
Mounting Clips – L13/MC/0

Finish Options:

Anodized Silver
Other

(T’s & C’s apply)
