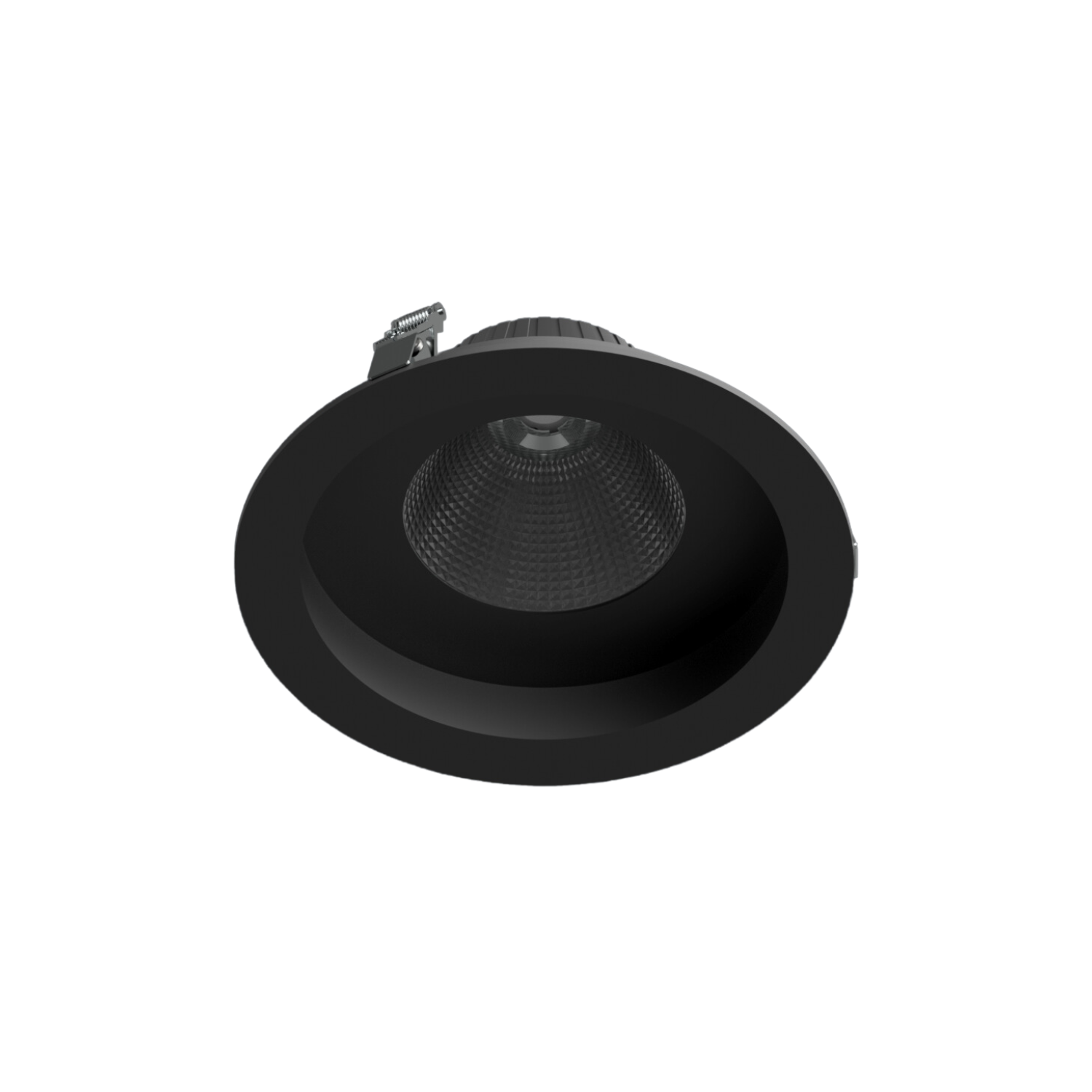

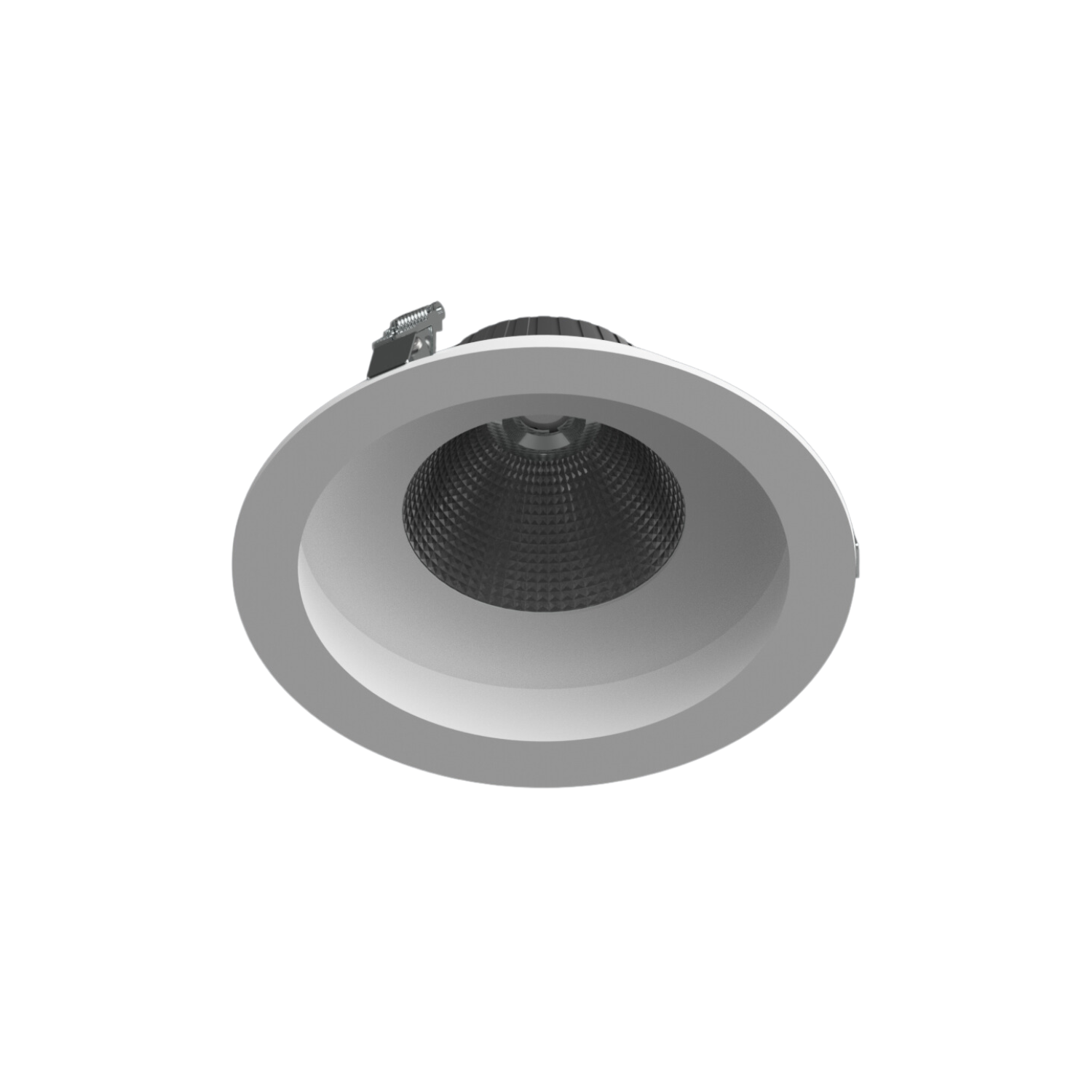

EDL 8 Inch LED Downlight (12-24W)

Datasheet Download

Installation Manual Download

IES Files on request

Mounting/Dimensions:

Recessed
Height: 110mm
Diameter: 260mm
Cut-out: 215mm - 250mm

Performance/ specifications:

Nominal Wattage: 12W - 24W
System Wattage: 13W - 26W
Nominal Lumens: 1,940 - 3,855lm
System Lumens: 1,550 - 3,085lm
CRI: ≥ 80 / Other
CCT (Correlated Colour Temperature): 3000K / 4000K / Other
MacAdam Steps: ≤ 3 Step
Distributions: 45° / 60°
IP Rating: IP20
Lumen Maintenance: L80/B10 @ 50 000hrs

Finish Options:

White
Black
Other

Additional Features:

Emergency Kit: 3hr
Control Options: DALI / Trailing Edge Dim
Warranty: 5 Years (T’s & C’s apply)
