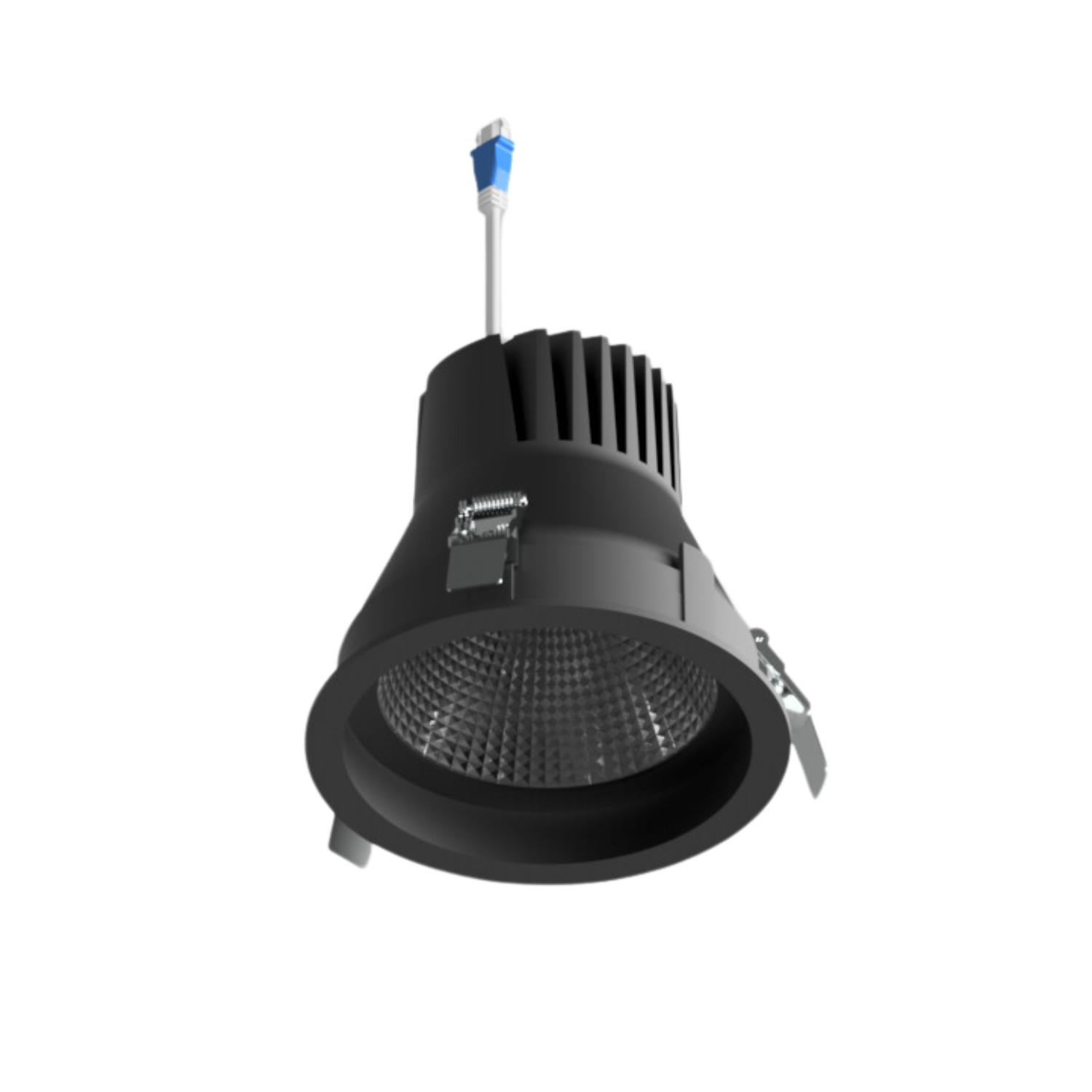

DLV-R 6 Inch Downlight Cutout 155mm 28W – 48W

Data Sheet Download

Installation Manual Download

IES Files on request

Mounting:

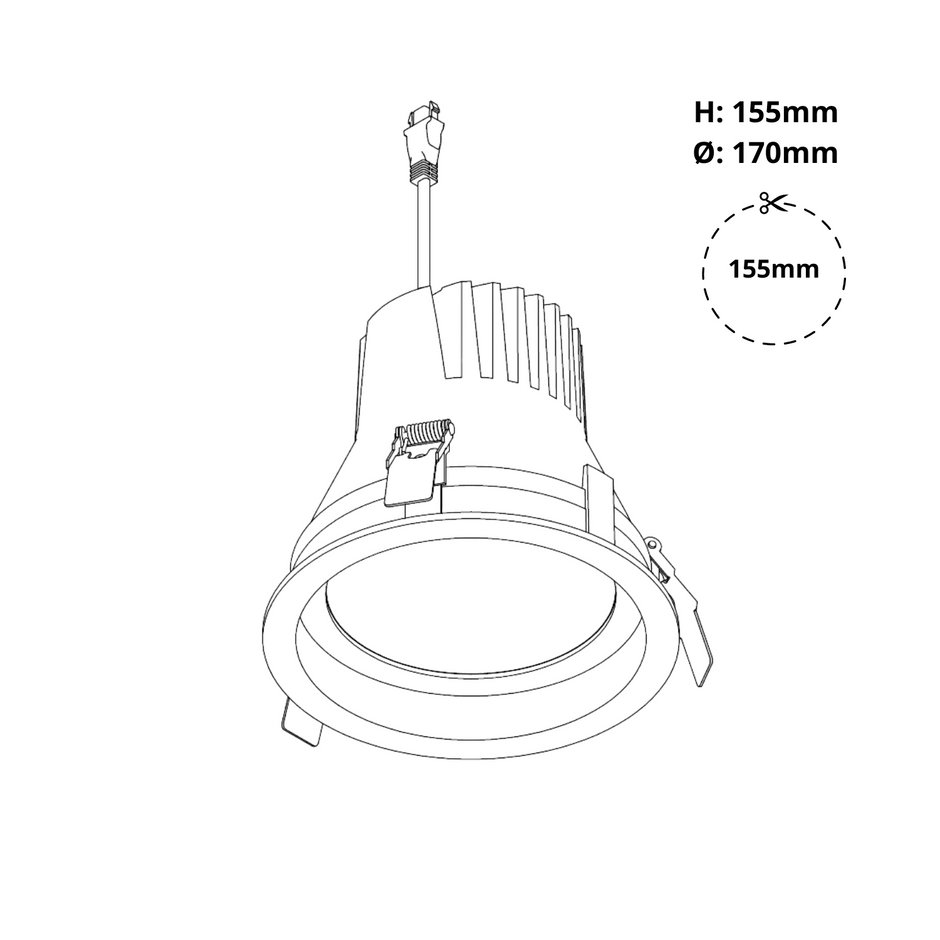

Recessed (Cutout: 155mm)

Performance:

Nominal Wattage: 28W – 48W
System Wattage: 30W – 52W
Nominal Lumens: 4,810 – 7,875 lm
System Lumens: 3,850 – 6,300 lm
CRI: ≥ 80 / Other
CCT (Correlated Color Temperature): 3000K / 4000K / Other
MacAdam Steps: ≤ 3 Step
Beam Angles: 45° / 60°
IP Rating: IP20

Finish Options:

White
Black
Other

Additional Features:

Emergency Kit: 3hr
Control Options: DALI / Trailing Edge Dim
Warranty: 5 years
