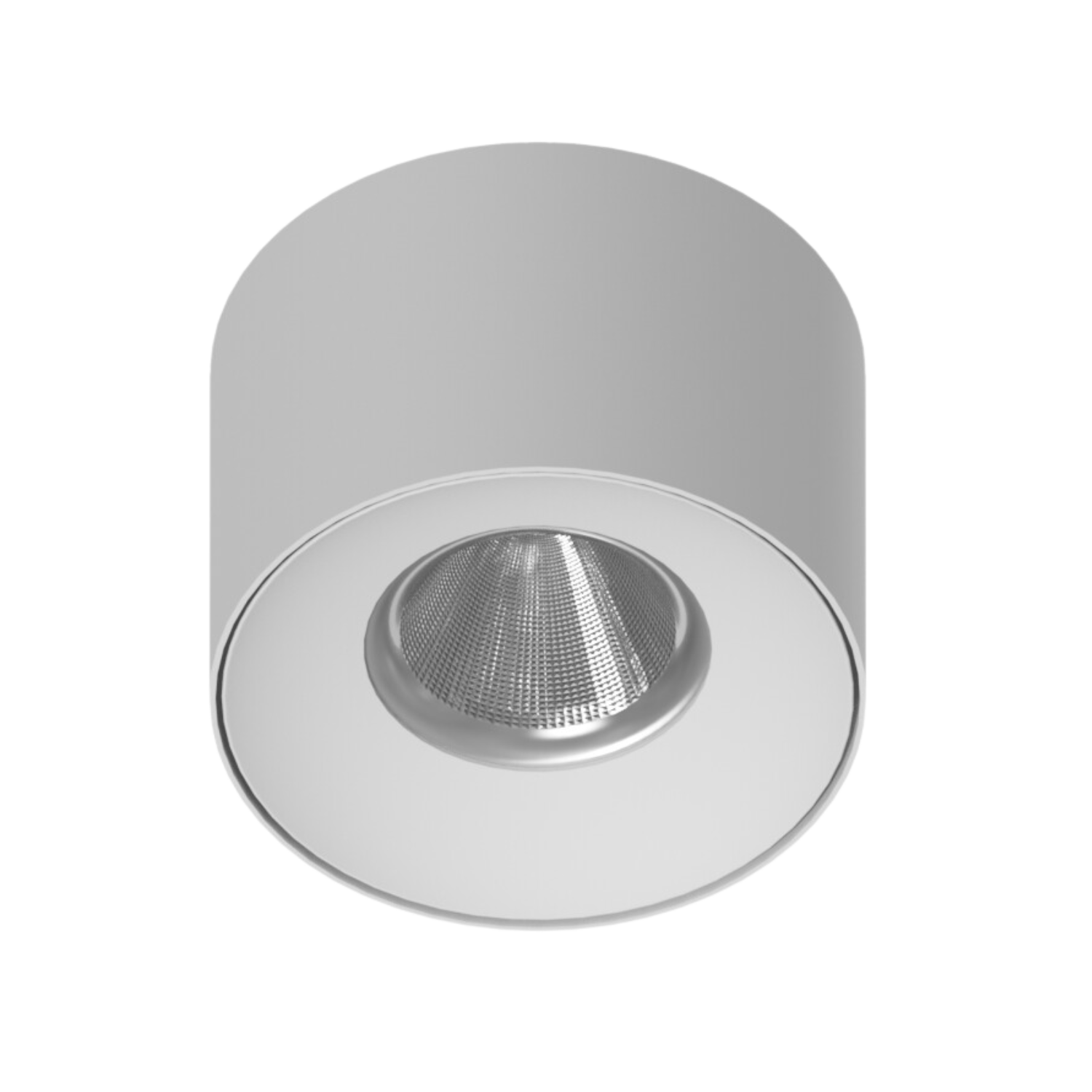

DLH7 (8 Inch) Surface Mount LED Downlight (12-29W)

Datasheet Download

IES Files on request

Mounting/Dimensions:

Surface Mounted
Height: 140mm
Diameter: 200mm

Performance/ Specifications:

Nominal Wattage: 12W - 29W
System Wattage: 13W - 32W
Nominal Lumens: 1,940 - 4,615lm
System Lumens: 1,550 - 3,690lm
CRI: ≥ 80 / Other
CCT (Correlated Colour Temperature): 3000K / 3500K / 4000K / Other
MacAdam Steps: ≤ 3 Step
Distributions: 55°
IP Rating: IP20
Lumen Maintenance: L80/B10 @ 50 000hrs

Finish Options:

White
Black

Additional Features:

Emergency Kit: 3hr (remote)
Control Options: N/A
Warranty: 5 Years (T’s & C’s apply)
