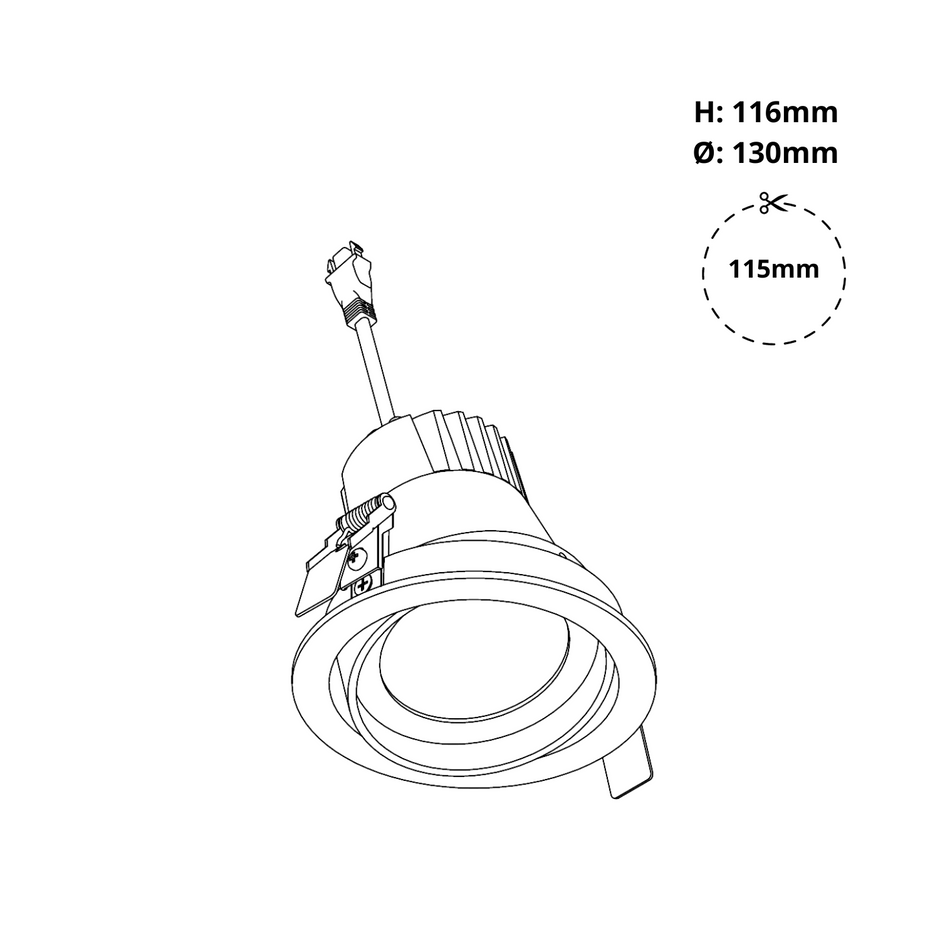

DLV-R 4.5 Inch Tilt Downlight Cutout 115mm 12W – 29W

Data Sheet Download

Installation Manual Download

IES Files on request

Mounting:

Recessed (Cutout: 115mm)

Performance:

Nominal Wattage: 12W – 29W
System Wattage: 13W – 32W
Nominal Lumens: 1,942 – 4,617 lm
System Lumens: 1,553 – 3,693 lm
CRI: ≥ 80 / Other
CCT (Correlated Color Temperature): 3000K / 3500K / 4000K / Other
MacAdam Steps: ≤ 3 Step
Beam Angles: 24° / 36° / 45° / 60°
IP Rating: IP20

Finish Options:

White
Black
Other

Additional Features:

Emergency Kit: 3hr
Control Options: DALI / Trailing Edge Dim
Warranty: 5 years
