DLV-R 3.5 Inch Tilt LED Downlight (9-13W)

Datasheet Download

Installation Manual Download

IES Files on request

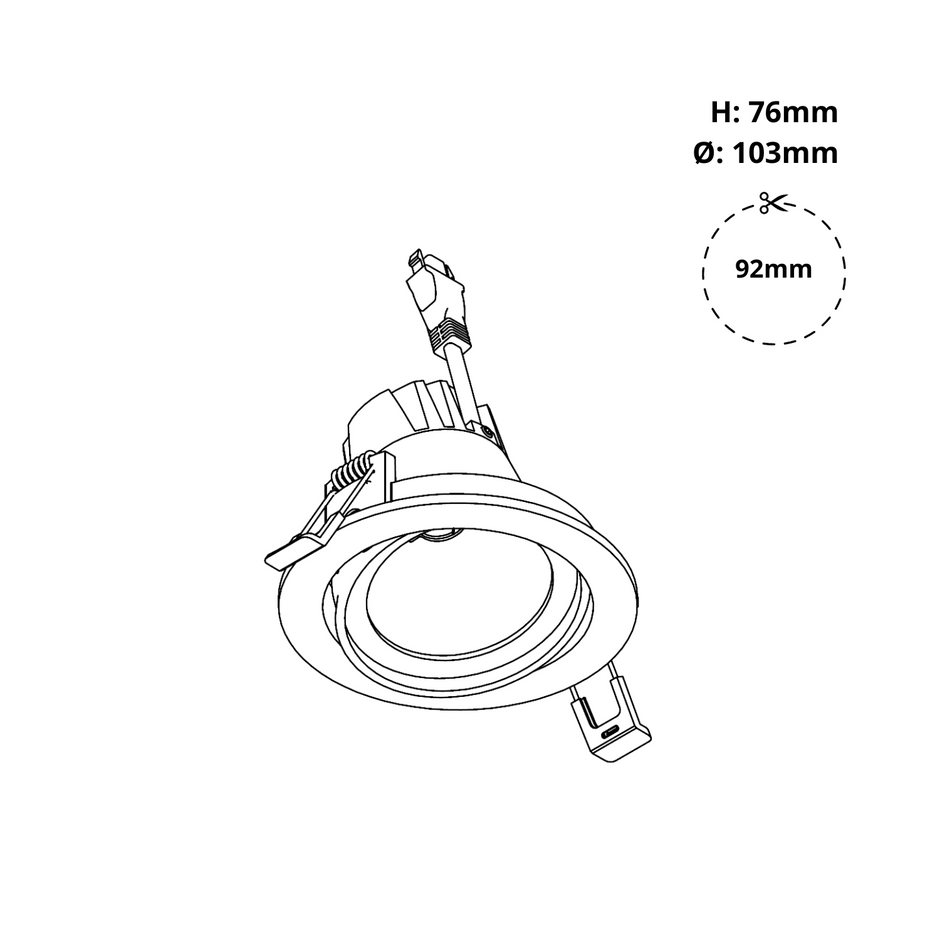

Mounting/Dimensions:

Recessed
Height: 76mm
Diameter: 103mm
Cut-out: 92mm

Performance/Specifications:

Nominal Wattage: 9W - 13W
System Wattage: 10W - 15W
Nominal Lumens: 1,370 - 1,927lm
System Lumens: 1,094 - 1,542lm
CRI: ≥ 80 / Other
CCT (Correlated Colour Temperature): 3000K / 4000K / Other
MacAdam Steps: ≤ 3 Step
Beam Angles: 36° / 45° / 60°
IP Rating: IP20
Lumen Maintenance: L80/B10 @ 50 000hrs

Finish Options:

White
Black
Other

Additional Features:

Emergency Kit: 3hr
Control Options: DALI / Trailing Edge Dim / Other
Warranty: 5 years (T’s & C’s apply)
