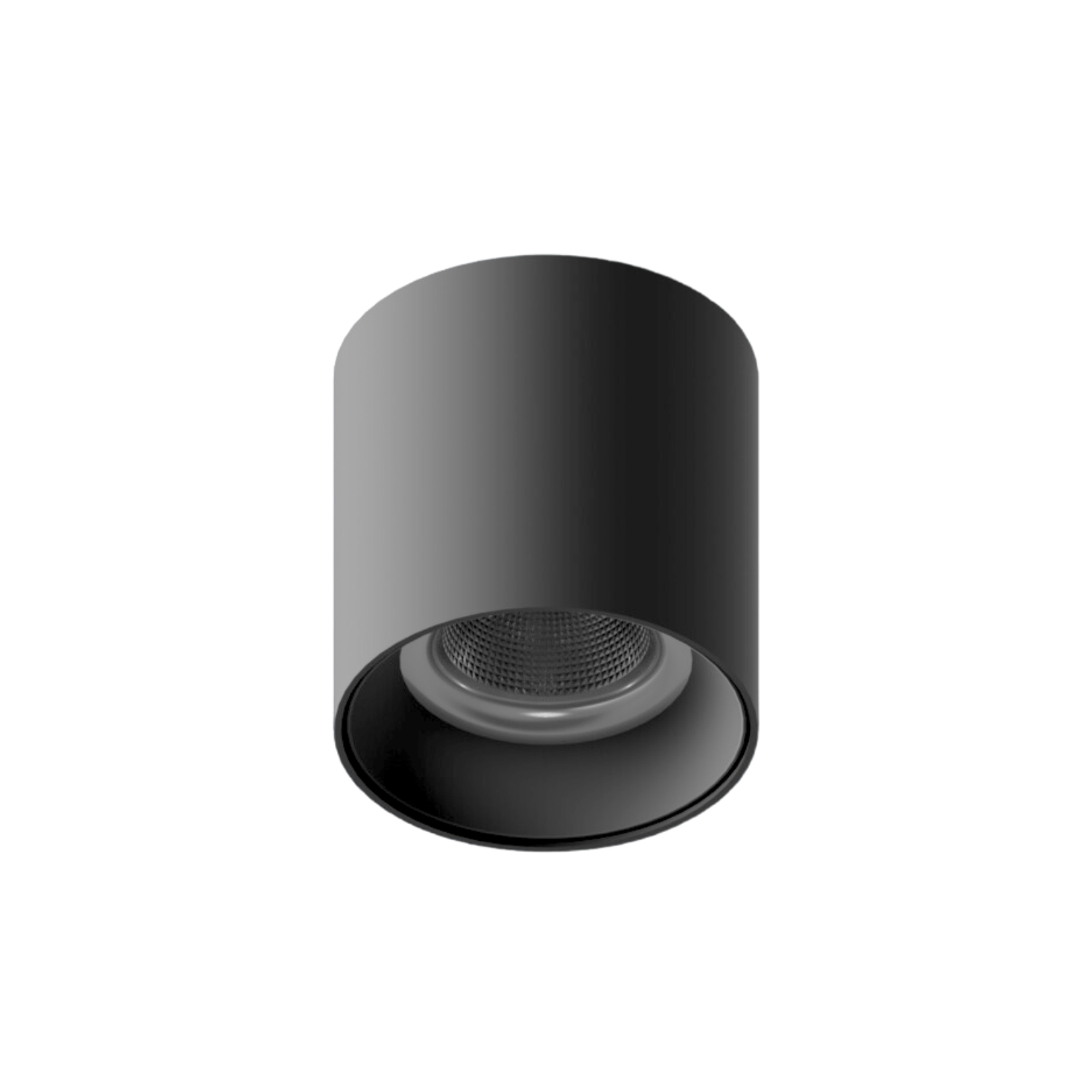

DLH7 (4 Inch) Surface Mount LED Downlight (8-11W)

Datasheet Download

IES Files on request

Mounting/Dimensions:

Recessed
Height: 120mm
Diameter: 118mm

Performance/Specifications:

Nominal Wattage: 8W - 11W
System Wattage: 9W - 12W
Nominal Lumens: 1,270 - 1,725lm
System Lumens: 1,055 - 1,430lm
CRI: ≥ 80 / Other
CCT (Correlated Colour Temperature): 3000K / 4000K / Other
MacAdam Steps: ≤ 3 Step
Distributions: 45°
IP Rating: IP20
Lumen Maintenance: L80/B10 @ 50 000hrs

Finish Options:

White
Black

Additional Features:

Emergency Kit: 3hr (remote)
Control Options: N/A
Warranty: 5 Years (T’s & C’s apply)
