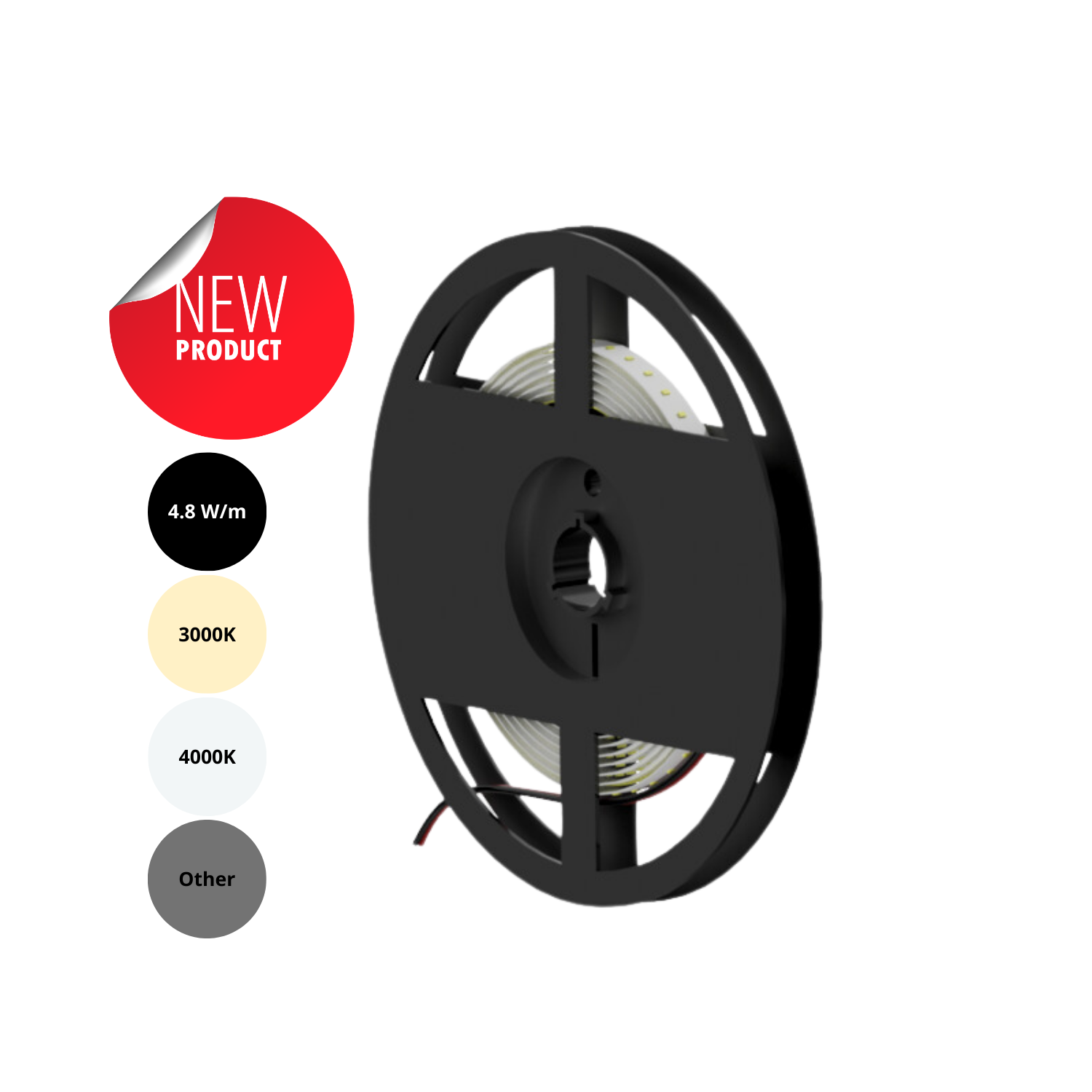

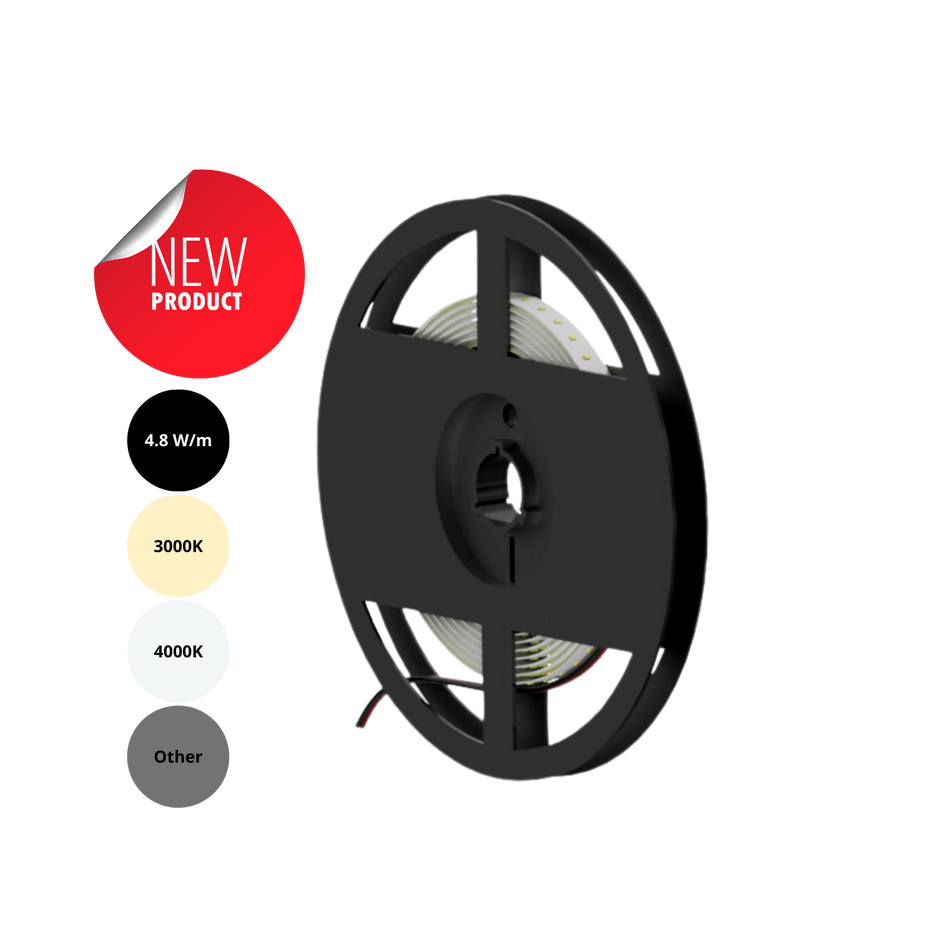

24V LED Strip Light 4.8W/m (IP20)

Datasheet Download

IES Files on request

Mounting/Dimensions:

Length: 5000mm (alternatively made to size on request)
Width: 8mm
Cutting increments: 100mm
- 60 diodes/m

Mounting: Supplied with pre-applied 3M adhesive backing for quick and secure surface mounting. For optimal performance, install into an aluminium profile to enhance heat dissipation, extend LED lifespan, and ensure uniform light distribution.

Performance/ Specifications:

Wattage: 4.8W/m
Voltage: DC24V
CRI: ≥ 80
CCT: 3000K / 4000K / Other
MacAdams: ≤ 3 Step
IP Rating: 20
3000K: 580lm/m - 4CO/LDC/4.8/3K
4000K: 520lm/m - 4CO/LDC/4.8/4K
Note: Unit requires a 24V LED driver for operation

Warranty:

3 Year (Strip) / 5 Year (Control Gear)
(T’s and C’s apply)
