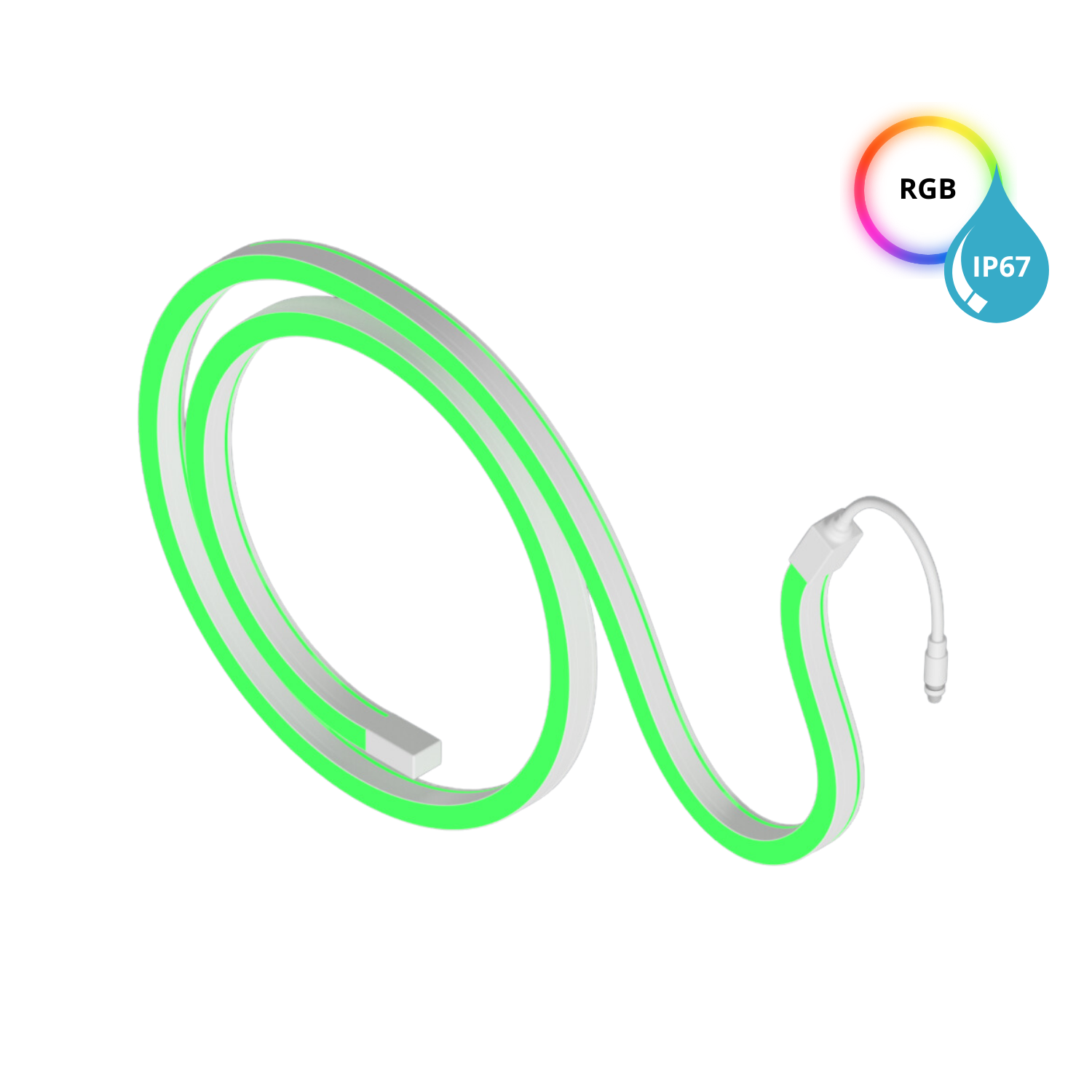

24V RGBW LED Astroflex 9.6W/m (IP67)

Datasheet Download

IES Files on request

Mounting/Dimensions:

Length: 5000mm (alternatively made to size on request)
Width: 12mm
Height: 17mm
Cutting increments: 50mm
- 60 diodes/m

Mounting: Supplied with pre-applied 3M adhesive backing for quick and secure surface mounting. For optimal performance, install into an aluminium profile to enhance heat dissipation, extend LED lifespan, and ensure uniform light distribution.

Performance/ specifications:

Wattage: 9.6W/m
Voltage: DC24V
CRI: ≥ 80
CCT: RGBW (W = 4700K)
MacAdams: ≤ 3 Step
IP Rating: 67
UV resistant
IK08
RGBW: 4CO/LDC/ASTRO/RGB-W4.7K
Note: Unit requires a 24V LED driver for operation

Additional features:

Flexi Mount: Astro (S-Bend) Flexi mount No
Alu Profile(1m): Astro (S-Bend) Profile Si
Mounting Clips: Astro (S-Bend) Mount clip No

Warranty:

3 Year (Strip) / 5 Year (Control Gear)
(T’s and C’s apply)
