Saturn Dome LED Bulkhead (11-16W)

Datasheet Download

IES Files on request

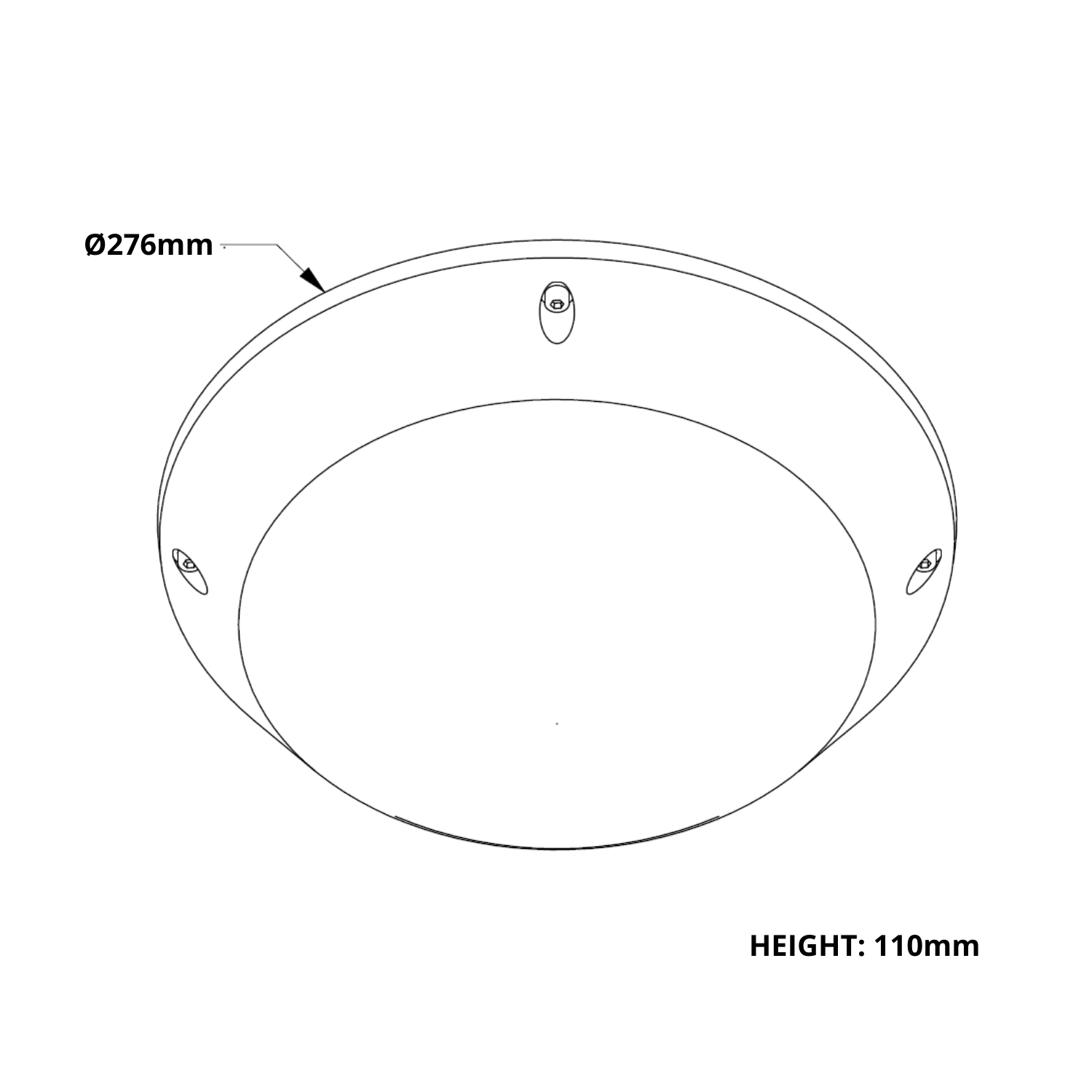

Mounting/Dimensions:

Surface Mounted
Height: 110mm
Diameter: 276mm

Performance/ specifications:

Nominal Wattage: 11 - 16W
Nominal Lumens: 1,740 - 2,620lm
System Wattage: 13 - 18W
System Lumens: 1,210 - 1,835lm
CRI: ≥ 80
CCT: 3000K / 4000K
MacAdams: ≤ 4 Step
Distributions: Diffused
IP: 65

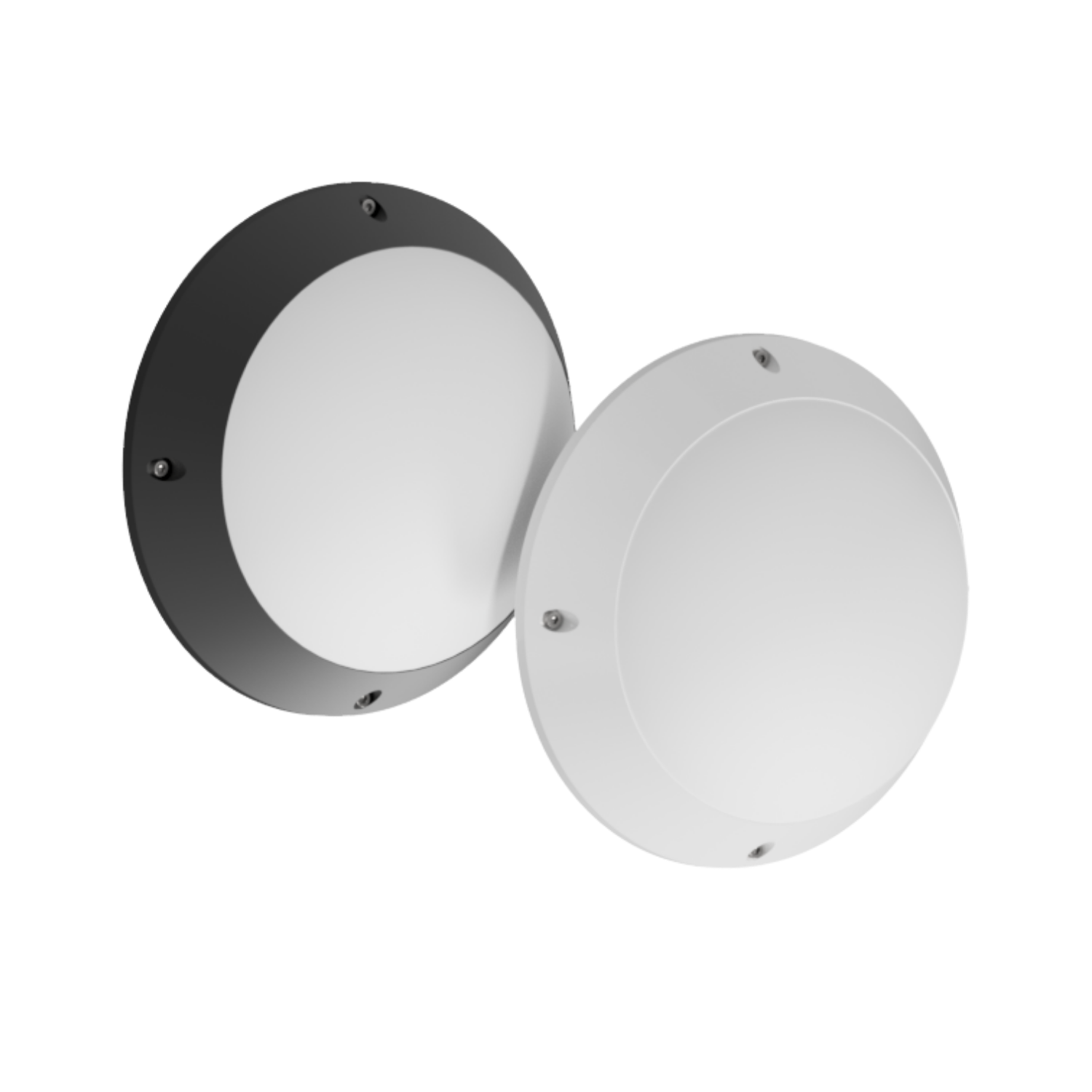

Finnish Options:

White
Black
Other

Additional Features:

Emergency: Integrated 3hr EME kit
Control: DALI
Warranty: 5 Year (T’s & C’s apply)
