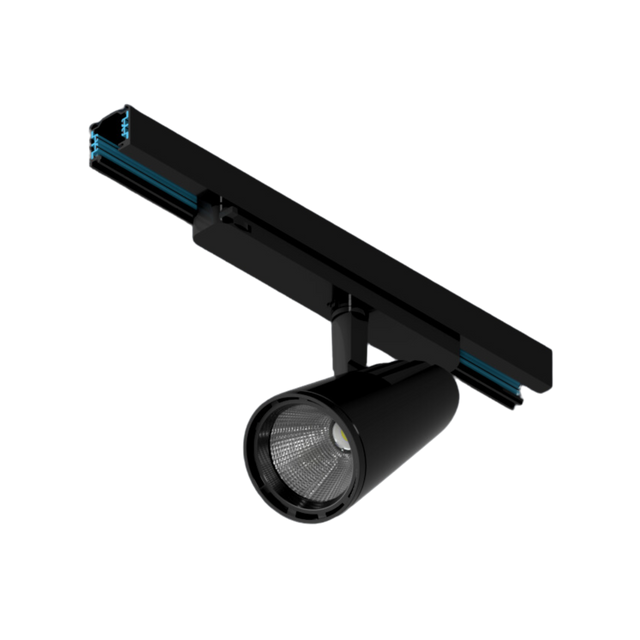

Linq LED Track Spotlight (17-36W)

Datasheet Download

IES Files on request

Mounting/Dimensions:

Track (4wire)
Surface (Cup)
See line drawing & data sheet for dimensions

Performance/ Specifications:

Nominal Wattage: 17W - 36W
System Wattage: 18W - 41W
Nominal Lumens: 2,730 - 5,605lm
System Lumens: 2,180 - 4,485lm
CRI: ≥ 80 / ≥ 90 / Other
CCT (Correlated Colour Temperature): 3000K / 3500K / 4000K / Other
MacAdam Steps: ≤ 3 Step
Distributions: 18° / 24° / 36° / 45° / 60°
IP Rating: IP20
Lumen Maintenance: L80/B10 @ 50 000hrs

Finish Options:

White
Black

Additional Features:

Emergency: 3hr available on request
Control Options: Available on request
Warranty: 5 Years
T’s and C’s apply
